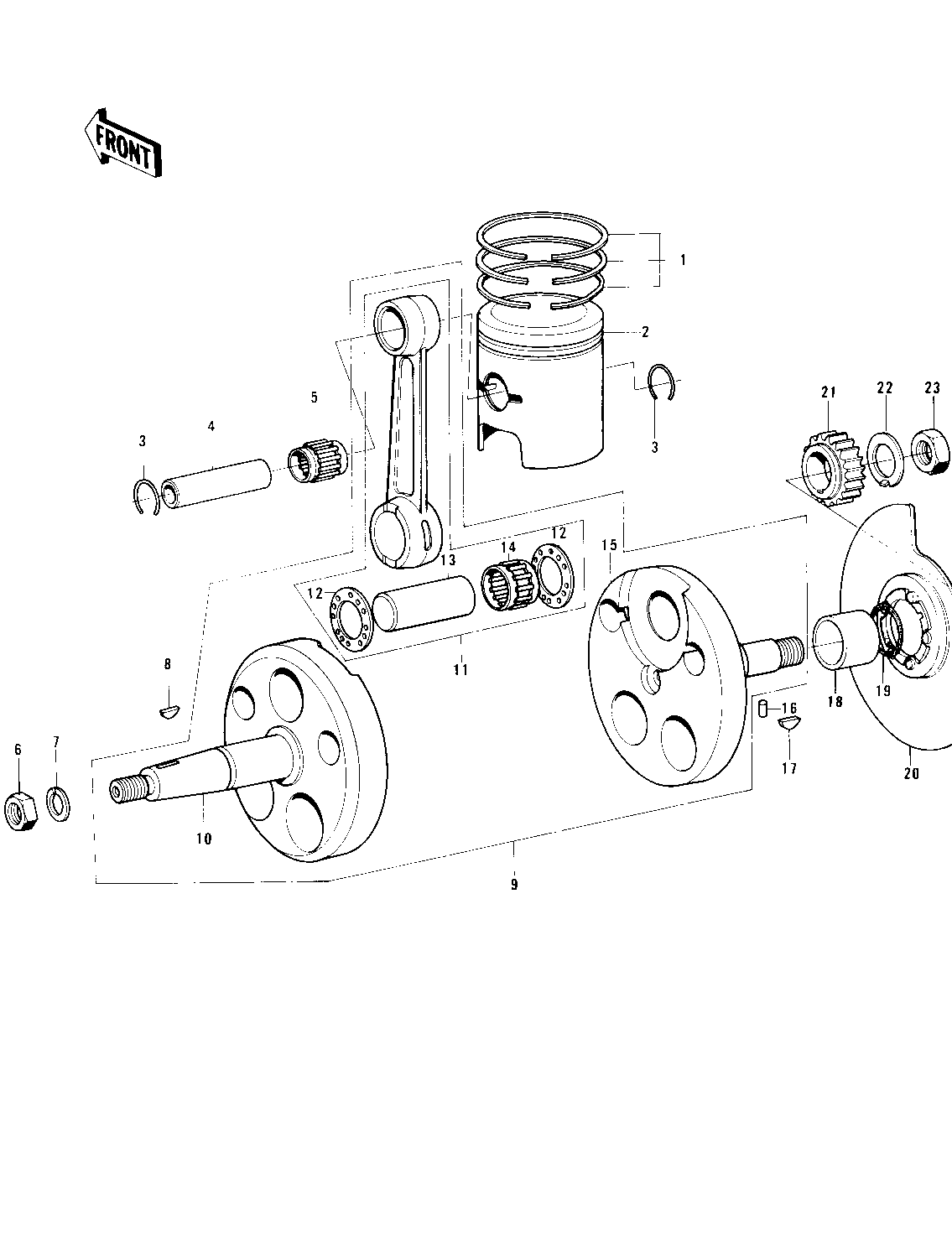

1974 KS125 - CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-050 | 1 | ||
| PISTON,STD | 2 | 13001-072 | 1 | ||
| CIRCLIP PISTON PIN | 3 | 92036-003 | 2 | ||
| PIN-PISTON | 4 | 13002-1002 | 1 | ||
| BRG,N,UR14/20AP-1 | 5 | 13033-035 | 1 | PQKBK141819 8X | |
| NUT,10MM | 6 | 314B1000 | 1 | ||
| WASHER SPRING 10MM | 7 | 461F1000 | 1 | ||
| WOODRUFF KEY | 8 | 510A3200 | 1 | ||
| CRANK AND CONROD ASSY | 9 | 13031-1003 | 1 | ||
| CRANKSHAFT,L.H | 10 | 13037-059 | 1 | ||
| CONNECTING ROD SET | 11 | 13044-5003 | 1 | ||
| WASHER SIDE | 12 | 92025-005 | 2 | ||
| CRANK PIN | 13 | 13035-033 | 1 | ||
| BRG,NEEDLE,KT202715EG | 14 | 13034-1001 | 1 | 72KT064 | |
| CRANKSHAFT,R.H. | 15 | 13037-1084 | 1 | ||
| PIN DOWEL 4X10 | 16 | 610A0410 | 1 | ||
| WOODRUFF KEY PRY PINI | 17 | 92038-003 | 1 | ||
| COLLAR,R.H CRANKSHAFT | 18 | 92027-220 | 1 | ||
| "0" RING,16MM | 19 | 670B2016 | 1 | ||
| VALVE,ROTARY DISC | 20 | 12001-025 | 1 | ||
| GEAR,PRIMARY 22T | 21 | 13097-1040 | 1 | 22T | |
| WASHER LOCK 12MM | 22 | 92024-003 | 1 | ||
| NUT 12MM | 23 | 92015-006 | 1 |
