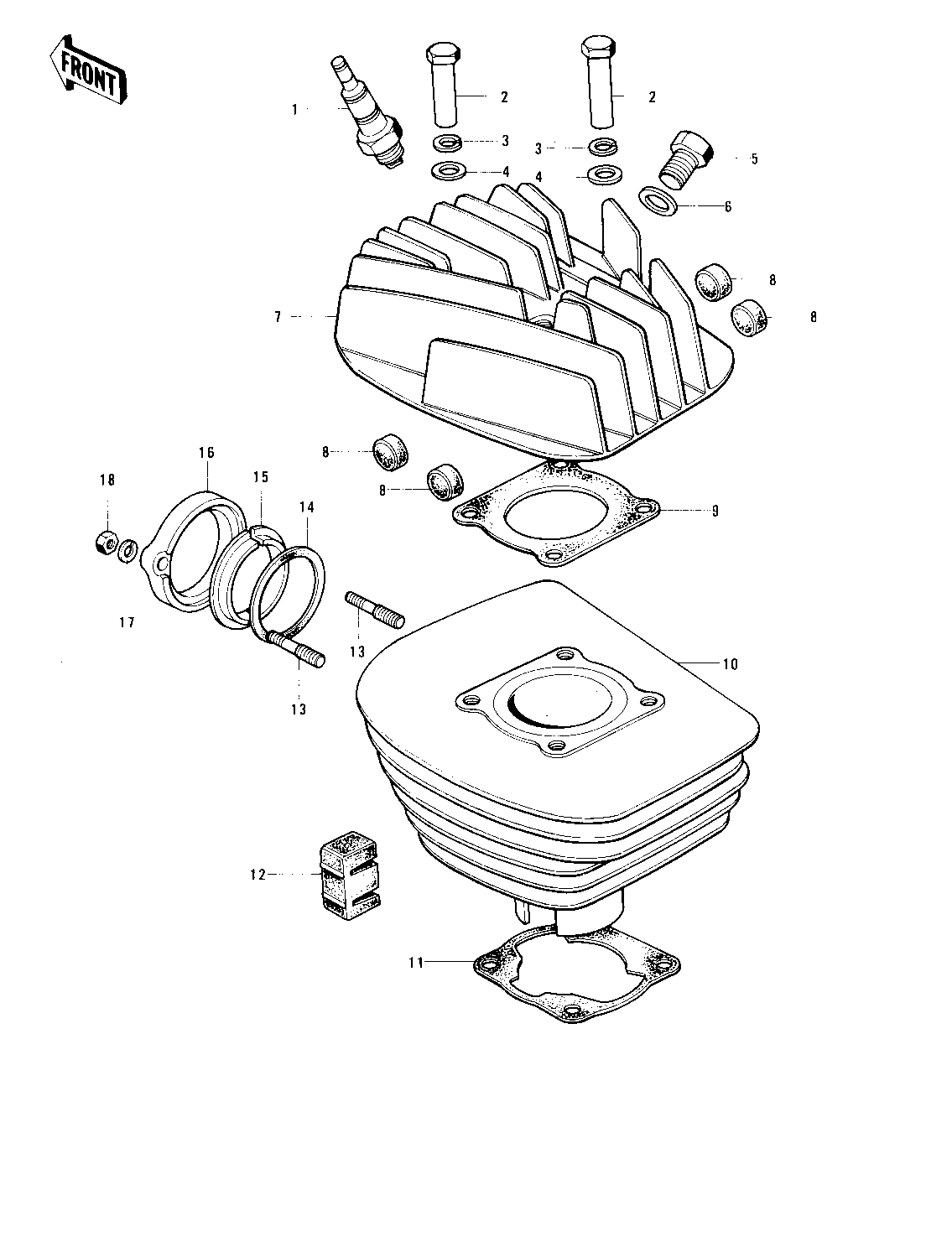

1974 KS125 - CYLINDER HEAD/CYLINDER ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPARK PLUGS B8HC | 1 | 92070-010 | 1 | ||
| NUT 8MM | 2 | 92015-020 | 4 | ||
| WASHER SPRING 12MM | 3 | 461F1200 | 4 | ||
| WASHER PLAIN 12MM | 4 | 92022-072 | 4 | ||
| PLUG-CYLINDER HEAD | 5 | 92067-005 | 1 | ||
| GASKET-CYL HEAD PLUG | 6 | 92065-068 | 1 | ||
| CYLINDER HEAD,BLACK | 7 | 11001-091-21 | 1 | FLAT BLACK | |
| DAMPER RUBBER | 8 | 92075-075 | 9 | ||
| GASKET,CYLINDER HEAD | 9 | 11004-064 | 1 | ||
| CYLINDER,F.BLACK | 10 | 11005-1030 | 1 | FLAT BLACK | |
| GASKET,CYLINDER BASE | 11 | 11009-037 | 1 | ||
| DAMPER RUBBER,CYLNDR | 12 | 92075-247 | 4 | ||
| STUD | 13 | 92004-029 | 2 | ||
| GASKET EXHAUST PIPE | 14 | 18067-008 | 1 | ||
| INSERT,EXHAUST HOLDER | 15 | 18070-007 | 1 | ||
| HOLDER,EXHAUST PIPE | 16 | 18069-057 | 1 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
| NUT 6MM | 18 | 311B0600 | 2 |
