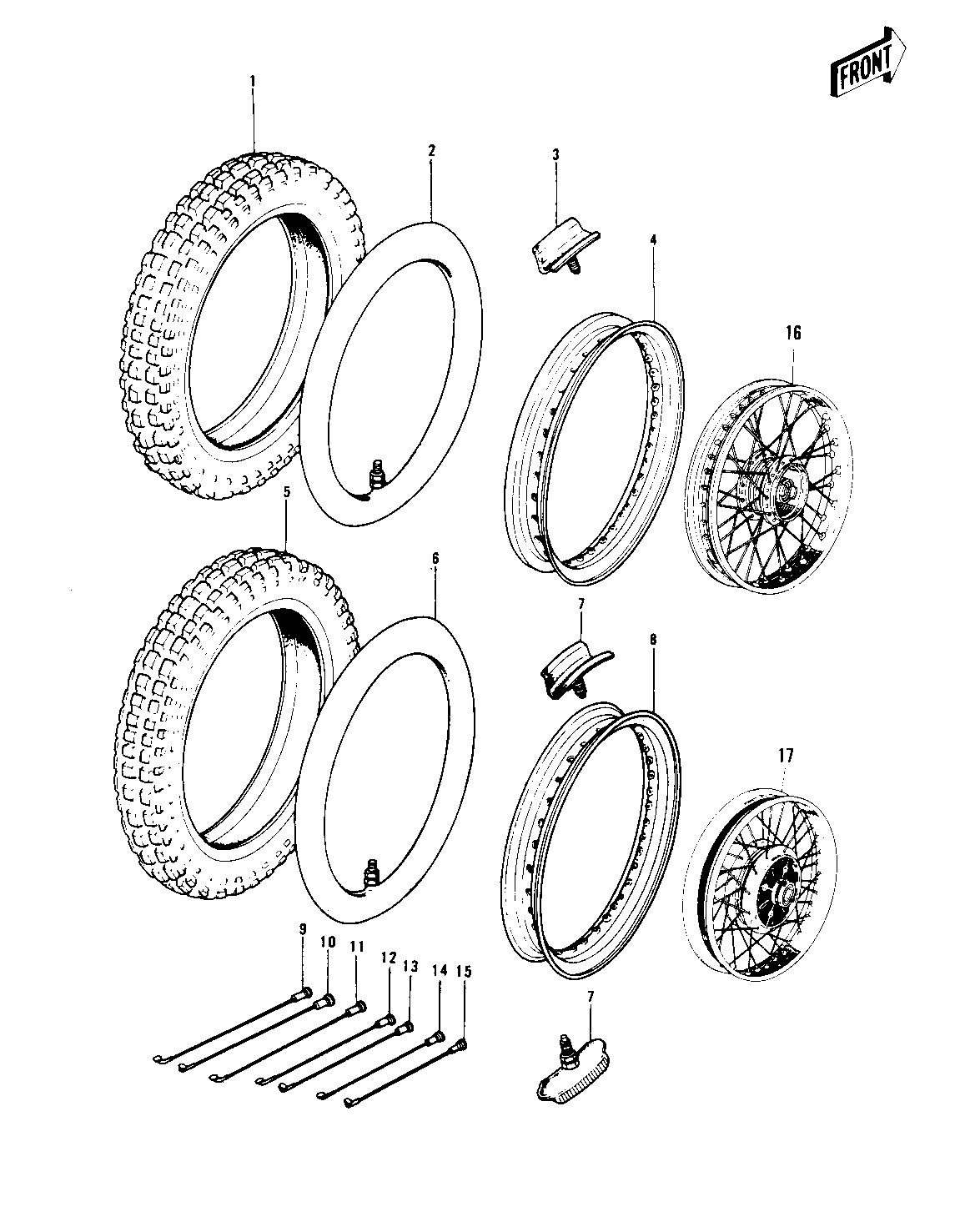

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-21 Y965 F | 1 | 41002-1215 | |||
| *** N.L.A.*** (Canada) | 2 | 41022-025 | KD125/A2/A3/A4 | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | KD125-A5 | ||
| PROTECTOR,BEAD 1.60A | 3 | 41024-010 | |||
| RIM,1.60AX21E | 4 | 41025-076 | |||
| TIRE 350-18 Y962 R | 5 | 41002-1216 | KD125/A2/A3/A4 | ||
| TIRE 350-18 Y962 R | 5 | 41002-1216 | KD125-A5 | ||
| *** N.L.A.*** (Canada) | 6 | 41022-027 | KD125/A2/A3/A4 | ||
| TUBE 350/375/410-18 | 6 | 41022-031 | KD125-A5 | ||
| PROTECTOR,BEAD,1.85B | 7 | 41024-011 | |||
| RIM,1.85BX18E | 8 | 41025-077 | |||
| SPOKE-ASY,FR INNER | 9 | 41027-068 | 98.3 X 227 MM | ||
| SPOKE-ASY FR OUTER | 10 | 41028-068 | 85.3 X 227 MM | ||
| SPOKE-ASY,FR | 11 | 41027-069 | 90 X 239.5 MM | ||
| SPOKE-ASY,RR INNER L | 12 | 41027-070 | 106 X 171 MM | ||
| SPOKE-ASY RR OUTER L | 13 | 41028-069 | 80 X 170 MM | ||
| SPOKE-ASY,RR INNER R | 14 | 41027-071 | 108 X 167.5 MM | ||
| SPOKE-ASY RR OUTER R | 15 | 41028-070 | 80 X 166.5 MM | ||
| WHEEL ASSY,FRONT | 16 | 41074-052 | |||
| WHEEL ASSY,REAR | 17 | 42048-040 |
| TIRE 275-21 Y965 F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125/A2/A3/A4 |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125-A5 |
| PROTECTOR,BEAD 1.60A | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.60AX21E | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TIRE 350-18 Y962 R | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125/A2/A3/A4 |
| TIRE 350-18 Y962 R | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125-A5 |
| *** N.L.A.*** (Canada) | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125/A2/A3/A4 |
| TUBE 350/375/410-18 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KD125-A5 |
| PROTECTOR,BEAD,1.85B | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.85BX18E | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 98.3 X 227 MM |
| SPOKE-ASY FR OUTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 85.3 X 227 MM |
| SPOKE-ASY,FR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 90 X 239.5 MM |
| SPOKE-ASY,RR INNER L | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 106 X 171 MM |
| SPOKE-ASY RR OUTER L | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 80 X 170 MM |
| SPOKE-ASY,RR INNER R | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 108 X 167.5 MM |
| SPOKE-ASY RR OUTER R | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 80 X 166.5 MM |
| WHEEL ASSY,FRONT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WHEEL ASSY,REAR | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
