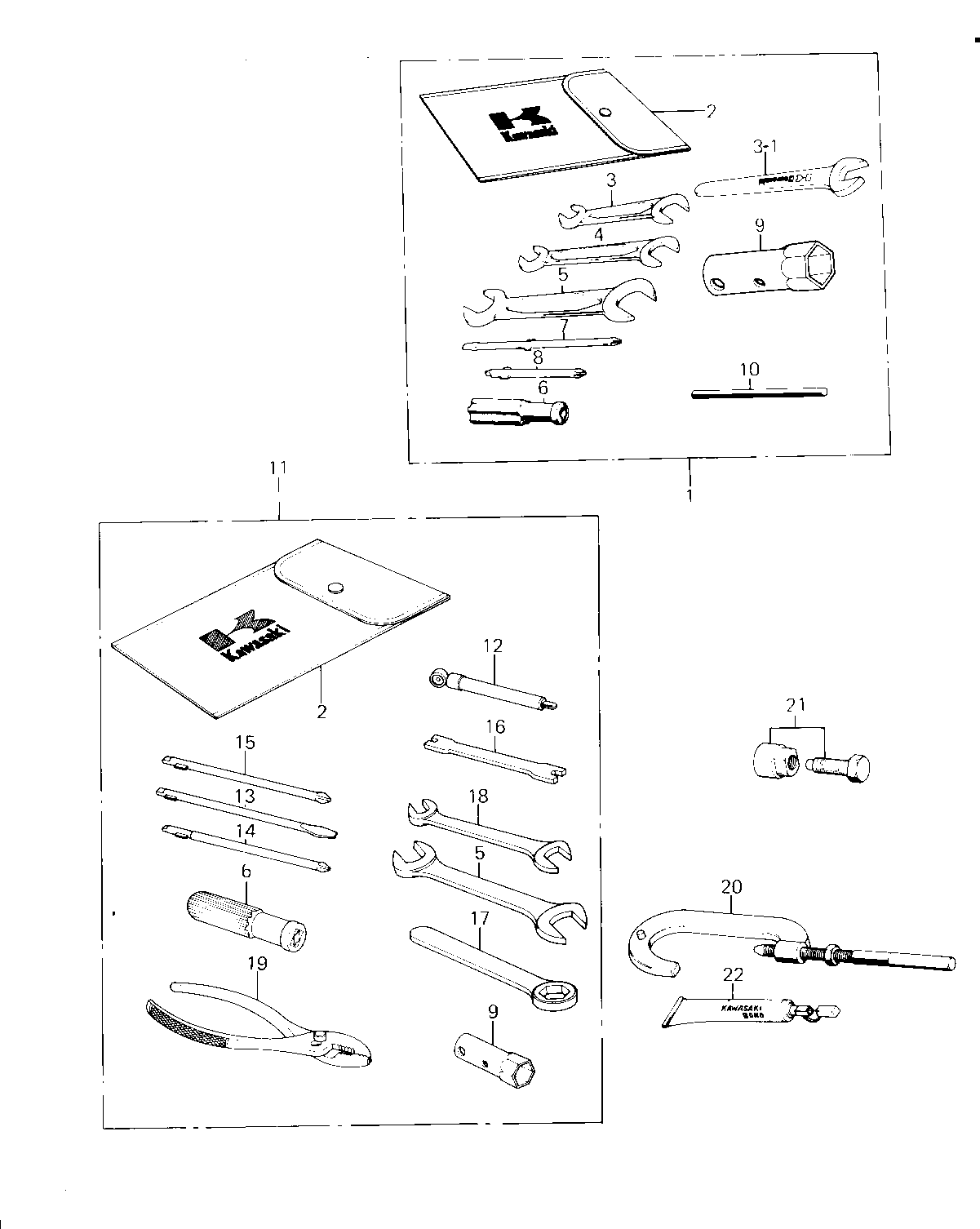

1976 KM100-A1 - OWNER TOOLS/SPECIAL SERVICE TOOLS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| *** N.L.A.*** (Canada) | 1 | 56007-035 | 1 | WHN EXH USE 56007-1003 | |
| *** N.L.A.*** (Canada) | 1 | 56007-1003 | 1 | KM100-A1/A2/A3/A3A/A4 | |
| TOOL KIT | 1 | 56007-1046 | 1 | KM100-A6 | |
| BAG,TOOL | 2 | 56008-008 | 1 | ||
| BAG,TOOL | 2 | 56008-1007 | 1 | ||
| BAG,TOOL | 2 | 56008-008 | 1 | USE FOR 56007-1046 | |
| WRENCH,OPEN,8X10 | 3 | 92126-001 | 1 | ||
| 92110-1031 (Canada) | 3-1 | 92110-1030 | 1 | USE FOR 56007-1046 | |
| WRENCH,OPEN END,12X13 | 4 | 92126-002 | 1 | ||
| TOOL-WRENCH,OPEN END, | 5 | 92110-1153 | 1 | ||
| TOOL-WRENCH,OPEN END, | 5 | 92110-1153 | 2 | USE FOR 56007-1046 | |
| 92106-1001 (Canada) | 6 | 92106-002 | 1 | ||
| GRIP,SCREW DRIVER | 6 | 92106-1001 | 1 | ||
| TOOL-DRIVER | 7 | 92107-1052 | 1 | ||
| SCREW DRIVER #3 PHLIP | 8 | 92107-005 | 1 | ||
| WRENCH,BOX,17X21 | 9 | 92110-012 | 1 | ||
| 92111-005 (Canada) | 10 | 92111-007 | 1 | USE FOR 56007-035 | |
| TOOL KIT | 11 | 56007-1072 | 1 | ||
| GAUGE,AIR,3.5KG/CM2 | 12 | 52005-1031 | 1 | ||
| 92107-1052 (Canada) | 13 | 92107-007 | 1 | ||
| TOOL-DRIVER | 14 | 92107-1052 | 1 | ||
| 92107-1002 (Canada) | 15 | 92107-008 | 1 | ||
| TIGHTENER,SPOKE | 16 | 92108-011 | 1 | ||
| TOOL-WRENCH,BOX END,2 | 17 | 92110-1148 | 1 | ||
| TOOL-WRENCH,OPEN END | 18 | 92110-1038 | 1 | ||
| PLIERS,160MM | 19 | 92112-003 | 1 | ||
| 57001-1243 (Canada) | 20 | 56019-040 | (1 | SPECIAL TOOLS | |
| 57001-252 (Canada) | 21 | 56019-033 | (1 | SPECIAL TOOLS | |
| LIQUID GASKET | 22 | 92104-002 | (1 |
