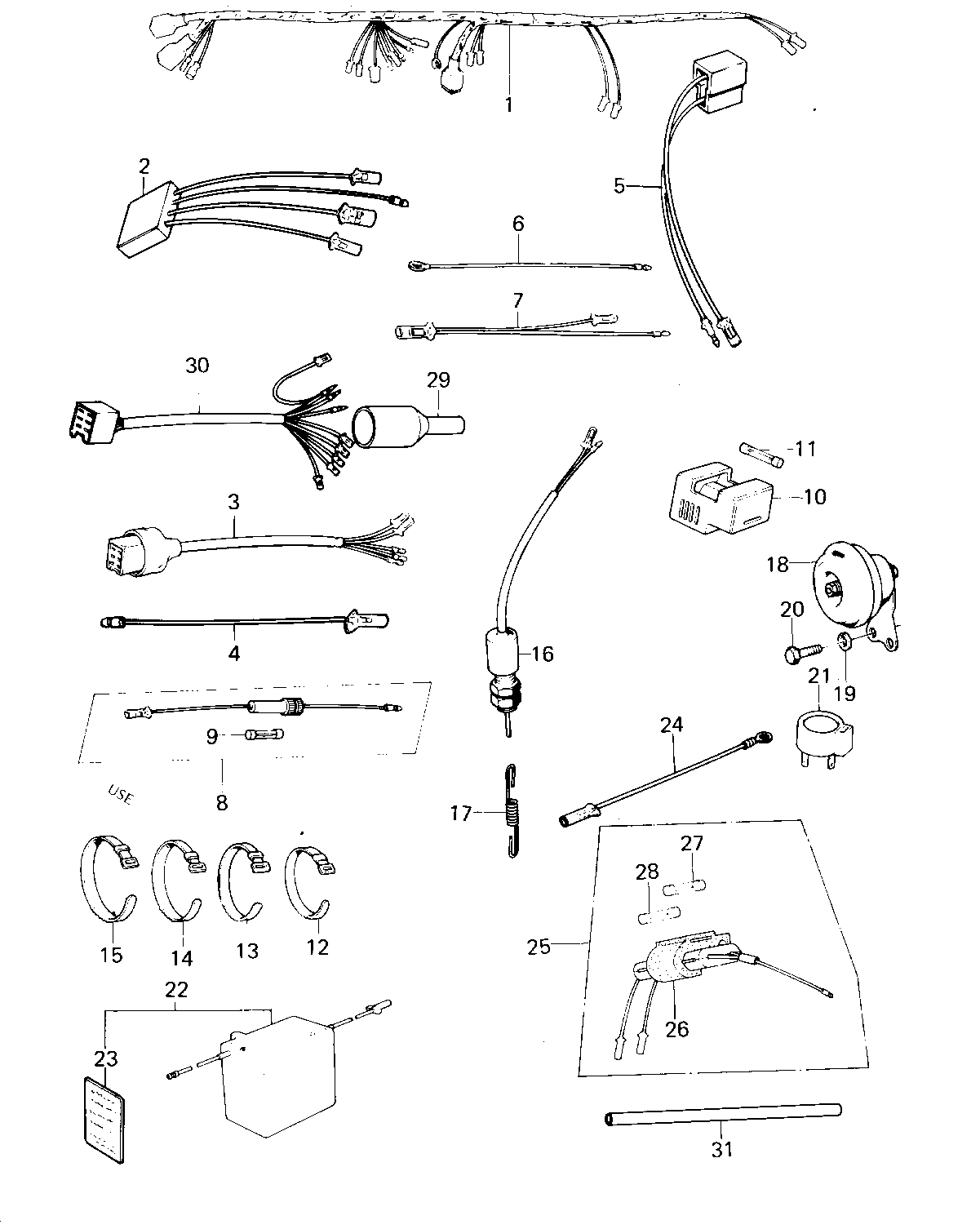

1976 KM100-A1 - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS,MAIN 1 26001-118 1 KM100-A1/A2/A3/A3A
WIRING HARNESS MAIN 1 26001-1067 1 KM100-A4
WIRING HARNESS,MAIN 1 26001-1108 1 KM100-A6~
WIRING HARNESS,REAR 2 26002-056 1 KM100-A1/A2/A3/A3A
WIRE,LEAD 3 26011-1042 1 KM100-A1/A2/A3/A3A
WIRE,LEAD 3 26011-1042 1 KM100-A4
WIRE,LEAD 4 26011-094 1 KM100-A1/A2/A3
WIRE,RECTIFIER LEAD 5 26011-074 1 KM100-A1/A2/A3/A3A
LEAD WIRE,SIGNAL LAMP 6 26011-063 1 KM100-A1/A2/A3
LEAD WIRE 7 26011-042 1 KM100-A1/A2/A3/A3A
FUSE ASSY 8 26004-017 1 KM100-A1/A2/A3/A3A
FUSE 10A 9 26006-003 1 KM100-A1/A2/A3/A3A
HOLDER,SPARE FUSE 10 26016-003 1 KM100-A1/A2/A3/A3A
FUSE 10A 11 26006-003 1 KM100-A1/A2/A3/A3A
BAND,SHORT 12 92072-030 5 L = 123 M/M
BAND,MIDDLE 13 92072-031 2 L = 149 M/M
BAND,WIRING HARNESS 14 92072-056 2 L = 186 M/M
BAND,LONG 15 92072-032 1 L = 218 M/M
SWITCH-BRAKE LAMP 16 27010-015 1 KM100-A1/A2/A3/A3A/A4
SWITCH,BRAKE LIGHT 16 27010-025 1 KM100-A6~
SPRING-BRAKE LAMP SW 17 27011-011 1
HORN 18 27003-073 1 KM100-A1/A2/A3/A3A/A4
HORN 18 27003-060 1 KM100-A6~
WASHER SPRING 6MM 19 461F0600 2
BOLT,6X10 20 112G0610 2
RELAY-TURN SIGNAL 21 27002-013 1
YUA BAT 6N4-2A-5 22 K26012-020 1 KM100-A1/A2/A3/A3A
YUA BAT 6N6-1D-2 22 K26012-034 1 KM100-A4
YUA BAT 6N6-1D-2 22 K26012-034 1 KM100-A6~
LABEL-WARNING,BATTERY 23 56040-1036 1
WIRE,LEAD 24 26011-093 1 KM100-A4~
FUSE ASSY 25 26004-1010 1 KM100-A4~
DAMPER RUBBER 26 92075-1044 1 KM100-A4~
FUSE,10A,L=30M/M 27 26006-1002 1 KM100-A4~
FUSE,15A,L=30M/M 28 26006-1003 2 KM100-A4~
COVER,REAR HARNESS 29 14025-1183 1 KM100-A6~
WIRE,LEAD 30 26011-1061 1 KM100-A6~
TUBE,P.V.C,8X9X200 31 92059-1150 3
