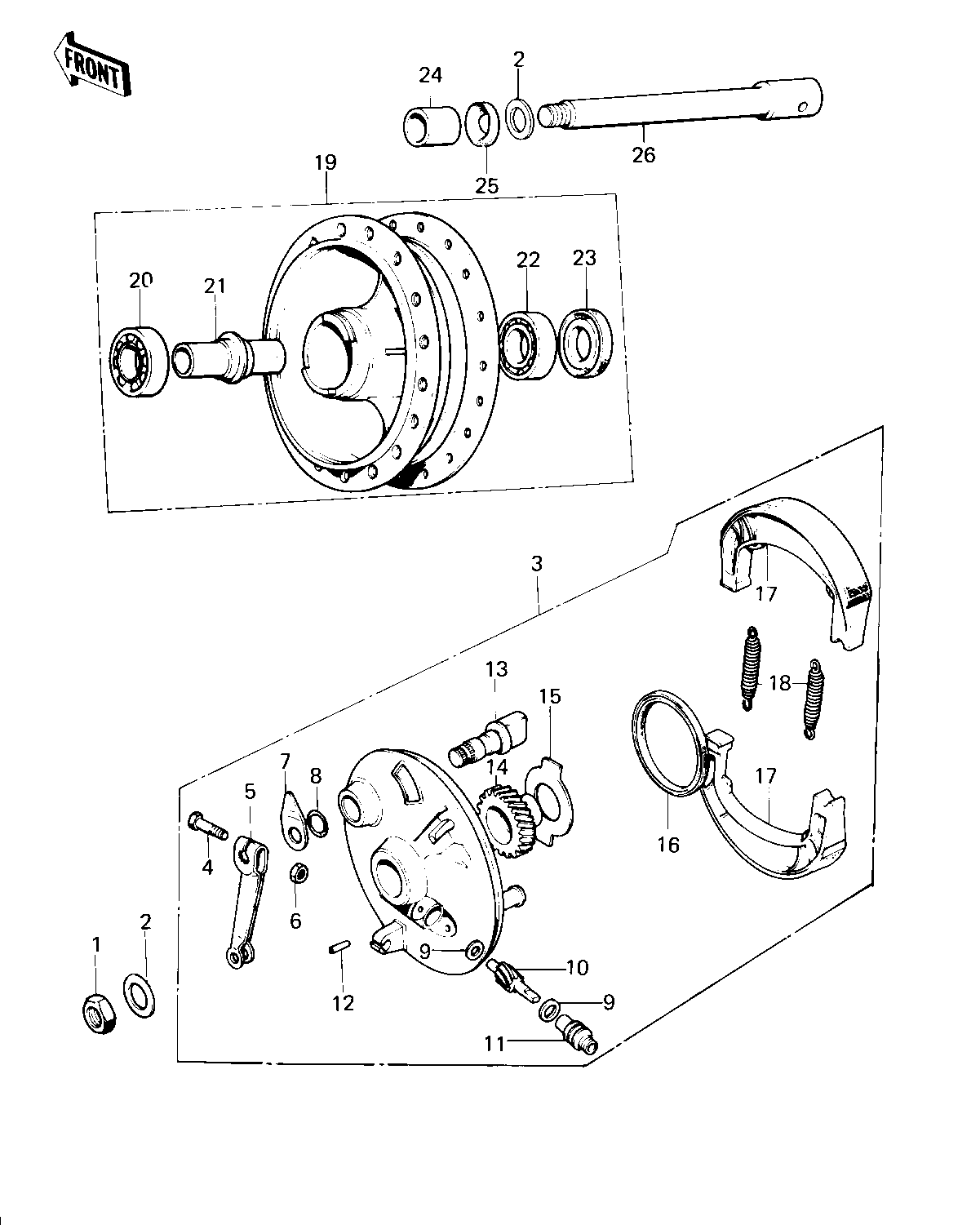

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 10MM | 1 | 42045-005 | 1 | ||
| WASHER PLAIN 10MM | 2 | 411B1000 | 2 | ||
| PANEL-ASY,FR BRK | 3 | 41035-1027 | 1 | WHN EXH USE 41035-1027 | |
| PANEL-ASY,FR BRK | 3 | 41035-1027 | 1 | KM100-A6~ | |
| BOLT-UPSET | 4 | 112G0630 | 1 | ||
| LEVER FRONT BRAKE CAM | 5 | 41053-005 | 1 | ||
| NUT,6MM | 6 | 41072-007 | 1 | ||
| INDICATOR,FR BK SHOE | 7 | 41085-013 | 1 | ||
| "0" RING,11MM | 8 | 92055-004 | 1 | ||
| WASHER THRST SPD PINI | 9 | 41063-001 | 2 | ||
| PINION-SPEEDOMETER | 10 | 41060-014 | 1 | ||
| BUSH,SPEEDMETER CABLE | 11 | 41062-005 | 1 | ||
| PIN,SPRING | 12 | 41082-001 | 1 | ||
| CAM SHAFT-FRONT BRAKE | 13 | 41050-018 | 1 | ||
| GEAR,SPEEDOMETER | 14 | 41060-1026 | 1 | ||
| GEAR,SPEEDOMETER | 14 | 41060-1026 | 1 | ||
| RECEIVER,SPEED GEAR | 15 | 41064-010 | 1 | ||
| OIL SEAL BRAKE PANEL | 16 | 92050-002 | 1 | ||
| SHOE-BRAKE | 17 | 41048-1085 | 2 | ||
| SPRING,BRAKE SHOE | 18 | 92081-1766 | 2 | ||
| DRUM-ASSY,FR BRK | 19 | 41034-1040 | 1 | ||
| BEARING BALL #6300Z | 20 | 601B6300Z | 1 | ||
| SPACER FRONT HUB | 21 | 41039-002 | 1 | ||
| BEARING BALL #6200 | 22 | 601B6200 | 1 | ||
| OIL SEAL,TC17317 | 23 | 92050-063 | 1 | ||
| COLLAR,FRONT AXLE | 24 | 41069-026 | 1 | ||
| DUST SHIELD FRNT DRUM | 25 | 41042-002 | 1 | NOT USE FOR KM100-A3A~ | |
| AXLE-FRONT | 26 | 41068-039 | 1 |
