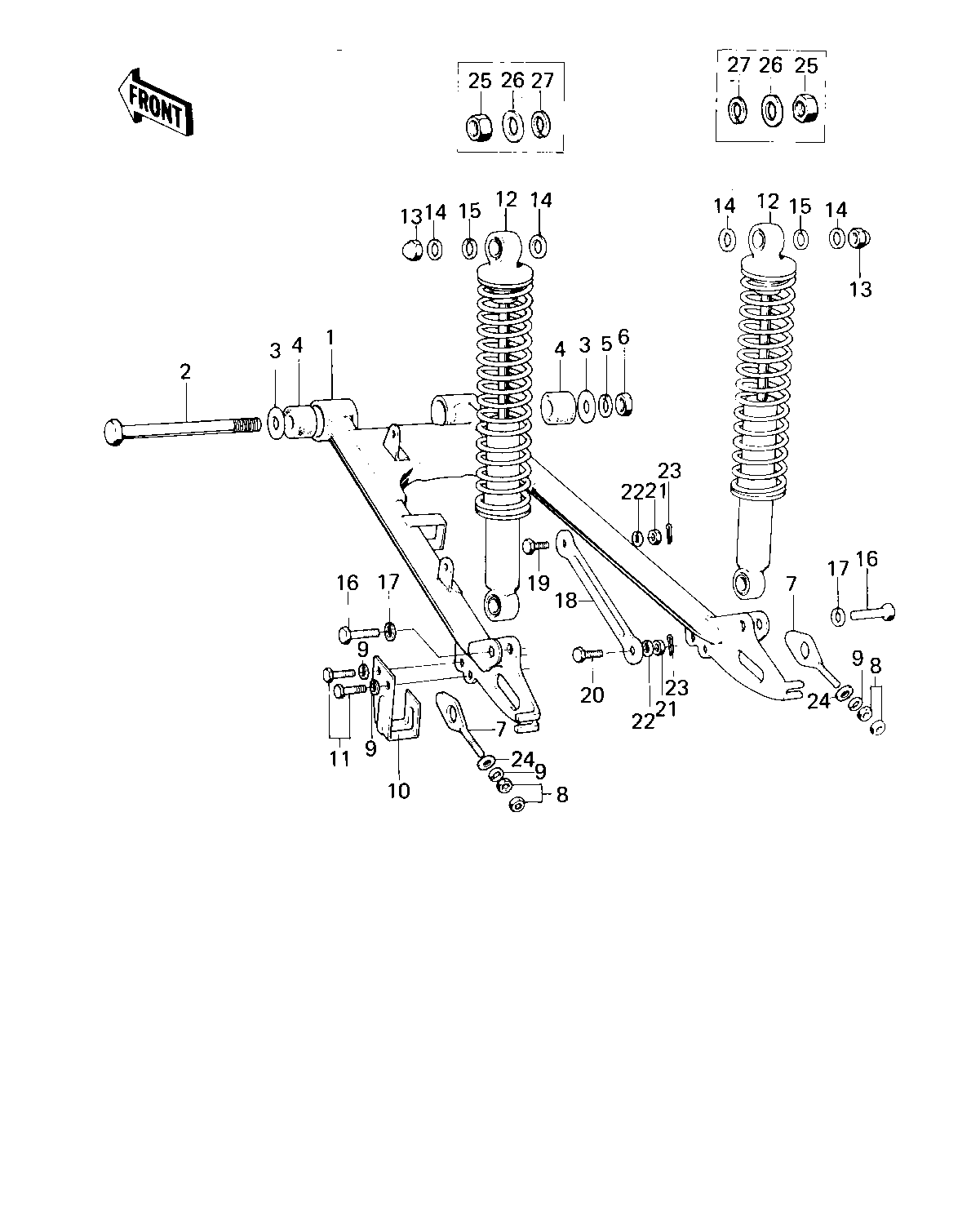

1976 KM100-A1 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM,SWINGING 1 33001-055 1 KM100-A1/A2/A3/A3A/A4
ARM,SWINGING 1 33001-1045 1 KM100-A6~
SHAFT,SWING ARM PIVOT 2 33032-043 1
WASHER PLAIN 12MM 3 410B1200 2
BUSH SWING ARM SHAFT 4 92092-005 2
WASHER SPRING 12MM 5 461F1200 1
NUT-HEX-FINE 6 314B1200 1
ADJUSTER CHAIN 7 33040-008 2
NUT 6MM 8 311B0600 4
WASHER SPRING 6MM 9 461F0600 4
GUARD,CHAIN 10 55020-012 1
BOLT-UPSET 6X14 11 112B0614 2
SHOCK ABSBR RR 12 45014-100 2 KM100-A1/A2
SHOCK ABSBR RR 12 45014-1019 2 KM100-A3/A3A/A4
SHOCKABSORBER 12 45014-1214 2 KM100-A6~
NUT 12MM 13 92020-014 2 KM100-A1/A2/A3/A3A/A4
WASHER PLAIN 12MM 14 410B1200 4 KM100-A1/A2/A3/A3A/A4
WASHER SPRING 12MM 15 461F1200 2 KM100-A1/A2/A3/A3A/A4
BOLT HEX HEAD 10X28 16 113N1028 2 KM100-A1/A2/A3/A3A/A4
BOLT-UPSET,10X30 16 112G1030 2 KM100-A6~
WASHER SPRING 10MM 17 461F1000 2
TORQUE LINK,RR BRAKE 18 43007-037 1
BOLT TORQUE LINK FIT 19 92003-017 1
BOLT HEX HEAD 10X25 20 92003-003 1
NUT,10MM 21 314B1000 2
WASHER SPRING 10MM 22 461F1000 2
PIN COTTER 2.0X15 23 550D2015 2 KM100-A1/A2/A3/A3A
PIN COTTER 23 92041-005 2 KM100-A4~
WASHER, PLAIN 24 92022-116 2 KM100-A3~
NUT-HEX-FINE,12MM 25 315B1200 2 KM100-A6~
WASHER PLAIN 12MM 26 410B1200 2 KM100-A6~
WASHER SPRING 12MM 27 461F1200 2 KM100-A6~
