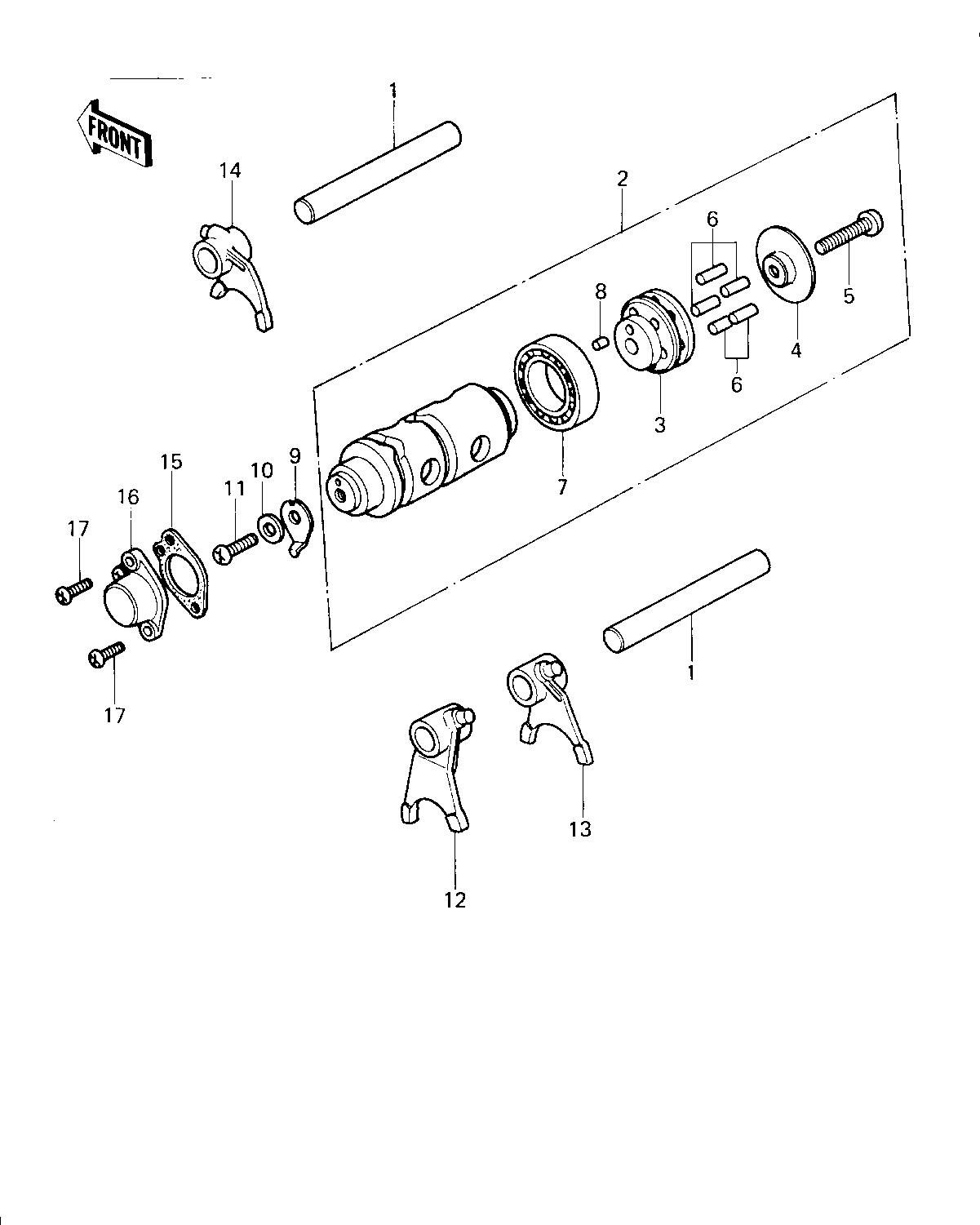

1976 KM100-A1 - GEAR CHANGE DRUM & FORKS (KM100-A6/A7)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON 0.020' O.S | 1 | 13029-014 | 2 | L = 80 M/M | |
| DRUM-ASSY-CHANGE | 2 | 13239-5001 | 1 | ||
| DRUM ASSY,GEAR CHANGE | 2 | 13239-1034 | 1 | E/NO. 027926~ | |
| HOLDER,GEAR CHANG DRM | 3 | 13091-1059 | 1 | ||
| HOLDER | 3 | 13091-1077 | 1 | USE FOR 13239-1034 | |
| PLATE CHANGE DRUM PIN | 4 | 13142-008 | 1 | ||
| HOLDER,CHANGE DRUM | 4 | 13142-014 | 1 | USE FOR 13239-1034 | |
| SCREW PAN HEAD 6X30 | 5 | 220B0630 | 1 | ||
| BOLT,SOCKET,6X30 | 5 | 120P0630 | 1 | USE FOR 13239-1034 | |
| PIN,GEAR CHANGE DRUM | 6 | 92042-042 | 5 | ||
| BEARING,BALL,#6905 | 7 | 92045-036 | 1 | ||
| BEARING BALL #6004 | 7 | 601B6004 | 1 | USE FOR 13239-1034 | |
| PIN-DOWEL,4X6 | 8 | 610A0406 | 1 | ||
| ROTOR,NEUTRAL INDICTR | 9 | 21007-1003 | 1 | ||
| WASHER PLAIN 6MM | 10 | 410B0600 | 1 | ||
| SCREW PAN HEAD 6X16 | 11 | 220B0616 | 1 | ||
| SHIFT FORK,LOW&2ND | 12 | 13140-1026 | 1 | ||
| SHIFT FORK,3RD | 13 | 13140-1027 | 1 | ||
| SHIFT FORK,4TH&TOP | 14 | 13140-1028 | 1 | ||
| GASKET NEUTRAL SWITCH | 15 | 13146-002 | 1 | ||
| SWITCH,NEUTRAL | 16 | 13151-1002 | 1 | ||
| SCREW PAN HEAD 6X16 | 17 | 220B0616 | 2 |
