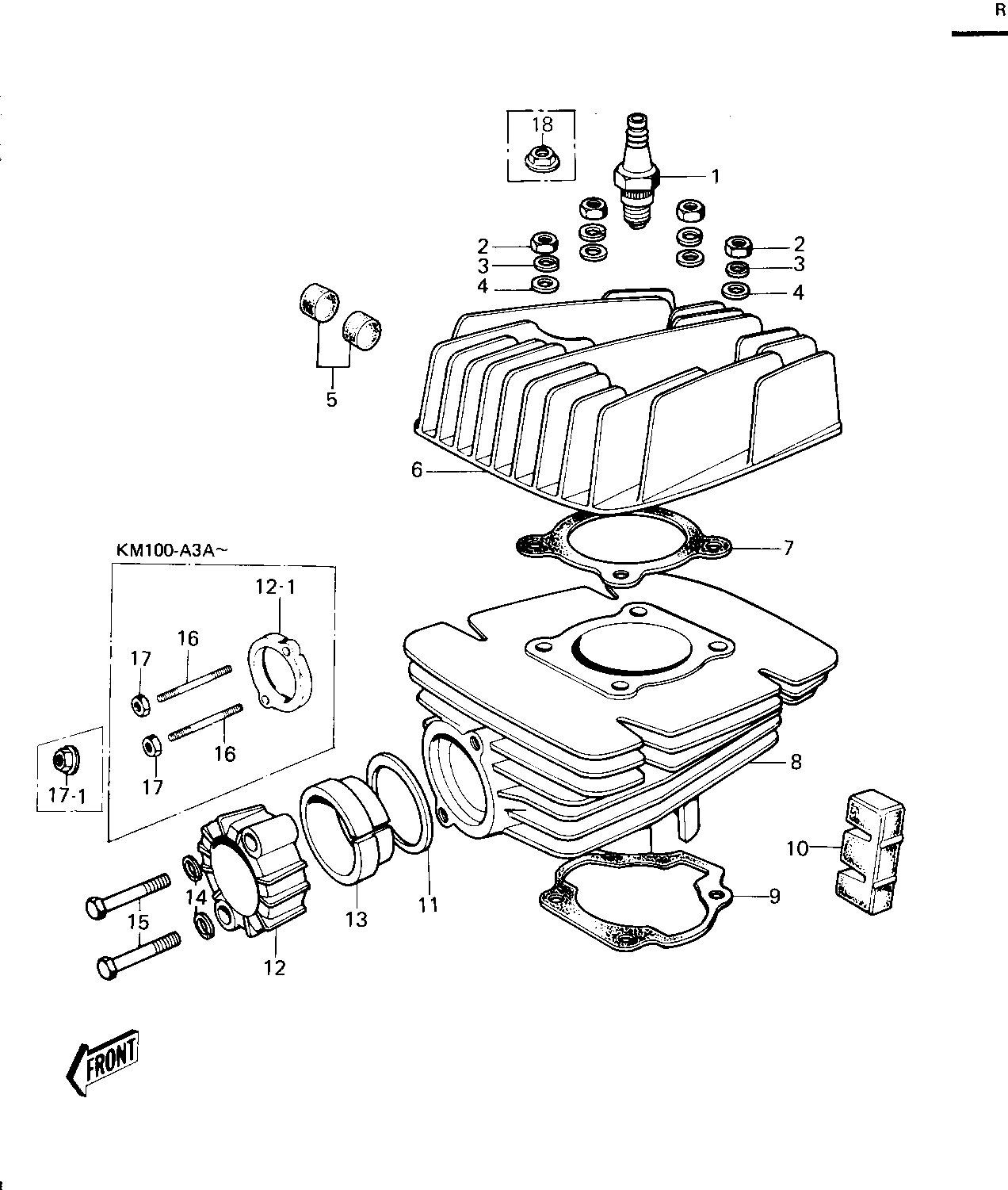

1976 KM100-A1 - CYLINDER HEAD/CYLINDER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPARK PLUG B7HS | 1 | B7HS | 1 | ||
| NUT,8M/M | 2 | 317B0800 | 4 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 4 | NOT USE FOR 92015-1022 | |
| WASHER PLAIN 8MM | 4 | 410B0800 | 4 | NOT USE FOR 92015-1022 | |
| DAMPER RUBBER-CYL HD | 5 | 92075-117 | 13 | ||
| CYLINDER HEAD | 5 | 11001-085 | 1 | KM100-A1/A2/A3/A3A/A4 | |
| CYLINDER HEAD | 5 | 11001-1026 | 1 | KM100-A6~ | |
| GASKET CYLINDER HEAD | 7 | 11004-033 | 1 | ||
| CYLINDER | 7 | 11005-155 | 1 | KM100-A1/A2/A3 | |
| CYLINDER,ELECTRO-FUSE | 7 | 11005-1007-21 | 1 | KM100-A3A~ | |
| GASKET,CYLINDER BASE | 9 | 11060-1200 | 1 | ||
| DAMPER RUBBER-CYLNDER | 10 | 92075-142 | 2 | ||
| GASKET,EXHAUST PIPE H | 11 | 11009-1866 | 1 | ||
| HOLDER,EX PIPE,BLACK | 12 | 18069-035-21 | 1 | KM100-A1/A2/A3 | |
| HOLDER,EXHAUST PIPE | 12-1 | 18069-1003-21 | 1 | KM100-A3A~ | |
| INSERT-EXHAUST HOLDER | 13 | 18070-005 | 1 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 2 | KM100-A1/A2/A3 | |
| BOLT-UPSET,6X35 | 15 | 112G0635 | 2 | KM100-A1/A2/A3 | |
| STUD | 16 | 92004-029 | 2 | KM100-A3A~ | |
| NUT,LOCK 6MM | 17 | 92017-014 | 2 | KM100-A3A/A4 | |
| NUT-6MM | 17-1 | 92015-1078 | 2 | KM100-A6~ | |
| NUT-8MM | 18 | 92015-1022 | 2 |
| SPARK PLUG B7HS | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | NOT USE FOR 92015-1022 |
| WASHER PLAIN 8MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | NOT USE FOR 92015-1022 |
| DAMPER RUBBER-CYL HD | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| CYLINDER HEAD | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A1/A2/A3/A3A/A4 |
| CYLINDER HEAD | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A6~ |
| GASKET CYLINDER HEAD | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A1/A2/A3 |
| CYLINDER,ELECTRO-FUSE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A3A~ |
| GASKET,CYLINDER BASE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-CYLNDER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE H | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,EX PIPE,BLACK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A1/A2/A3 |
| HOLDER,EXHAUST PIPE | |
| REF # | 12-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KM100-A3A~ |
| INSERT-EXHAUST HOLDER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KM100-A1/A2/A3 |
| BOLT-UPSET,6X35 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KM100-A1/A2/A3 |
| STUD | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KM100-A3A~ |
| NUT,LOCK 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KM100-A3A/A4 |
| NUT-6MM | |
| REF # | 17-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KM100-A6~ |
| NUT-8MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
