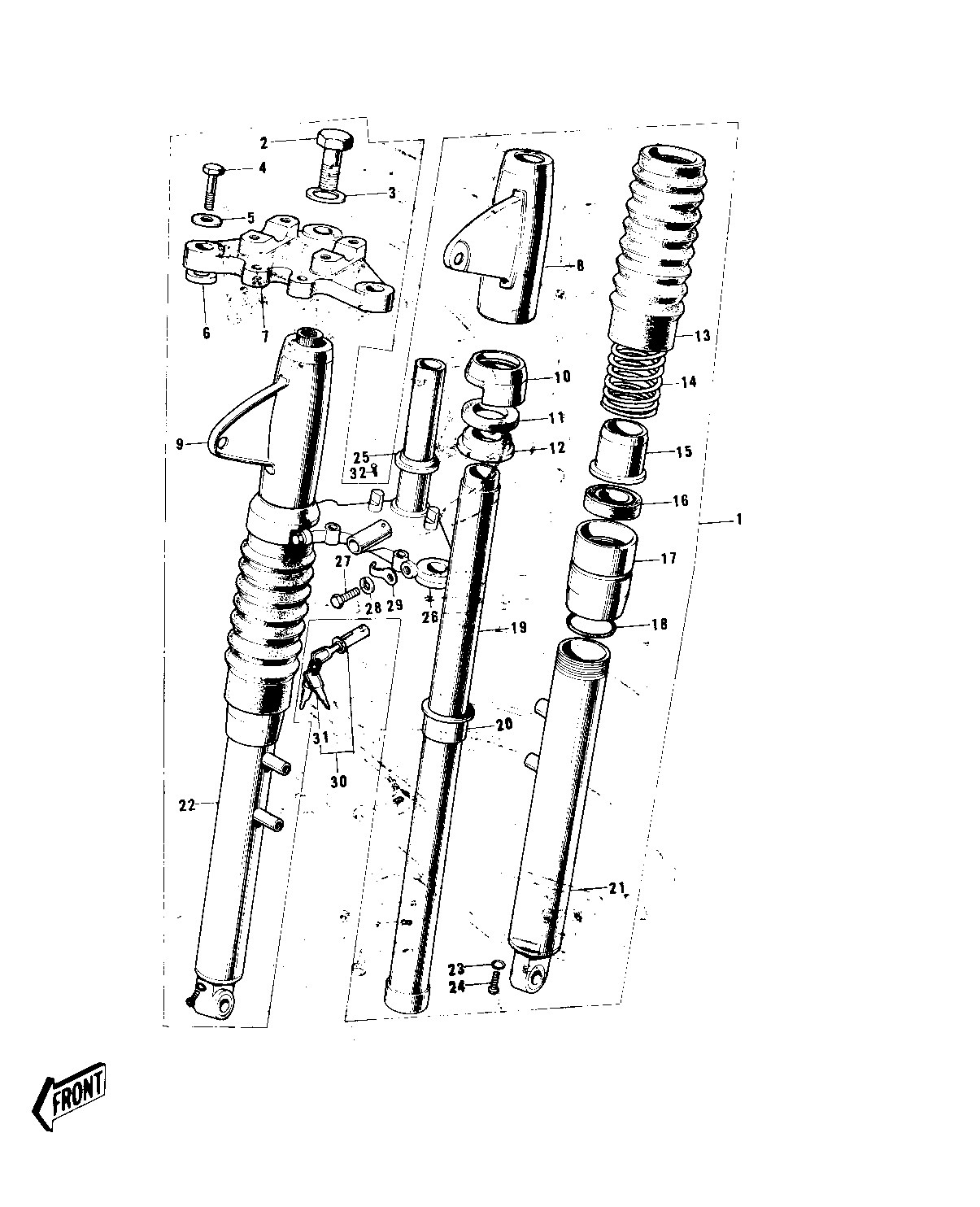

1977 KH100-B8 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT,F.BLACK 1 44001-178-21 FLAT BLACK
BOLT STRNG STEM HEAD 2 44041-007
WASHER FORK COVER 3 44043-032
WASHER STRNG STEM HD 3 44043-016 KH100-B8
BOLT FORK TOP 4 44041-020
WASHER FORK TOP 5 44043-017
GASKET INNER TUBE UPP 6 44046-002
HEAD STEERING STEM 7 44039-013
COVER,L.H FORK 8 44033-077-21 FLAT BLACK
COVER,R.H FORK 9 44034-077-21 FLAT BLACK
RING FORK COVER 10 44030-004
GASKET FORK COVER 11 44045-014
GUIDE FORK SPRING 12 44029-011
COVER FORK DUST 13 44027-004
SPRING FORK 14 44026-020
DUST SHIELD FORK 15 44010-015
OIL SEAL,FORK 16 44009-021
NUT FORK OUTER TUBE 17 44007-008
'O' RING OUTER TUBE 18 44046-005
TUBE FORK INNER 19 44013-010
GUIDE FORK INNER TUBE 20 44015-003
TUBE,LH,FORK OUTER 21 44005-029-15 METALLIC SILVER
TUBE,RH,FORK OUTER 22 44006-028-15 METALLIC SILVER
GASKET FORK DRAIN PLG 23 44045-002
SCREW PAN HEAD 4X8 24 220B0408
CONE LOWER BEARING 25 92047-004
STEM STEERING 26 44037-020
BOLT PINCH 27 44041-010
WASHER SPRING 10MM 28 461F1000
CLAMP CABLE 29 92037-022
LOCK ASSY,STEERING 30 27016-5025
KEY SET NO.321 31 27008-034-21 REF. GRID F5,#27 FOR KEY BLANK
KEY SET NO.322 31 27008-034-22
KEY SET NO.323 31 27008-034-23
KEY SET NO.324 31 27008-034-24
KEY SET, #325 31 27008-034-25
KEY SET, #326 31 27008-034-26
KEY SET, #327 31 27008-034-27
KEY SET, #328 31 27008-034-28
KEY SET, #329 31 27008-034-29
KEY SET, #330 31 27008-034-30
KEY SET NO.235 31 27008-034-35
KEY SET NO.236 31 27008-034-36
KEY SET NO.237 31 27008-034-37
KEY SET NO.238 31 27008-034-38
KEY SET NO.239 31 27008-034-39
KEY SET, #240 31 27008-034-00
KEY SET NO.140 31 27008-034-40
KEY SET NO.141 31 27008-034-41
KEY SET NO.142 31 27008-034-42
KEY SET NO.143 31 27008-034-43
SCREW RIVET 32 92099-001
