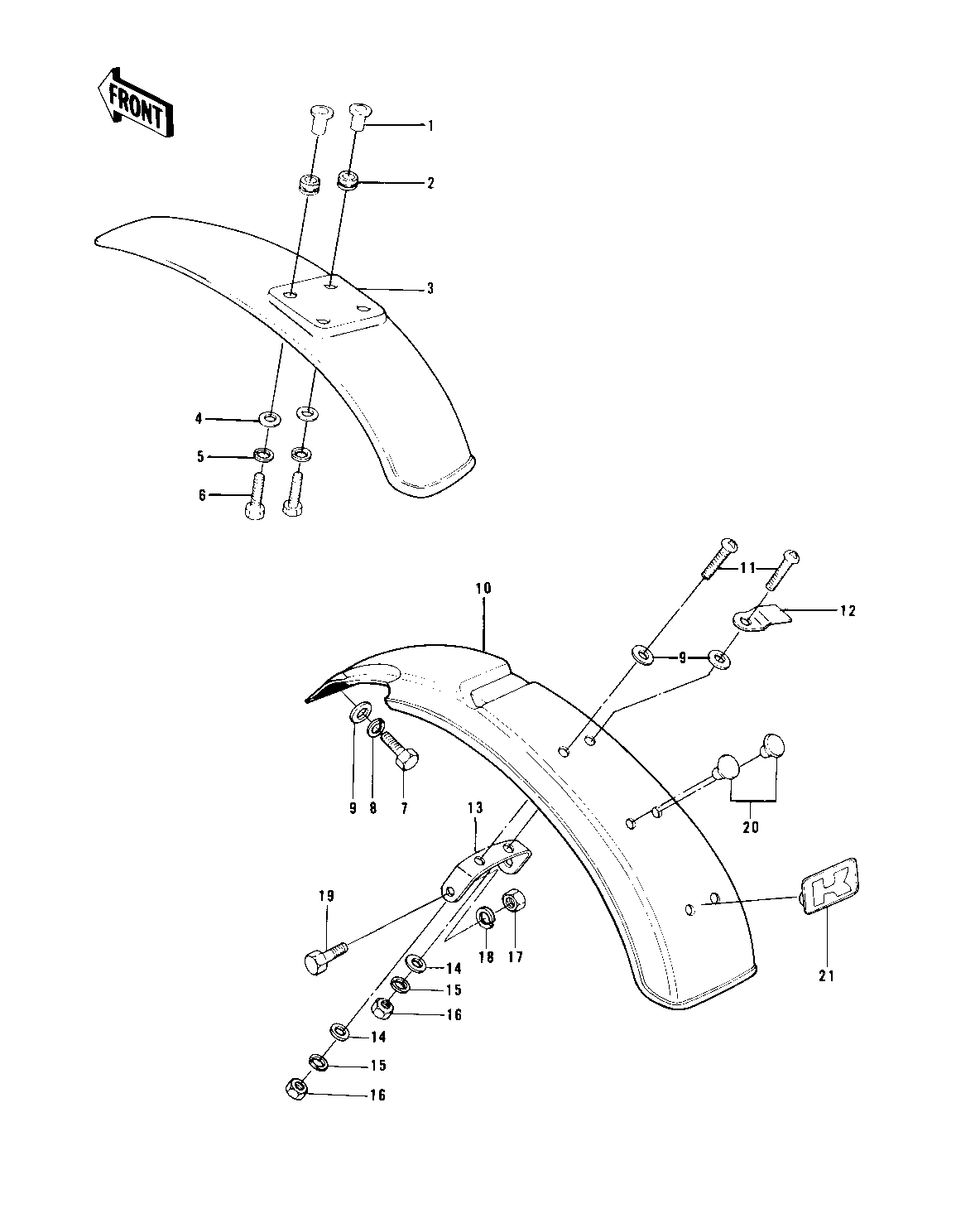

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR | 1 | 92027-153 | |||
| DAMPER RUBBER | 2 | 92075-103 | |||
| FENDER-FR,BLACK | 3 | 35004-080-10 | KD100-M1 | ||
| FENDER-FR,BLACK | 3 | 35004-109-6Z | KD100-M2 | ||
| FENDER-FR,WHITE | 3 | 35004-109-6V | KD100-M3 | ||
| FENDER-FR,TANGERINE | 3 | 35004-109-6M | KD100-M4 | ||
| FENDER-FR,F.RED | 3 | 35004-109-6L | KD100-M4 | ||
| WASHER 6.5X20X1.6T | 4 | 92022-125 | |||
| WASHER SPRING 6MM | 5 | 461F0600 | |||
| BOLT-UPSET | 6 | 112G0618 | |||
| BOLT-UPSET 6X14 | 7 | 112B0614 | |||
| WASHER SPRING 6MM | 8 | 461F0600 | |||
| WASHER 6.5X20X1.6T | 9 | 92022-125 | |||
| FENDER,REAR,BLACK | 10 | 35022-094-10 | KD100-M1 | ||
| FENDER-RR,BLACK | 10 | 35022-162-6Z | KD100-M2 | ||
| FENDER-RR,WHITE | 10 | 35022-162-6V | KD100-M3 | ||
| FENDER-RR,TANGERINE | 10 | 35022-162-6M | KD100-M4 | ||
| FENDER-RR,F.RED | 10 | 35022-162-6L | KD100-M4 | ||
| SCREW PAN HEAD 6X16 | 11 | 220B0616 | |||
| CLAMP CABLE | 12 | 92037-020 | |||
| BRACKET,REAR FENDER | 13 | 35025-025 | |||
| WASHER PLAIN 6MM | 14 | 411B0600 | |||
| WASHER SPRING 6MM | 15 | 461F0600 | |||
| NUT 6MM | 16 | 311B0600 | |||
| NUT-HEX-FINE,12MM | 17 | 315B1200 | |||
| WASHER SPRING 12MM | 18 | 461F1200 | |||
| BOLT,HEX HEAD,12X26 | 19 | 113B1226A | |||
| PLUG,RR FENDR RUBBER | 20 | 92074-034 | |||
| PLUG,RR FENDR RUBBER | 21 | 92074-033 |
