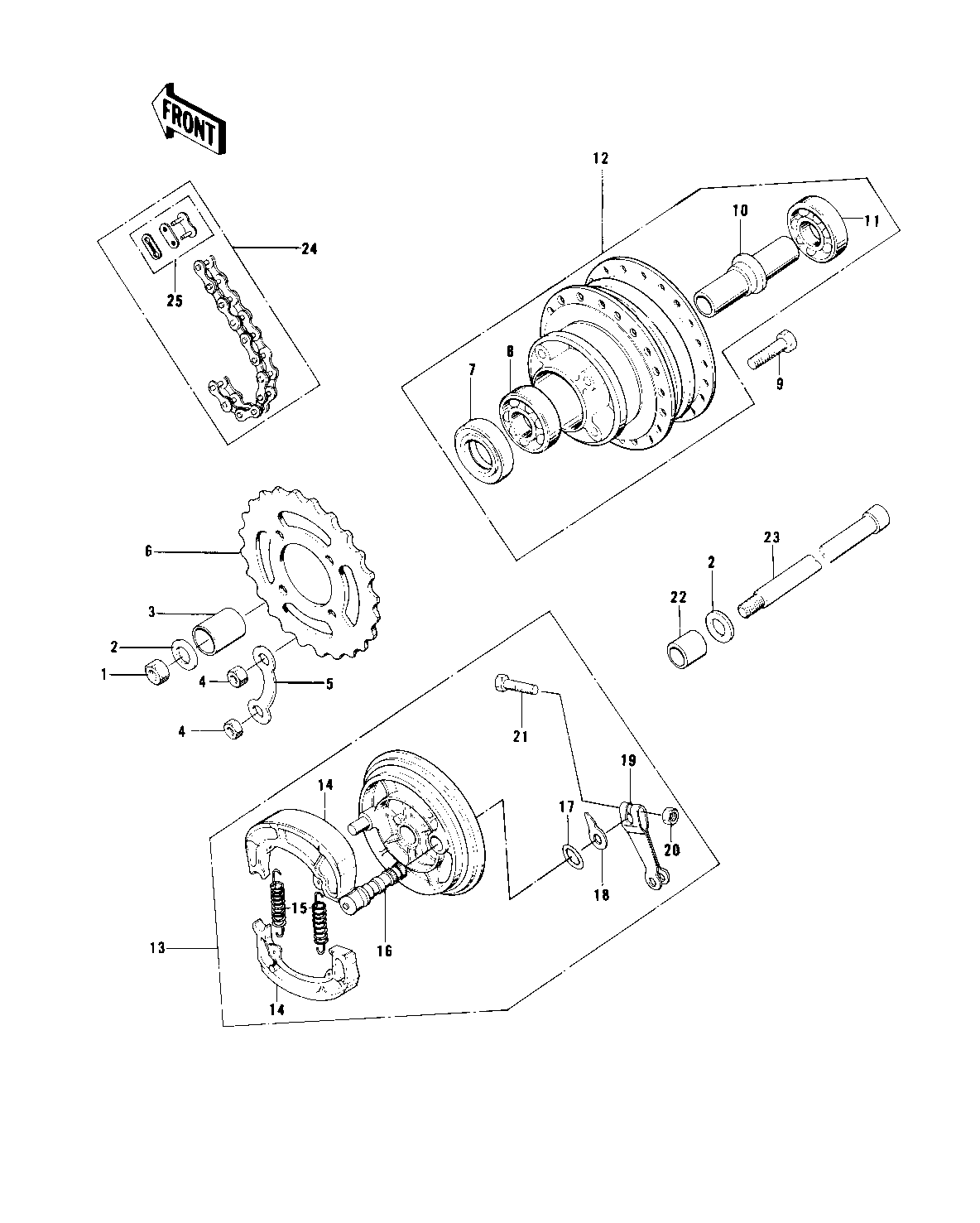

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX-FINE | 1 | 314B1200 | 1 | ||
| WASHER PLAIN 12MM | 2 | 411B1200 | 2 | ||
| COLLAR,REAR AXLE | 3 | 42032-044 | 1 | ||
| NUT,8MM | 4 | 311B0800 | 4 | ||
| WASHER RR SPRCKT LOCK | 5 | 92088-003 | 2 | ||
| REAR SPROCKET 36T | 6 | 42041-022 | 1 | STD | |
| REAR SPROCKET 34T | 6 | 42041-019 | (1 | ||
| OIL SEAL RR BRK DRUM | 7 | 92052-001 | 1 | ||
| BEARING BALL #6301 | 8 | 601B6301 | 1 | ||
| BOLT REAR SPROCKET | 9 | 92001-021 | 4 | ||
| SPACER RR HUB BEARING | 10 | 42010-003 | 1 | ||
| BEARING BALL #6301Z | 11 | 601B6301Z | 1 | ||
| DRUM-ASSY,RR BRK,BUFF | 12 | 41034-1002-80 | 1 | KD100-M1/M2/M3 | |
| DRUM-ASSY,RR BRK,BUFF | 12 | 41034-1002-80 | 1 | KD100-M4 | |
| PANEL-ASY,RR BRK,BUFF | 13 | 42006-063-80 | 1 | ||
| SHOE-BRAKE | 14 | 41048-1085 | 2 | ||
| SPRING,BRAKE SHOE | 15 | 92081-1766 | 2 | ||
| CAM SHAFT,REAR BRAKE | 16 | 42026-018 | 1 | ||
| "0" RING,11MM | 17 | 92055-004 | 1 | ||
| INDICATOR,BKSHOE | 18 | 41085-003 | 1 | ||
| LEVER,REAR BRAKE PANL | 19 | 42029-027 | 1 | ||
| NUT,6MM | 20 | 41072-007 | 1 | ||
| BOLT-UPSET | 21 | 112G0630 | 1 | ||
| COLLAR-REAR HUB R.H | 22 | 42032-002 | 1 | ||
| AXLE,12X206 | 23 | 41068-1091 | 1 | ||
| CHAIN,DRIVE,EK428 96L | 24 | 92057-1089 | 1 | ||
| JOINT-CHAIN | 25 | 92058-1014 | 1 |
