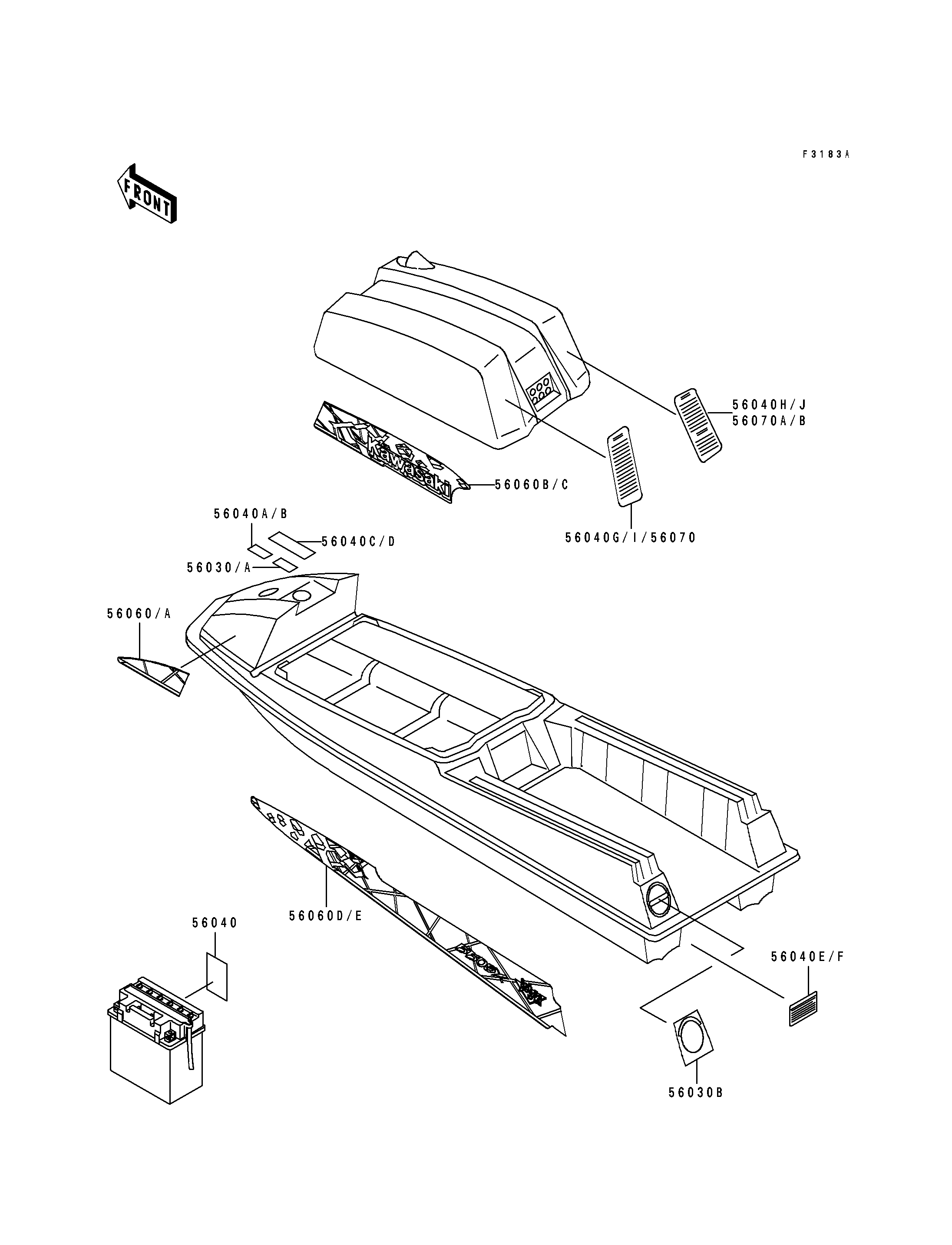

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,OIL RECOMMENDED | 56030 | 56030-3761 | 1 | ||
| LABEL,OIL RECOMMENDED(FRENCH) | 56030A | 56030-3765 | 1 | CN | |
| LABEL,FIRE EXTINGUISHER | 56030B | 56030-3774 | 1 | ||
| LABEL,BATTERY CAUTION(FRENCH) | 56040 | 56040-1106 | 1 | CN | |
| LABEL-WARNING,FUEL CAUTION | 56040A | 56040-3906 | 1 | ||
| LABEL,FUEL CAUTION(FRENCH) | 56040B | 56040-3907 | 1 | CN | |
| LABEL-WARNING,FUEL SUPPLY | 56040C | 56040-3934 | 1 | ||
| LABEL,FUEL SUPPLY(FRENCH) | 56040D | 56040-3941 | 1 | CN | |
| LABEL-WARNING,NOZZLE | 56040E | 56040-3946 | 1 | ||
| LABEL,NOZZLE CHECK(FRENCH) | 56040F | 56040-3954 | 1 | CN | |
| LABEL-WARNING,SAFETY(FRENCH) | 56040I | 56040-3993 | 1 | CN | |
| PATTERN,DECK,FR,LH | 56060 | 56060-1244 | 1 | ||
| PATTERN,DECK,FR,RH | 56060A | 56060-1245 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56060B | 56060-1246 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56060C | 56060-1247 | 1 | ||
| PATTERN,DECK,RR,LH | 56060D | 56060-1248 | 1 | ||
| PATTERN,DECK,RR,RH | 56060E | 56060-1249 | 1 | ||
| LABEL-WARNING,SAFETY | 56070 | 56070-3733 | 1 | ||
| LABEL-WARNING,SAFETY(FRENCH) | 56070A | 56070-3735 | 1 | CN | |
| LABEL-WARNING,SAFETY | 56070B | 56070-3736 | 1 |
| LABEL,OIL RECOMMENDED | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,OIL RECOMMENDED(FRENCH) | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL,FIRE EXTINGUISHER | |
| REF # | 56030B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,BATTERY CAUTION(FRENCH) | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,FUEL CAUTION | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,FUEL CAUTION(FRENCH) | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,FUEL SUPPLY | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,FUEL SUPPLY(FRENCH) | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,NOZZLE | |
| REF # | 56040E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,NOZZLE CHECK(FRENCH) | |
| REF # | 56040F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,SAFETY(FRENCH) | |
| REF # | 56040I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,LH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SAFETY | |
| REF # | 56070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SAFETY(FRENCH) | |
| REF # | 56070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,SAFETY | |
| REF # | 56070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
