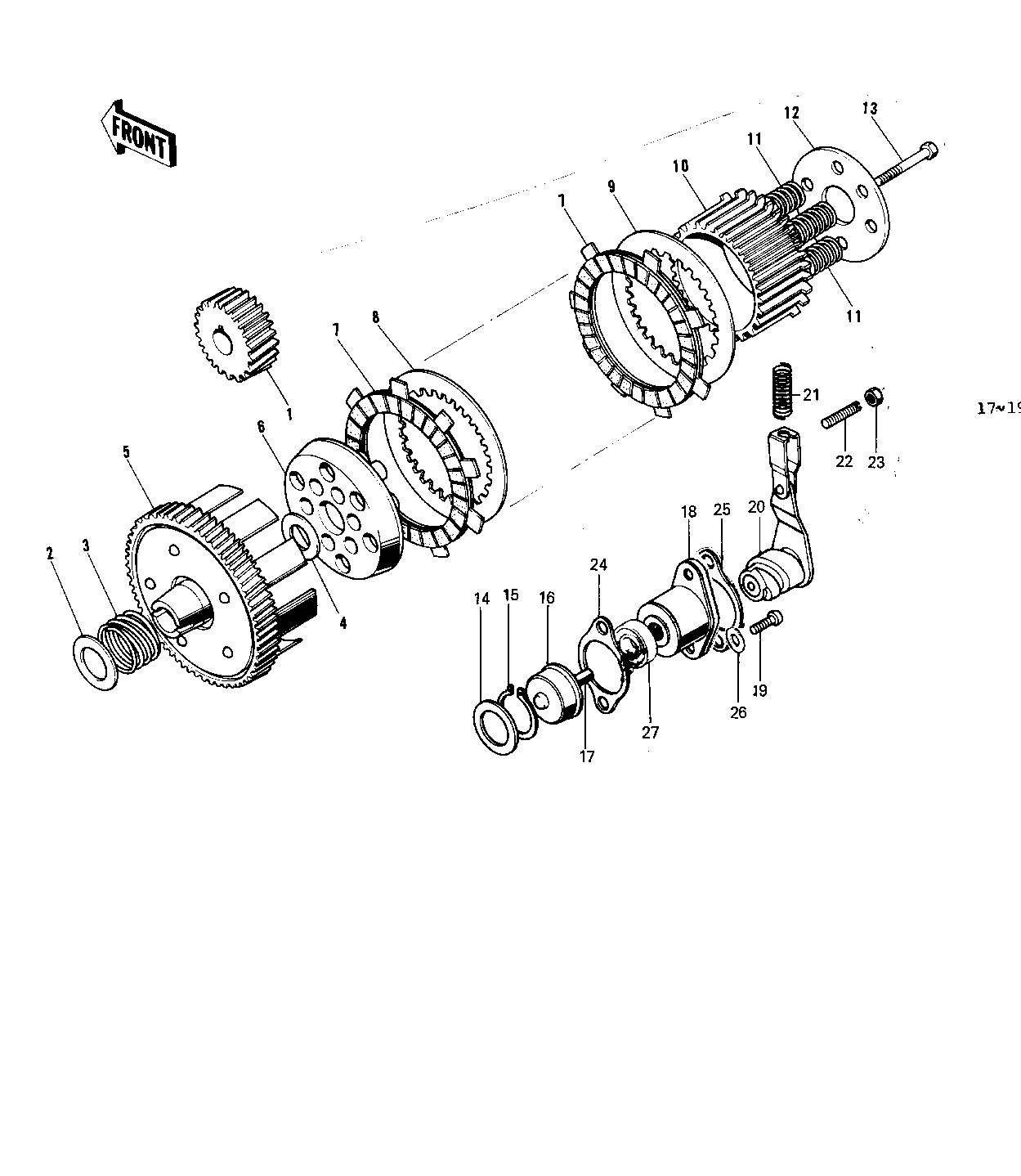

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PINION,PRIMARY | 1 | 13121-032 | |||
| WASHER PLAIN | 2 | 92022-057 | O.D=36 | ||
| SPRING CLUTCH DAMPER | 3 | 92081-015 | |||
| WASHER THRUST CLUTCH | 4 | 92022-054 | O.D=27 | ||
| CLUTCH-ASSY | 5~13 | 13081-028 | |||
| HOUSING CLUTCH | 5 | 13095-022 | |||
| WHEEL,CLUTCH | 6 | 13086-1002 | |||
| PLATE-FRICTION | 7 | 13088-1103 | |||
| PLATE-CLUTCH,STEEL | 8 | 13089-1009 | |||
| PLATE CLUTCH OUTER | 9 | 13090-004 | |||
| HUB,CLUTCH | 10 | 13087-1011 | |||
| SPRING CLUTCH | 11 | 92081-012 | |||
| HOLDER,CLUTCH SPRING | 12 | 13091-1115 | |||
| BOLT-UPSET | 13 | 112G0516 | |||
| WASHER THRUST | 14 | 92022-053 | O.D=21 | ||
| CIRCLIP 16MM | 15 | 480J1600 | |||
| PUSHER CLUTCH SPRING | 16 | 13113-003 | |||
| RELEASE SET,CLUTCH | 17~19, | 13231-013 | E/NO.-048312 | ||
| PIN,DOWEL,7X14 | 17 | 610A0714 | |||
| RELEASE SET,CLUTCH | 18 | 13231-013 | |||
| RELEASE-ASSY-CLUTCH | 18 | 13231-1008 | USE FOR 13231-013 | ||
| SCREW PAN HEAD 6X16 | 19 | 220B0616 | |||
| RELEASE-ASSY-CLUTCH | 20 | 13231-1008 | |||
| SPRING-CLUTCH RELEASE | 21 | 92081-096 | |||
| SCREW SLOTTED | 22 | 291Z0625 | |||
| UNAVAILABLE IN PRICE BOOK | 22 | 291Z0624 | USE FOR 13231-013 | ||
| NUT 6MM | 23 | 311B0600 | |||
| GASKET,CLUTCH RELEASE | 24 | 11060-1197 | |||
| HOLDER | 25 | 13115-008 | |||
| WASHER PLAIN 6MM | 26 | 410B0600 | USE FOR 13231-013 | ||
| OIL SEAL | 27 | 92050-071 | USE FOR 13231-013 |
