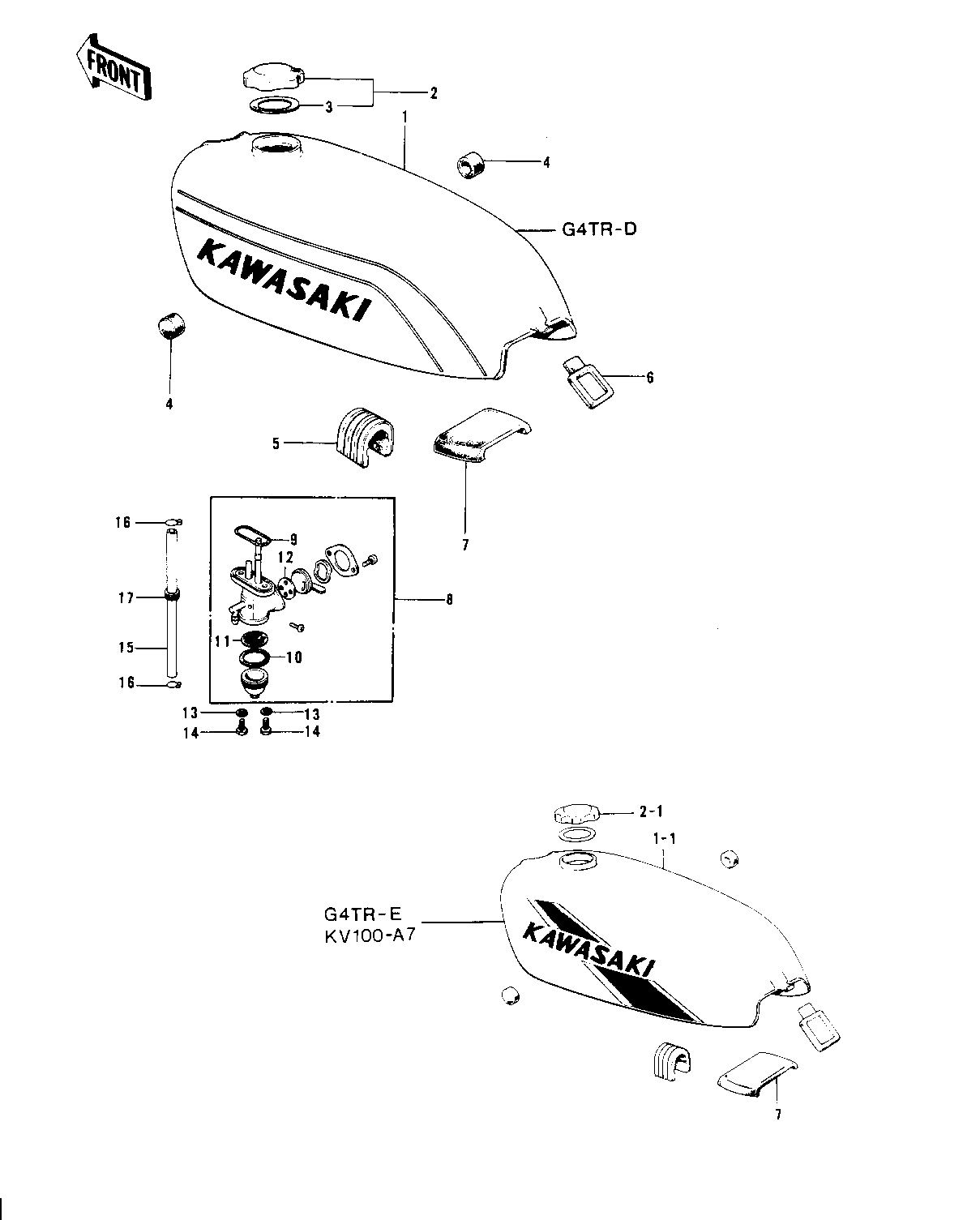

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,C.SUPER RED | 1 | 51001-090-1R | 1 | G4TR-D | |
| TANK-FUEL,V.YELLOW | 1-1 | 51001-090-3E | 1 | ||
| TANK-FUEL,C.RED | 1-1 | 51001-090-3R | 1 | KV100-A7 | |
| CAP,FUEL TANK | 2 | 51048-1013 | 1 | G4TR-D | |
| CAP,FUEL TANK | 2-1 | 51048-1013 | 1 | G4TR-E, KV100-A7 | |
| CAP,FUEL TANK | 2-1 | 51048-1013 | 1 | G4TR-D/E, KV100A7 | |
| GASKET,FUEL TANK CAP | 3 | 51059-011 | 1 | ||
| DAMPER RUBBER-FL TANK | 4 | 92075-101 | 2 | ||
| DAMPER RUBBER,FL TANK | 5 | 92075-212 | 1 | ||
| BAND-FUEL TANK | 6 | 92072-036 | 1 | ||
| DAMPER RUBBER-FL TANK | 7 | 92075-106 | 1 | G4TR-D/E | |
| DAMPER RUBBER,FL TANK | 7 | 92075-227 | 1 | KV100-A7 | |
| TAP ASSY,FUEL | 8 | 51023-1020 | 1 | G4TR-D | |
| TAP ASSY,FUEL | 8 | 51023-1020 | 1 | G4TR-D | |
| TAP ASSY,FUEL | 8 | 51023-1020 | 1 | G4TR-E, KV100-A7 | |
| "O" RING | 9 | 51039-003 | 1 | ||
| GASKET FUEL COCK CUP | 10 | 51037-011 | 1 | ||
| STRAINER,FUEL | 11 | 51038-008 | 1 | ||
| GASKET-FUEL COCK LEV | 12 | 92065-094 | 1 | ||
| WASHER-PLAIN | 13 | 92022-183 | 2 | ||
| BOLT-HEX HEAD,6X16 | 14 | 92001-114 | 2 | ||
| PIPE-OIL | 15 | 92059-072 | 1 | ||
| CLAMP FUEL PIPE | 16 | 92037-010 | 2 | ||
| GROMMET PIPE | 17 | 92071-038 | 1 |
