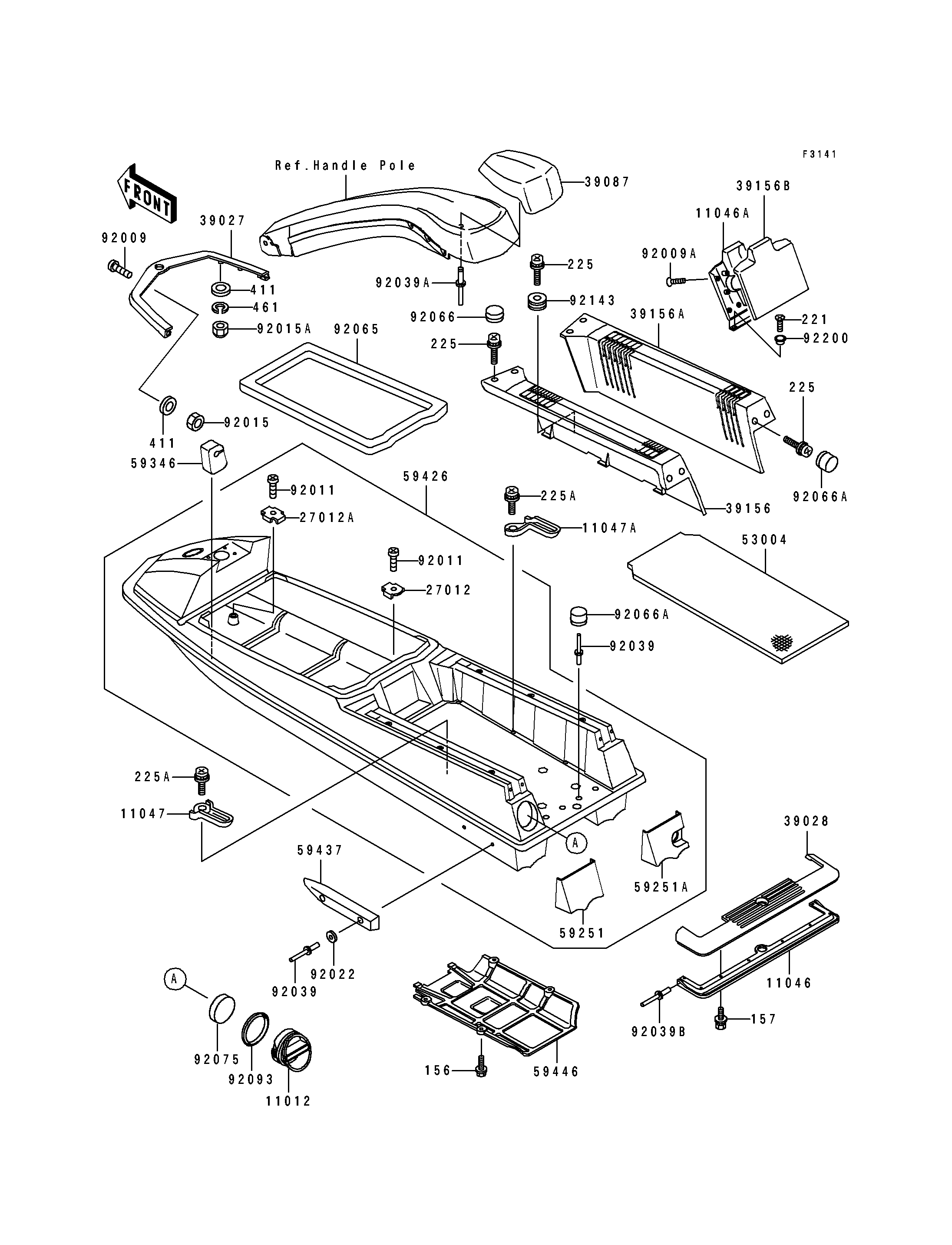

1995 550 SX - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3741 1
BRACKET,REAR BUMPER 11046 11046-3829 1
BRACKET,CONTROL PANEL COVER 11046A 11046-3835 1
BRACKET,DECK,PAD,LH 11047 11047-3703 3
BRACKET,DECK,PAD,RH 11047A 11047-3704 3
HOOK 27012 27012-501 5
HOOK 27012A 27012-502 2
BUMPER-FRONT 39027 39027-3713 1
BUMPER-REAR 39028 39028-3705 1
PAD-HANDLE,POLE 39087 39087-3701 1
PAD,DECK,LH 39156 39156-3731 1
PAD,DECK,RH 39156A 39156-3732 1
PAD,CONTROL PANEL COVER 39156B 39156-3733 1
MAT,DECK 53004 53004-3731 1
HULL,LH,EXTENSION,JET WHITE 59251 59251-3006-8C 1
HULL,RH,EXTENSION,JET WHITE 59251A 59251-3713-8C 1
DETENT 59346 59346-504 3
HULL-COMP,JET WHITE 59426 59426-3777-8C 1
STABILIZER 59437 59437-3002 2
COVER-JET PUMP 59446 59446-3718 1
SCREW,5X22 92009 92009-3761 6
SCREW,4X8 92009A 92009-3770 10
SCREW,TAPPING 92011 92011-561 9
NUT,FLANGED,5MM 92015 92015-3768 6
NUT,CAP,5MM 92015A 92015-3802 6
WASHER,5X16X1.5 92022 92022-3041 4
RIVET 92039 92039-3002 8
RIVET 92039A 92039-3712 6
RIVET 92039B 92039-3733 2
GASKET,ENGINE HOOD 92065 92065-539 1
PLUG 92066 92066-3731 4
PLUG 92066A 92066-3734 8
DAMPER 92075 92075-3719 1
SEAL,OSR70X82X7.5 92093 92093-3704 1
COLLAR 92143 92143-3711 6
WASHER 92200 92200-3706 2
BOLT-WP,6X25 156 156R0625 4
BOLT-WSP,5X20 157 157R0520 8
SCREW-CSK-CROS,6X16 221 221R0616 2
SCREW-PAN-WSP-CROS,6X16 225 225R0616 14
SCREW-PAN-WSP-CROS,6X20 225A 225R0620 6
WASHER-PLAIN,5MM 411 411S0500 12
WASHER-SPRING,5MM 461 461S0500 6
