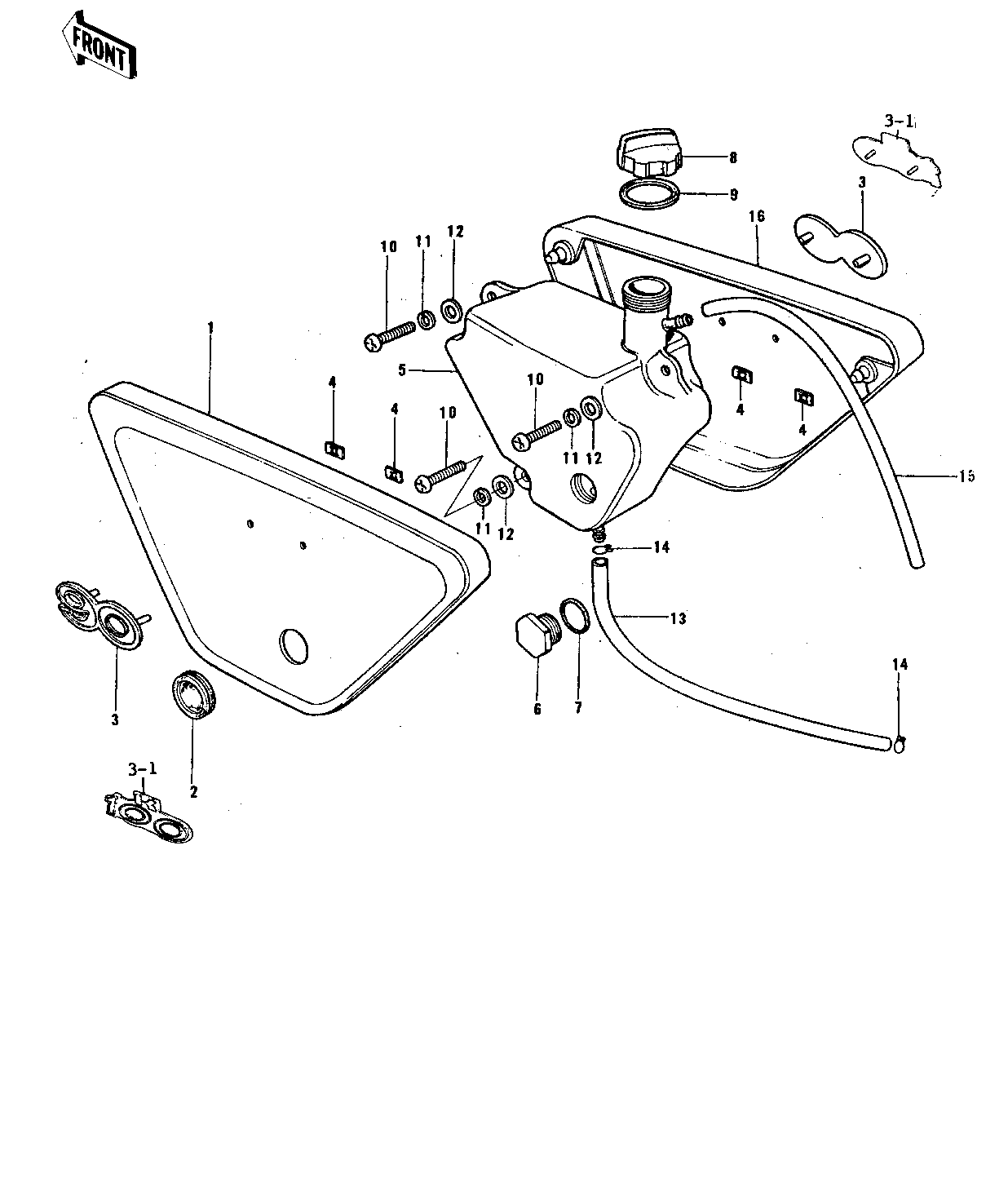

1969 G3SS - SIDE COVERS/OIL TANK ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,L.H SIDE,C.LIME | 1 | 36001-045-1Y | 1 | ||
| COVER,L.H. SIDE,H.RED | 1 | 36001-045-2K | 1 | G3SSE | |
| GROMMET-R.H SIDE COV | 2 | 92071-065 | 1 | ||
| EMBLEM,SIDE COVER | 3 | 56018-162 | 2 | ||
| EMBLEM,SIDE COVER | 3-1 | 56018-178 | 2 | G3SSE | |
| NUT,LOCK,3MM | 4 | 92018-005 | 4 | ||
| TANK,OIL | 5 | 52001-042 | 1 | ||
| GUAGE-OIL LEVEL | 6 | 52015-002 | 1 | ||
| "O" RING,20MM | 7 | 92055-051 | 1 | ||
| CAP-OIL TANK | 8 | 52003-019 | 1 | ||
| GASKET-OIL TANK CAP | 9 | 92065-085 | 1 | ||
| SCREW PAN HEAD 6X18 | 10 | 220B0618 | 3 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 3 | ||
| WASHER PLAIN 6MM | 12 | 410B0600 | 2 | ||
| PIPE-OIL | 13 | 92059-072 | 1 | ||
| CLAMP FUEL PIPE | 14 | 92037-010 | 2 | ||
| TUBE-PVC,5X1000 | 15 | 700Q051000 | 1 | ||
| COVER,R.H SIDE,LIME | 16 | 36007-038-1Q | 1 | ||
| COVER,RH SIDE,H.RED | 16 | 36007-038-2K | 1 | G3SSE |
