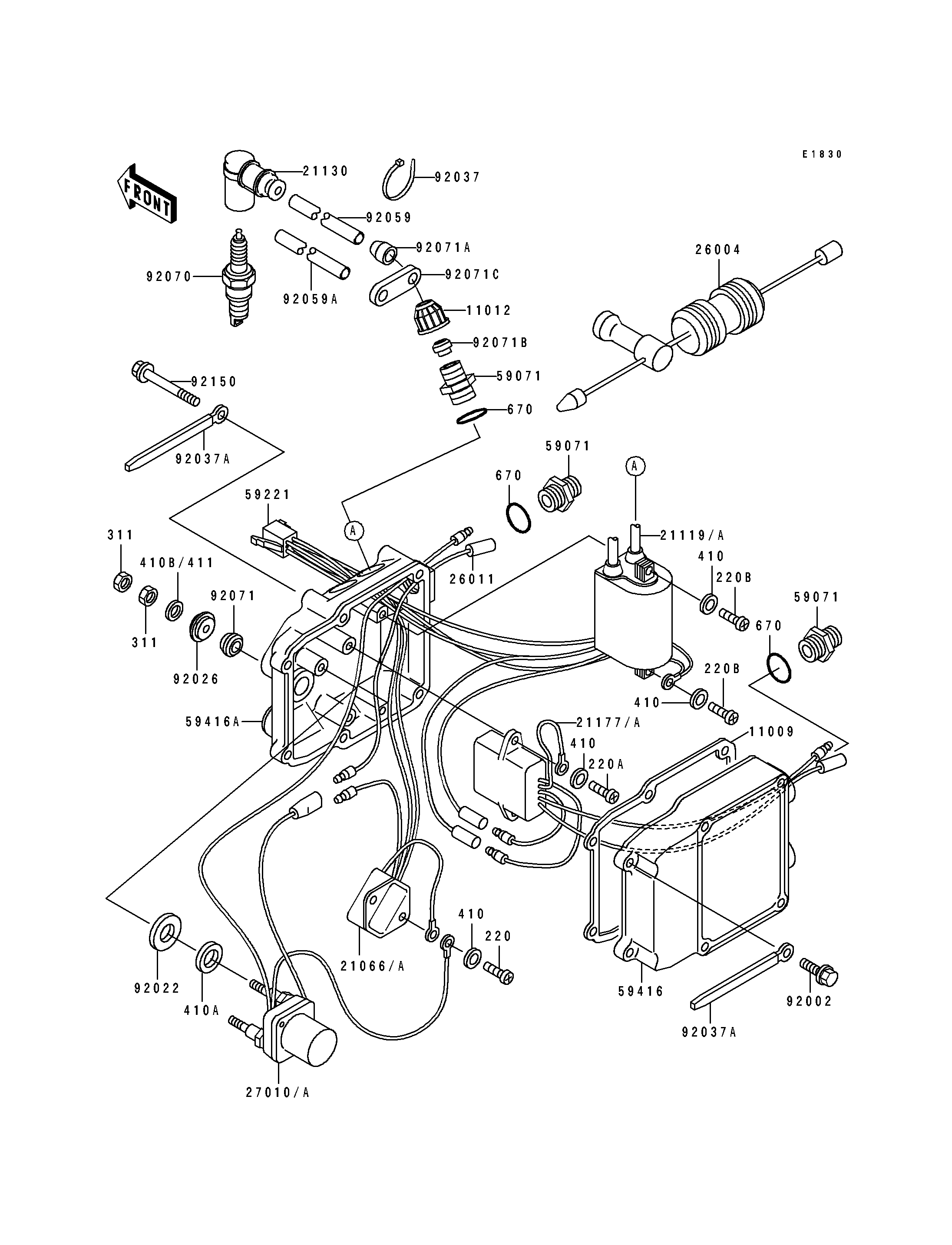

1995 550 SX - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELECTRIC CASE 11009 11009-3781 1
CAP 11012 11012-3005 2
REGULATOR-VOLTAGE 21066A 21066-3710 1
IGNITER 21119A 21119-3723 1
CAP-SPARK PLUG 21130 21130-3706 2
CONTROLLER 21177A 21177-3703 1
FUSE-ASSY 26004 26004-3711 1
SWITCH,STARTER RELAY 27010A 27010-3724 1
JOINT 59071 59071-3001 4
CONNECTOR-CORD 59221 59221-505 1
CASE-ELECTRIC,RR 59416 59416-3003-YR 1
CASE-ELECTRIC,FR 59416A 59416-3004-YR 1
BOLT,6X25 92002 92002-3714 2
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 2
CLAMP,L=100 92037A 92037-3736 2
TUBE,7.5X10X250 92059 92059-2153 1
TUBE,7.5X10X130 92059A 92059-2154 1
PLUG-SPARK,BR8ES(NGK) 92070 92070-2078 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-517 2
GROMMET 92071B 92071-527 2
GROMMET 92071C 92071-529 1
BOLT,6X80 92150 92150-3761 4
SCREW-PAN-CROS,6X12 220 220B0612 2
SCREW-PAN-CROS,6X16 220A 220B0616 2
SCREW-PAN-CROS,6X20,WHITE 220B 220B0620 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,6MM 410 410B0600 6
WASHER-PLAIN-SMALL,10MM 410A 410B1000 2
WASHER-PLAIN-SMALL,6MM 410B 410S0600 2
O RING,16MM 670 670B2016 4
