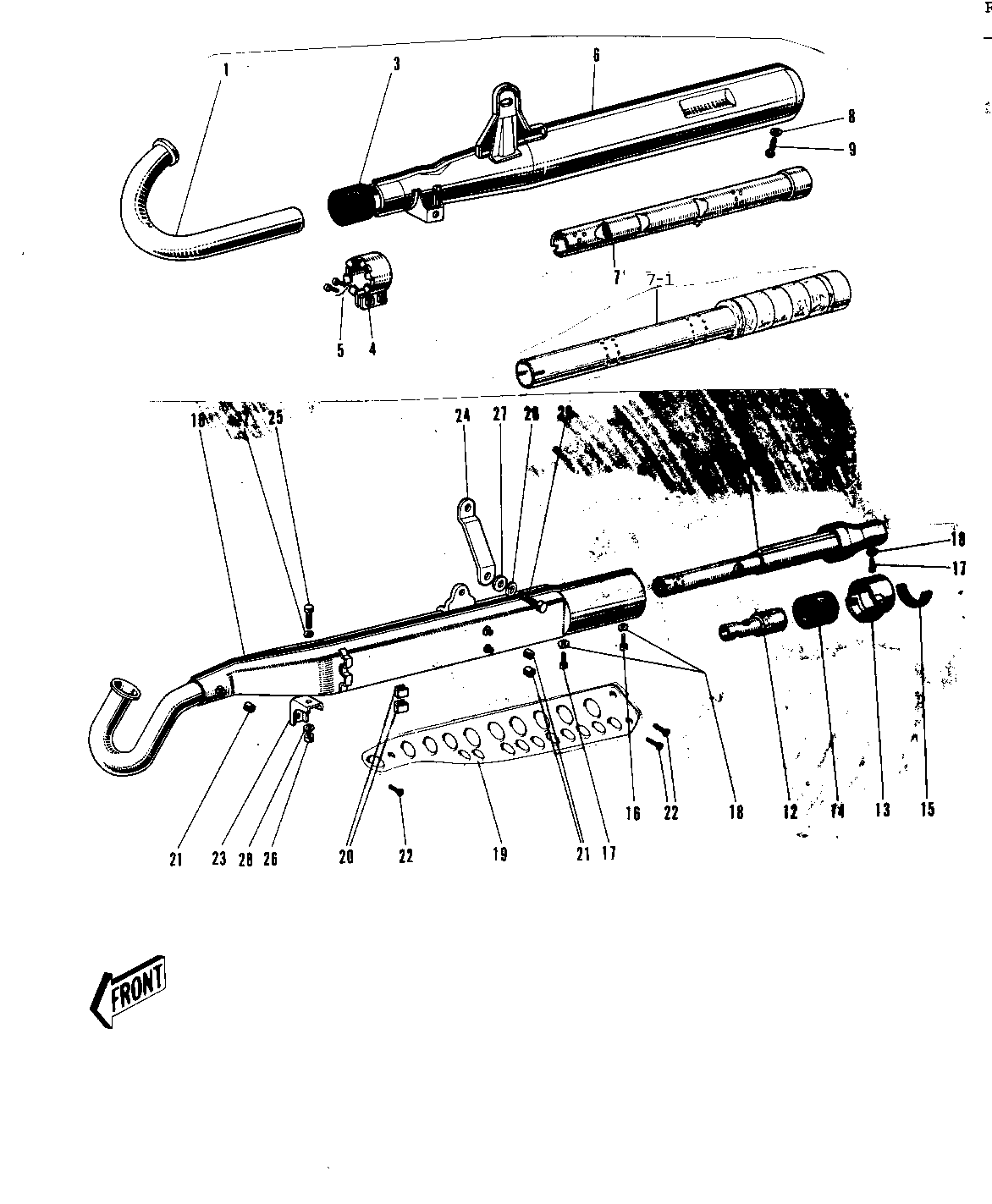

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MUFFLER ASSY | 10-12 | 18001-025 | 1 | ||
| SPARK ARRESTER COMP | 11 | 18033-029 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 12 | 18033-028 | 1 | ||
| TAIL PIECE | 13 | 18048-012 | 1 | ||
| ELEMENT TAIL PIECE | 14 | 18050-003 | 1 | ||
| GASKET TAIL PIECE | 15 | 18068-006 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 16 | 110B0606 | 1 | ||
| BOLT,6X10 | 17 | 112G0610 | 2 | ||
| WASHER LOCK 6MM | 18 | 464H0600 | 3 | ||
| COVER-MUFFLER,BLACK | 19 | 18057-035-21 | 1 | ||
| INSULATOR | 20 | 18065-007 | 2 | ||
| INSULATOR | 21 | 18065-001 | 3 | ||
| SCREW PAN HEAD 6X10 | 22 | 221E0610 | 3 | ||
| BRACKET FRONT MUFFLER | 23 | 18061-019 | 1 | ||
| BRACKET REAR MUFFLER | 24 | 18061-024 | 1 | ||
| BOLT HEX HEAD 8X16 | 25 | 116B0816 | 1 | ||
| NUT,8MM | 26 | 311B0800 | 1 | ||
| WASHER PLAIN 8MM | 27 | 410B0800 | 2 | ||
| WASHER SPRING 8MM | 28 | 461F0800 | 2 | ||
| BOLT HEX HEAD 8X16 | 29 | 110N0816 | 1 |
| MUFFLER ASSY | |
| REF # | 10-12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPARK ARRESTER COMP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAIL PIECE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT TAIL PIECE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET TAIL PIECE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,BLACK | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET FRONT MUFFLER | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET REAR MUFFLER | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X16 | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X16 | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
