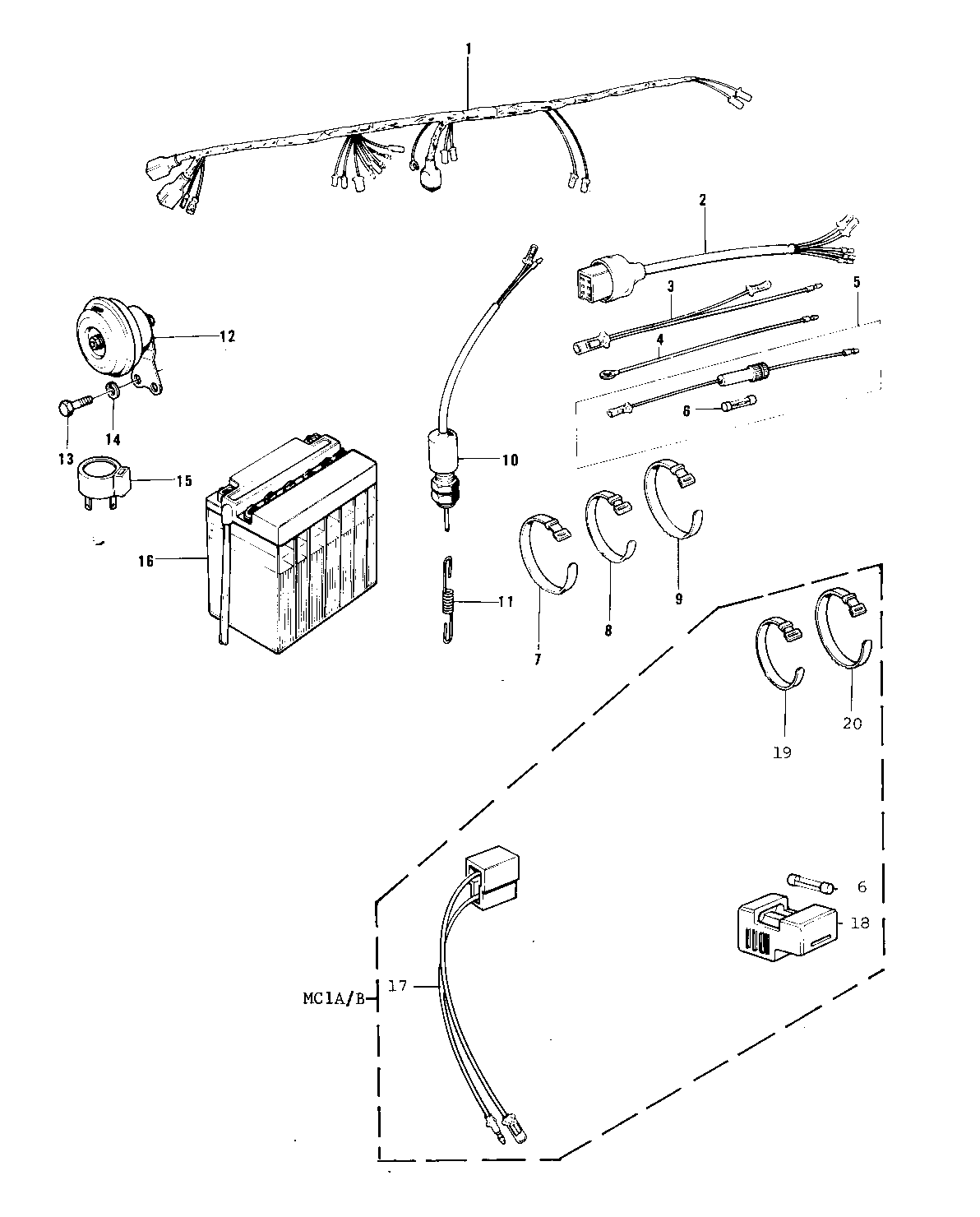

1974 MC1M - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,MAIN | 1 | 26001-098 | |||
| WIRE,LEAD | 2 | 26011-1042 | |||
| LEAD WIRE | 3 | 26011-042 | |||
| LEAD WIRE,SIGNAL LAMP | 4 | 26011-063 | |||
| FUES ASSY | 5 | 26004-008 | |||
| FUSE ASSY | 5 | 26004-017 | MC1A/B | ||
| FUSE 10A | 6 | 26006-003 | 3 REQ MC1A/B | ||
| BAND,WIRING HARNESS | 7 | 92072-056 | |||
| BAND,MIDDLE | 8 | 92072-031 | |||
| BAND,LONG | 9 | 92072-032 | |||
| SWITCH-BRAKE LAMP | 10 | 27010-015 | |||
| SPRING-BRAKE LAMP SW | 11 | 27011-011 | |||
| HORN | 12 | 27003-060 | |||
| HORN | 12 | 27003-060 | MC1B | ||
| BOLT,6X10 | 13 | 112G0610 | |||
| BOLT,6X10 | 13 | 112G0610 | |||
| WASHER SPRING 6MM | 14 | 461F0600 | |||
| RELAY-TURN SIGNAL | 15 | 27002-013 | |||
| UNAVAILABLE IN PRICE BOOK | 16 | 26012-029 | |||
| YUA BAT 6N4-2A-5 | 16 | K26012-020 | MC1A/B | ||
| WIRE,RECTIFIER LEAD | 17 | 26011-074 | MC1A/B | ||
| HOLDER,SPARE FUSE | 18 | 26016-003 | MC1A/B | ||
| BAND,SHORT | 19 | 92072-030 | MC1A/B | ||
| BAND,WIRING HARNESS | 20 | 92072-056 | MC1A/B |
