Parts Diagrams |

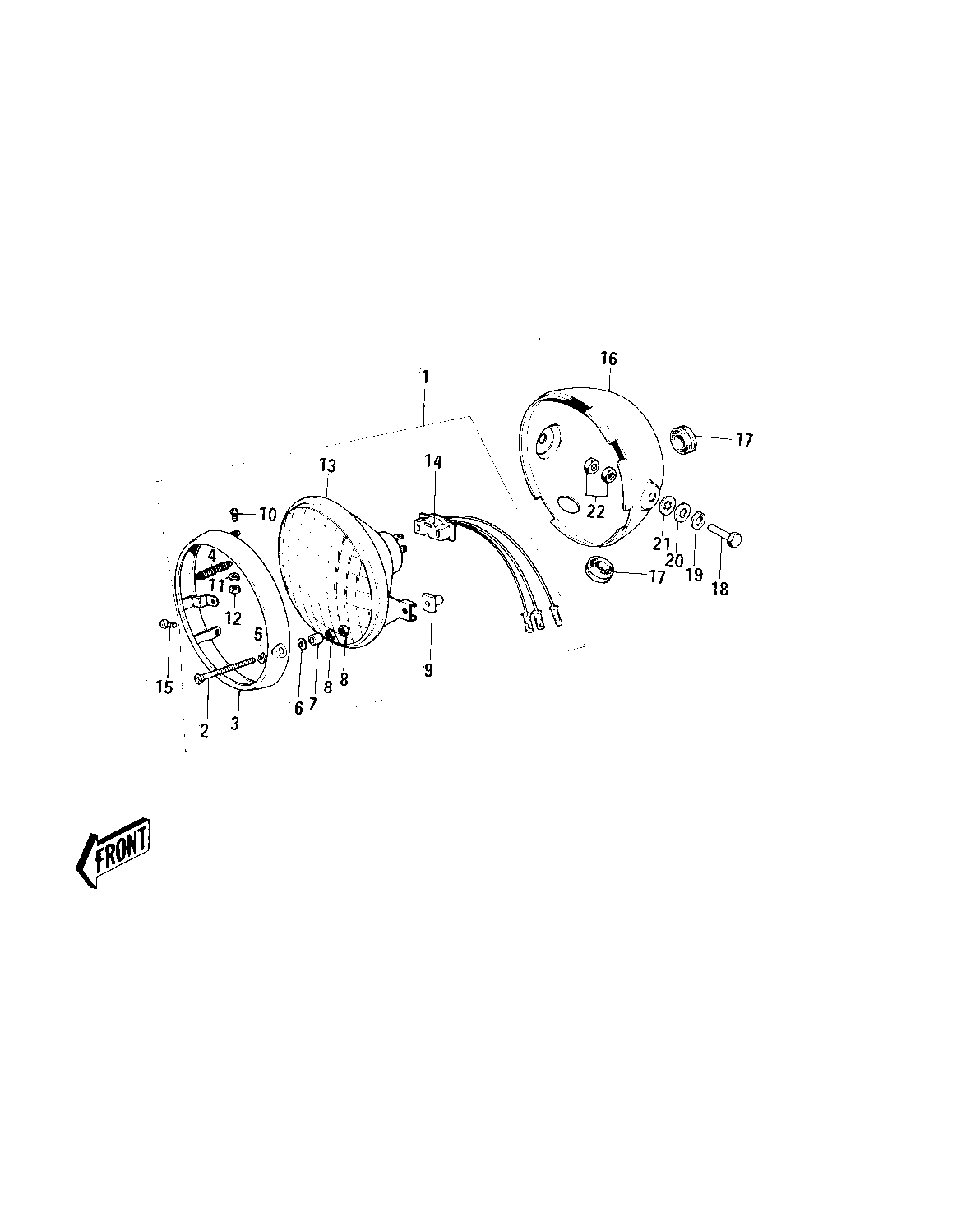

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP UNIT HEAD | 1 | 23003-009 | |||
| SCREW ADJUST | 2 | 23019-013 | |||
| RIM HEAD LAMP | 3 | 23006-020 | |||
| SPRING LENS FITTING | 4 | 23014-008 | |||
| WASHER-FOCUS ADJUST | 5 | 23021-008 | |||
| WASHER ADJUST | 6 | 23021-007 | |||
| WASHER FITTING | 7 | 23058-001 | |||
| NUT ADJUST | 8 | 23020-013 | |||
| NUT ADJUST | 9 | 23020-012 | |||
| SCREW FITTING | 10 | 23019-014 | |||
| WASHER SPRING 4MM | 11 | 461F0400 | |||
| NUT,4MM | 12 | 311B0400 | |||
| SEALED BEAM UNIT | 13 | 23007-023 | |||
| SOCKET ASSY,HD LIGHT | 14 | 23008-044 | |||
| SCREW OVL CNTSNK 5X10 | 15 | 222E0510 | |||
| BODY,HEAD LAMP,C.RED | 16 | 23005-021-92 | MC1/B CANDYTONE | ||
| BODY,HEAD LAMP,BLUE | 16 | 23005-021-1N | MC1A/B OCEAN BLUE | ||
| GROMMET WIRING HARNES | 17 | 23023-007 | |||
| BOLT,HEX HEAD,10X25 | 18 | 92007-045 | |||
| WASHER SPRING 10MM | 19 | 461F1000 | |||
| WASHER PLAIN 10MM | 20 | 411B1000 | |||
| WASHER LOCK 10MM | 21 | 463H1000 | |||
| NUT 10MM | 22 | 92016-027 |
| LAMP UNIT HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW ADJUST | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM HEAD LAMP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING LENS FITTING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER-FOCUS ADJUST | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER ADJUST | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER FITTING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT ADJUST | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT ADJUST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW FITTING | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SEALED BEAM UNIT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SOCKET ASSY,HD LIGHT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSNK 5X10 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BODY,HEAD LAMP,C.RED | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | MC1/B CANDYTONE |
| BODY,HEAD LAMP,BLUE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | MC1A/B OCEAN BLUE |
| GROMMET WIRING HARNES | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X25 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 10MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
