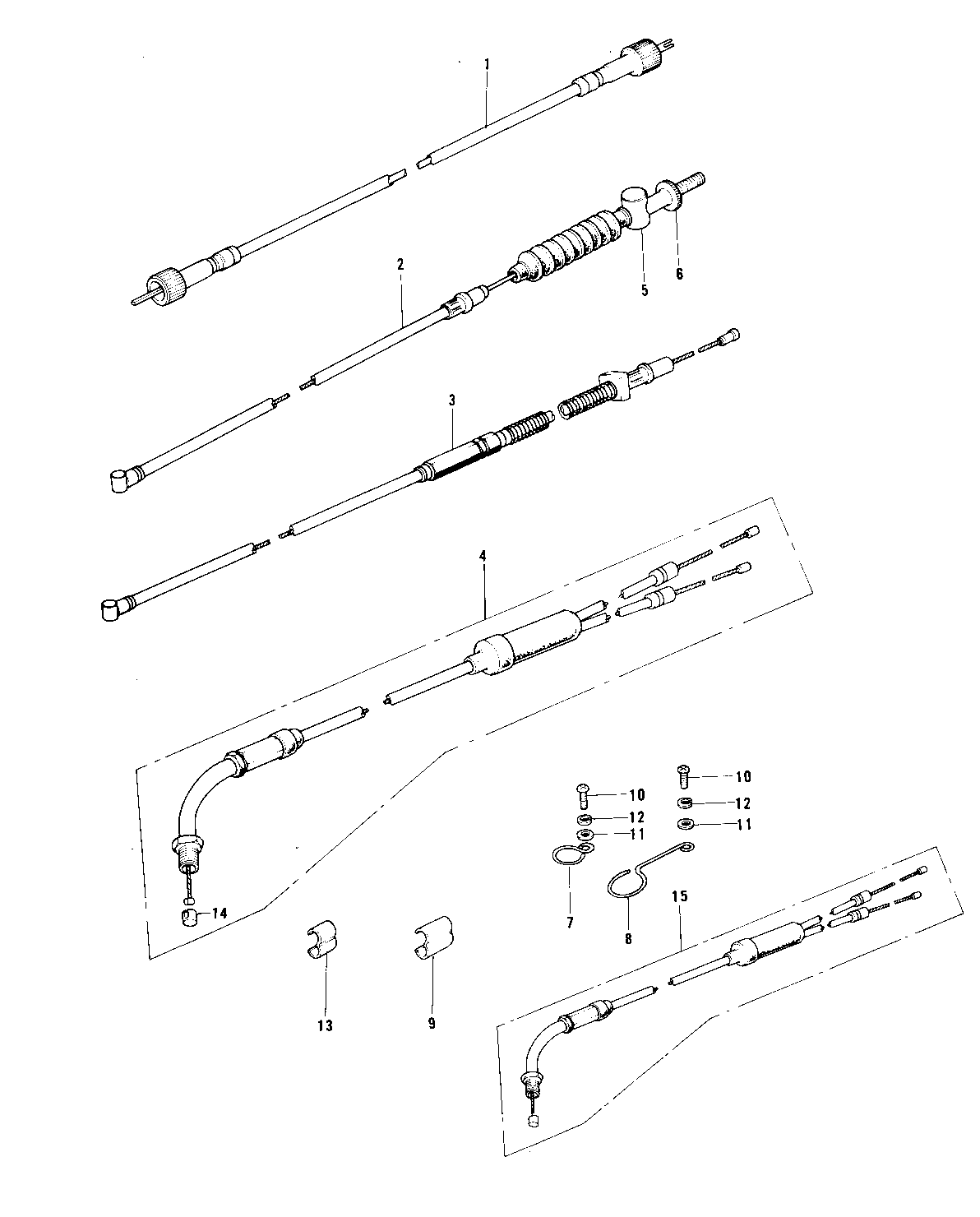

1974 MC1M - CABLES ('73-'75 MC1/MC1-A/MC1-B)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,SPEEDOMETER | 1 | 54001-044 | "01-044" | ||
| CABLE,FRONT BRAKE | 2 | 54005-074 | "05-074" | ||
| CABLE,CLUTCH | 3 | 54011-055 | "11-055" | ||
| CABLE, CLUTCH | 3 | 54011-073 | MC1B | ||
| CABLE,COMBINATION | 4 | 54012-092 | "12-092" | ||
| CABLE,COMBINATION | 4 | 54012-092 | MC1A | ||
| JOINT-BRAKE ROD | 5 | 92043-082 | 46018-020 10 | ||
| NUT-BRAKE ROD ADJUST | 6 | 92015-052 | |||
| CLAMP-CABLE | 7 | 92037-046 | |||
| CLAMP,CABLE | 8 | 92037-117 | |||
| CLAMP-CABLE | 9 | 92037-069 | |||
| BOLT-UPSET,6X12 | 10 | 112G0612 | |||
| BOLT-UPSET,6X12 | 10 | 112G0612 | |||
| WASHER PLAIN 6MM | 11 | 410B0600 | |||
| WASHER SPRING 6MM | 12 | 461F0600 | |||
| CLAMP-CABLE | 13 | 92037-069 | |||
| PIECE,THROTTLE CABLE | 14 | 54013-001 | |||
| CABLE,CONTROL | 15 | 54012-109 | MC1A/B USE FOR 46018-036 |
