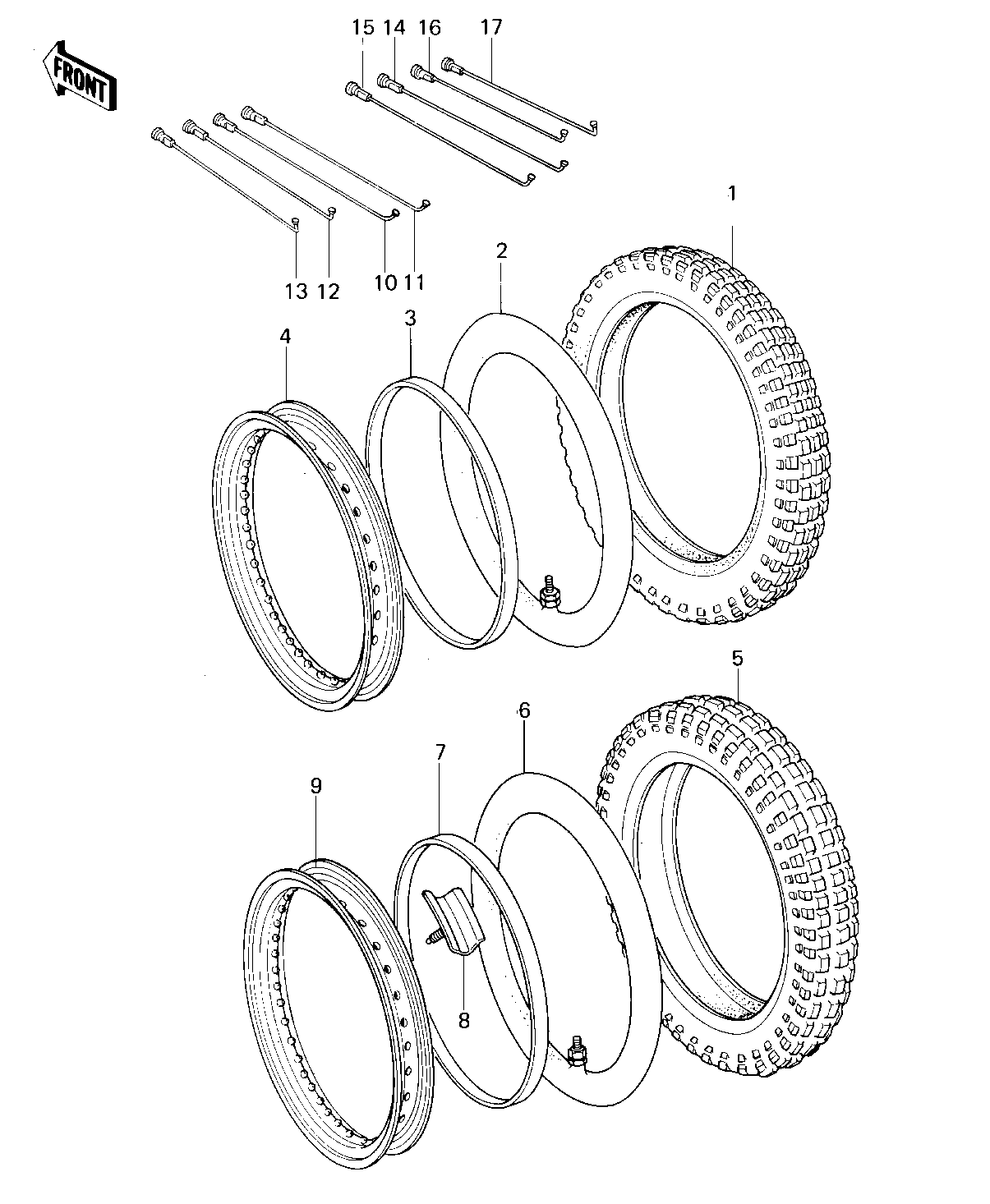

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,70/100-16 39M | 1 | 41002-1553 | 1 | ||
| TUBE-TIRE,FR | 2 | 41022-1112 | 1 | ||
| BAND,RIM,FRONT | 3 | 41023-024 | 1 | ||
| RIM,FRONT | 4 | 41025-1024 | 1 | ||
| TIRE,RR,80/100-14 43M | 5 | 41002-1554 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 410221006 | 1 | ||
| BAND,RIM,4.10-14 | 7 | 41023-1025 | 1 | ||
| PROTECTOR-BEAD 1.60A | 8 | 41024-006 | 1 | ||
| RIM,REAR,1.60X14 | 9 | 41025-1022 | 1 | ||
| SPOKE-ASY,FR RH | 10 | 41027-5024 | 9 | 186.5 M/M X 131.5 | |
| SPOKE-ASY,FR RH | 11 | 41028-5021 | 9 | 185 M/M X 140 | |
| SPOKE-ASY,FR LH | 12 | 41027-5025 | 9 | 160 M/M X 100 | |
| SPOKE-ASY,FR LH | 13 | 41028-5022 | 9 | 159.5 M/M X 84 | |
| SPOKE-ASY,RR LH | 14 | 41027-5028 | 9 | 146 M/M X 127.5 | |
| SPOKE ASSY,RR,LH | 15 | 41028-5025 | 9 | 143 M/M X 127 | |
| SPOKE-ASY,RR RH | 16 | 41027-5029 | 9 | 128 M/M X 107 | |
| SPOKE ASSY,RR,OUTE RH | 17 | 41028-5026 | 9 | 127 M/M X 75 |
| TIRE,FR,70/100-16 39M | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,FR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,FRONT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FRONT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,80/100-14 43M | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.10-14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR-BEAD 1.60A | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,1.60X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR RH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 186.5 M/M X 131.5 |
| SPOKE-ASY,FR RH | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 185 M/M X 140 |
| SPOKE-ASY,FR LH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 160 M/M X 100 |
| SPOKE-ASY,FR LH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 159.5 M/M X 84 |
| SPOKE-ASY,RR LH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 146 M/M X 127.5 |
| SPOKE ASSY,RR,LH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 143 M/M X 127 |
| SPOKE-ASY,RR RH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 128 M/M X 107 |
| SPOKE ASSY,RR,OUTE RH | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 127 M/M X 75 |
