Parts Diagrams |

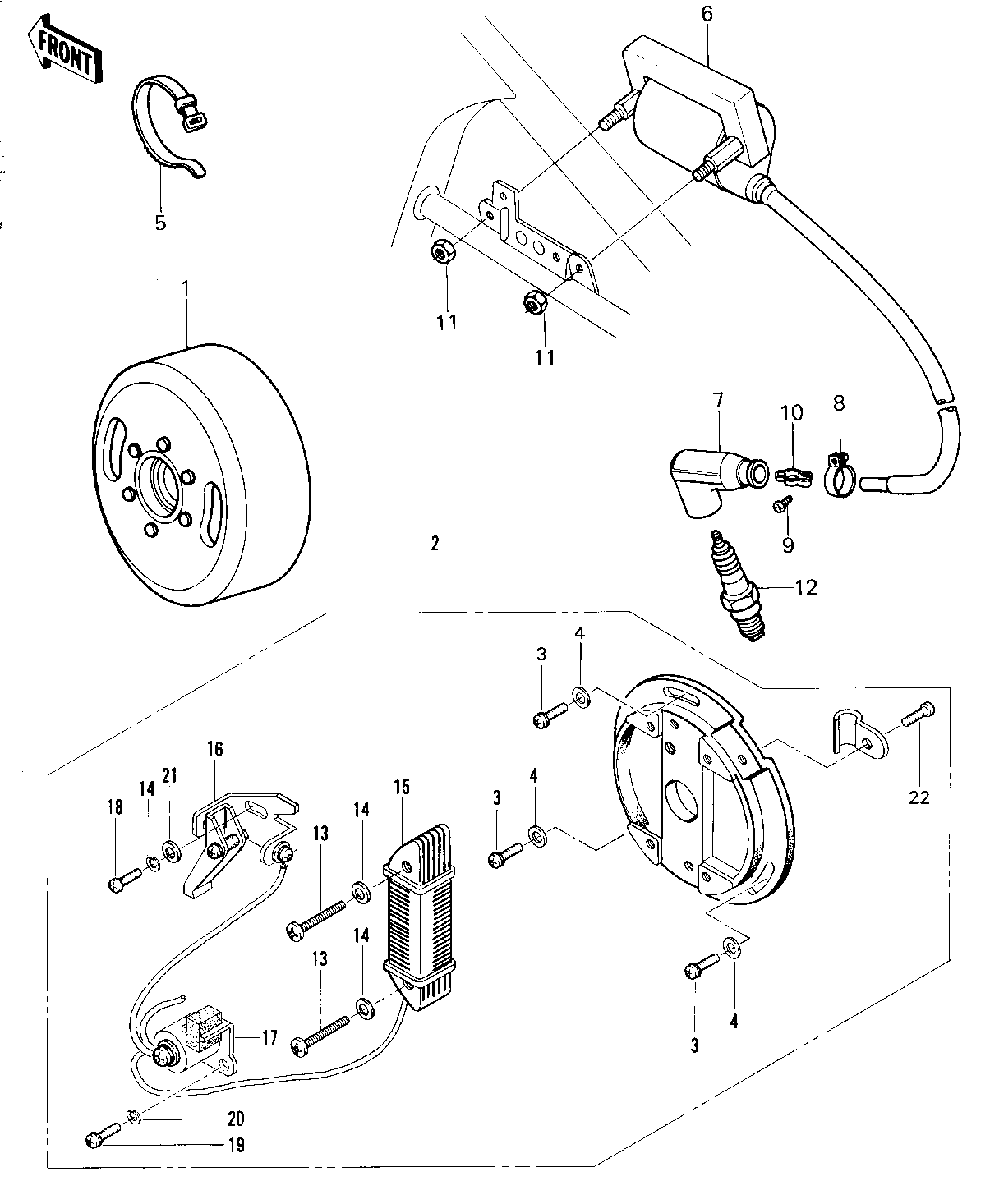

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0645 | 1 | ||
| FLYWHEEL,MAGNETO | 1 | 21007-1019 | 1 | ||
| STATOR ASSY,MAGNETO | 2 | 21003-1028 | 1 | ||
| SCREW-PAN-CROS | 3 | 220B0514 | 3 | ||
| WASHER PLAIN 5MM | 4 | 410B0500 | 3 | ||
| BAND,SHORT | 5 | 92072-030 | 3 | ||
| COIL,IGNITION | 6 | 21121-1033 | 1 | ||
| CAP,SPARK PLUG | 7 | 21130-1006 | 1 | ||
| CAP,SPARK PLUG | 7 | 21130-1006 | 1 | ||
| CLAMP,SPARK PLUG CAP | 8 | 92037-1173 | 1 | ||
| CLAMP,SPARK PLUG CAP | 8 | 92037-1173 | 1 | ||
| SCREW-PAN-CROS | 9 | 220B0310 | 1 | ||
| TERMINAL,PLUG CAP | 10 | 21169-001 | 1 | ||
| NUT 6MM | 11 | 311B0600 | 2 | ||
| SPARK PLUG B8ES | 12 | B8ES | 1 | ||
| SCREW-PAN-CROS,4X18 | 13 | 220B0418 | 2 | ||
| WASHER SPRING 4MM | 14 | 461F0400 | 3 | ||
| COIL,EXCITING | 15 | 21049-1009 | 1 | ||
| BREAKER,CONTACT | 16 | 21008-1016 | 1 | ||
| CONDENCER | 17 | 21013-1006 | 1 | ||
| SCREW PAN HEAD 4X10 | 18 | 220B0410 | 1 | ||
| SCREW PAN HEAD 5X8 | 19 | 220B0508 | 1 | ||
| WASHER SPRING 5MM | 20 | 461F0500 | 1 | ||
| WASHER PLAIN 4MM | 21 | 410B0400 | 1 | ||
| SCREW PAN HEAD 4X6 | 22 | 220B0406 | 1 |
