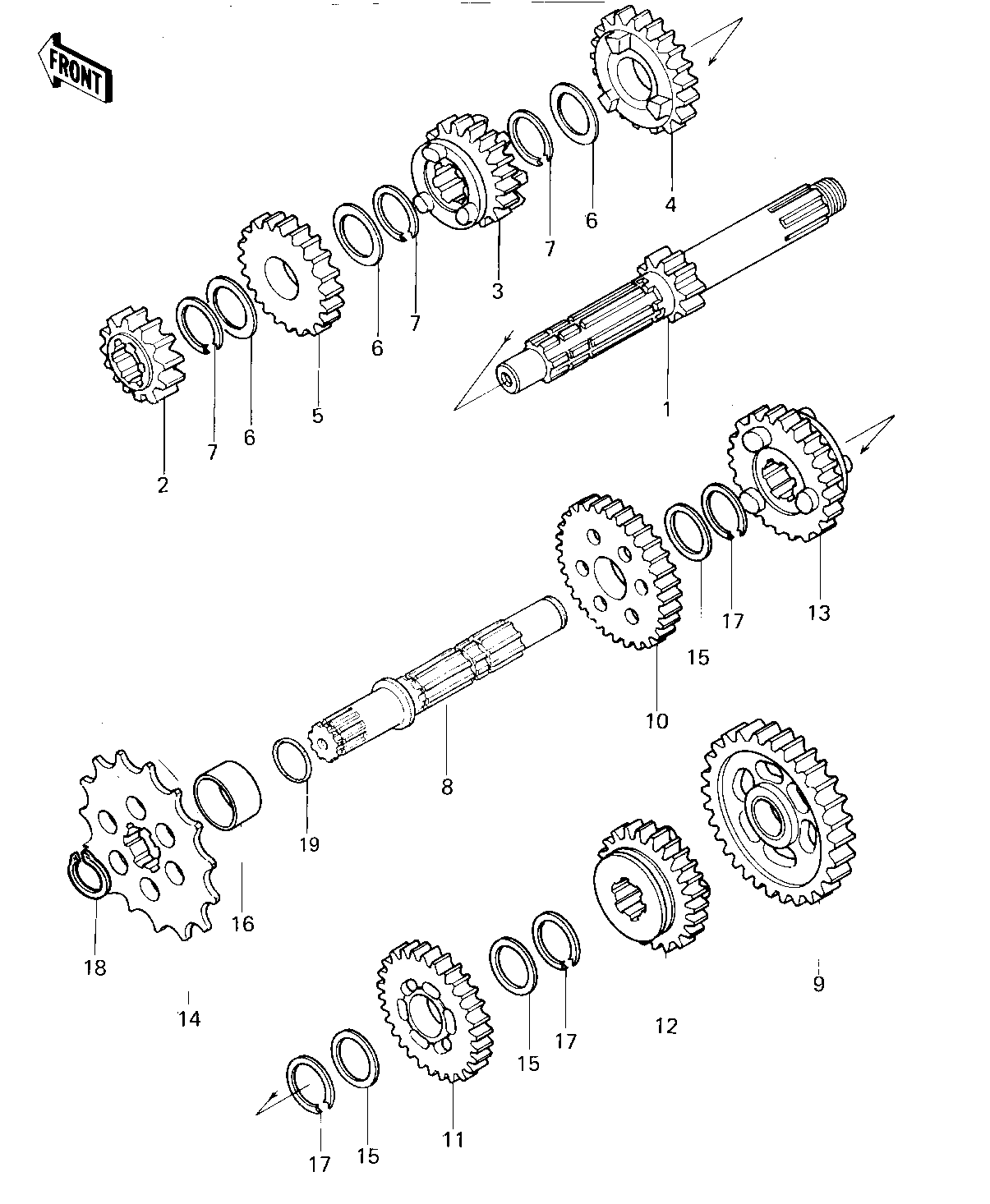

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE,14T | 1 | 13127-1020 | 1 | ||
| 2ND GEAR,DRIVE SHAFT | 2 | 13129-1150 | 1 | ||
| 3RD GEAR,DRIVE SHAFT | 3 | 13129-1151 | 1 | ||
| 4TH GEAR,DRIVE SHAFT | 4 | 13129-1110 | 1 | ||
| TOP GEAR,DRIVE SHAFT | 5 | 13129-1112 | 1 | ||
| SPACER,17.2X23X0.5 | 6 | 92026-1037 | 3 | ||
| RING,SNAP | 7 | 92033-1060 | 3 | ||
| SHAFT,OUTPUT | 8 | 13128-1024 | 1 | ||
| LOW GEAR,OUTPUT SHAFT | 9 | 13129-1152 | 1 | ||
| 2ND GEAR,OUTPUT SHAFT | 10 | 13129-1153 | 1 | ||
| 3RD GEAR,OUTPUT SHAFT | 11 | 13129-1109 | 1 | ||
| 4TH GEAR,OUTPUT SHAFT | 12 | 13129-1111 | 1 | ||
| TOP GEAR,OUTPUT SHAFT | 13 | 13129-1113 | 1 | ||
| SPROCKET,ENGINE,14T | 14 | 13144-1022 | 1 | ||
| SPROCKET,ENGINE,13T | 14 | 13144-1023 | 1 | ||
| SPROCKET,ENGINE,15T | 14 | 13144-1024 | 1 | ||
| SPACER,18.2X24X0.5 | 15 | 92026-1039 | 3 | ||
| COLLAR,ENG SPROCKET | 16 | 92027-1077 | 1 | ||
| CIRCLIP | 17 | 92033-028 | 3 | ||
| CIRCLIP, 20MM | 18 | 480J2000 | 1 | ||
| "0" RING | 19 | 92055-022 | 1 |
| SHAFT,DRIVE,14T | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,DRIVE SHAFT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 3RD GEAR,DRIVE SHAFT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 4TH GEAR,DRIVE SHAFT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP GEAR,DRIVE SHAFT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,17.2X23X0.5 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING,SNAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OUTPUT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW GEAR,OUTPUT SHAFT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,OUTPUT SHAFT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 3RD GEAR,OUTPUT SHAFT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 4TH GEAR,OUTPUT SHAFT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP GEAR,OUTPUT SHAFT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,14T | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,13T | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,15T | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,18.2X24X0.5 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENG SPROCKET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP, 20MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
