Parts Diagrams |

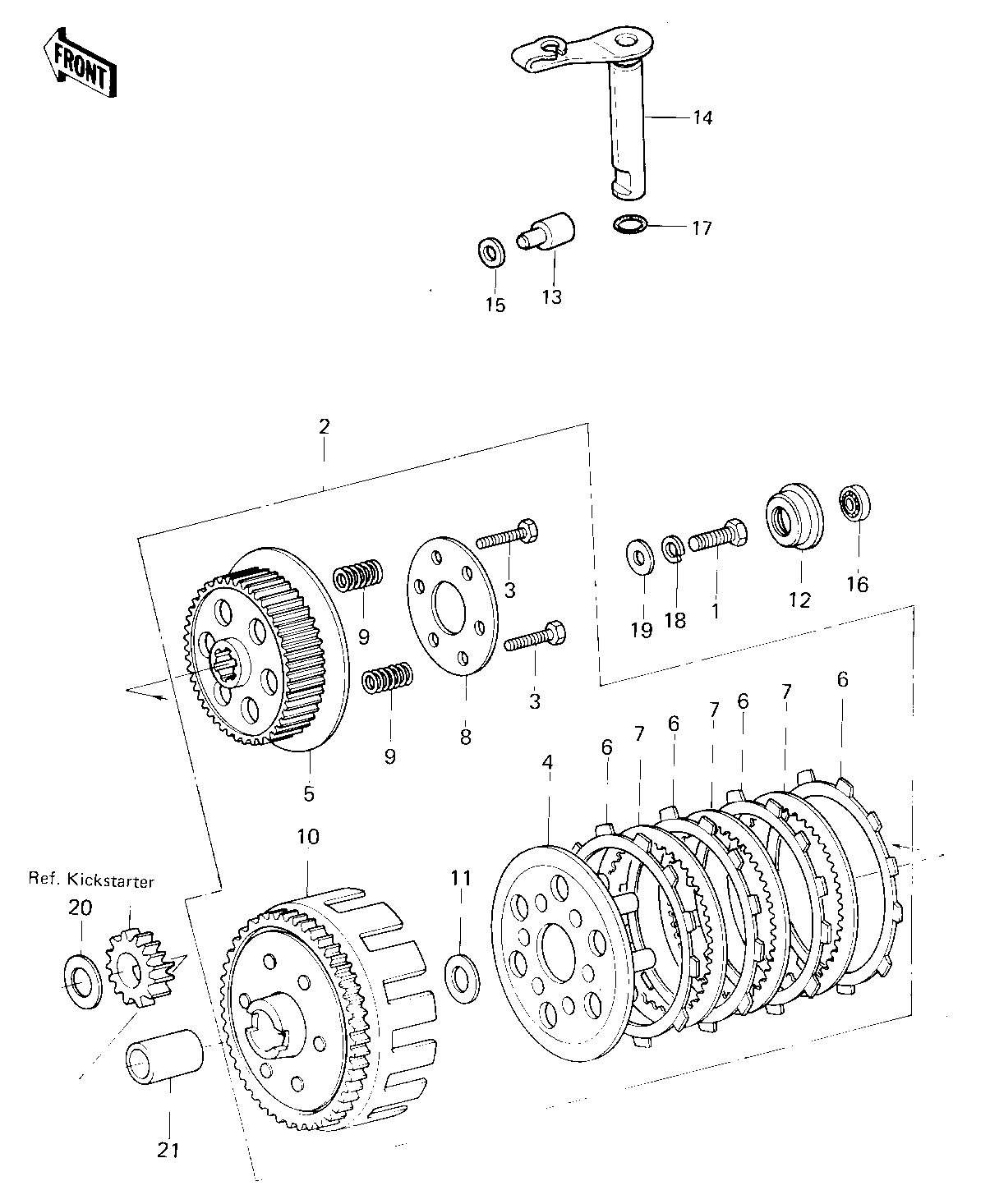

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X20 | 1 | 115G0820 | 1 | ||
| CLUTCH-ASSY | 2 | 13081-1028 | 1 | ||
| BOLT | 3 | 110G0520 | 6 | ||
| WHEEL,CLUTCH | 4 | 13086-1002 | 1 | ||
| HUB-CLUTCH | 5 | 13087-1113 | 1 | ||
| PLATE,CLUTCH FRICTION | 6 | 13088-1010 | 4 | ||
| PLATE-CLUTCH,STEEL | 7 | 13089-1009 | 3 | ||
| HOLDER,CLUTCH SPRING | 8 | 13091-1115 | 1 | ||
| SPRING,CLUTCH | 9 | 92081-1175 | 6 | ||
| HOUSING,CLUTCH | 10 | 13095-1018 | 1 | ||
| SPACER,17X30X2 | 11 | 92026-1034 | 1 | ||
| HOLDER,CLUTCH PUSHER | 12 | 13091-1038 | 1 | ||
| PUSHER,CLUTCH | 13 | 13114-1004 | 1 | ||
| LEVER,CLUTCH RELEASE | 14 | 13236-1019 | 1 | ||
| BEARING-BALL | 16 | 92045-1211 | 1 | ||
| "O" RING,8.8MM | 17 | 92055-099 | 1 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
| WASHER,8.5X20X1.6 | 19 | 92022-1561 | 1 | ||
| WASHER,17.3X28X1.0 | 20 | 92022-255 | 1 | ||
| BUSHING,CLUTCH | 21 | 92028-1057 | 1 |
| BOLT,8X20 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WHEEL,CLUTCH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,STEEL | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH SPRING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,17X30X2 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSHER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER,CLUTCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,8.8MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1.0 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
