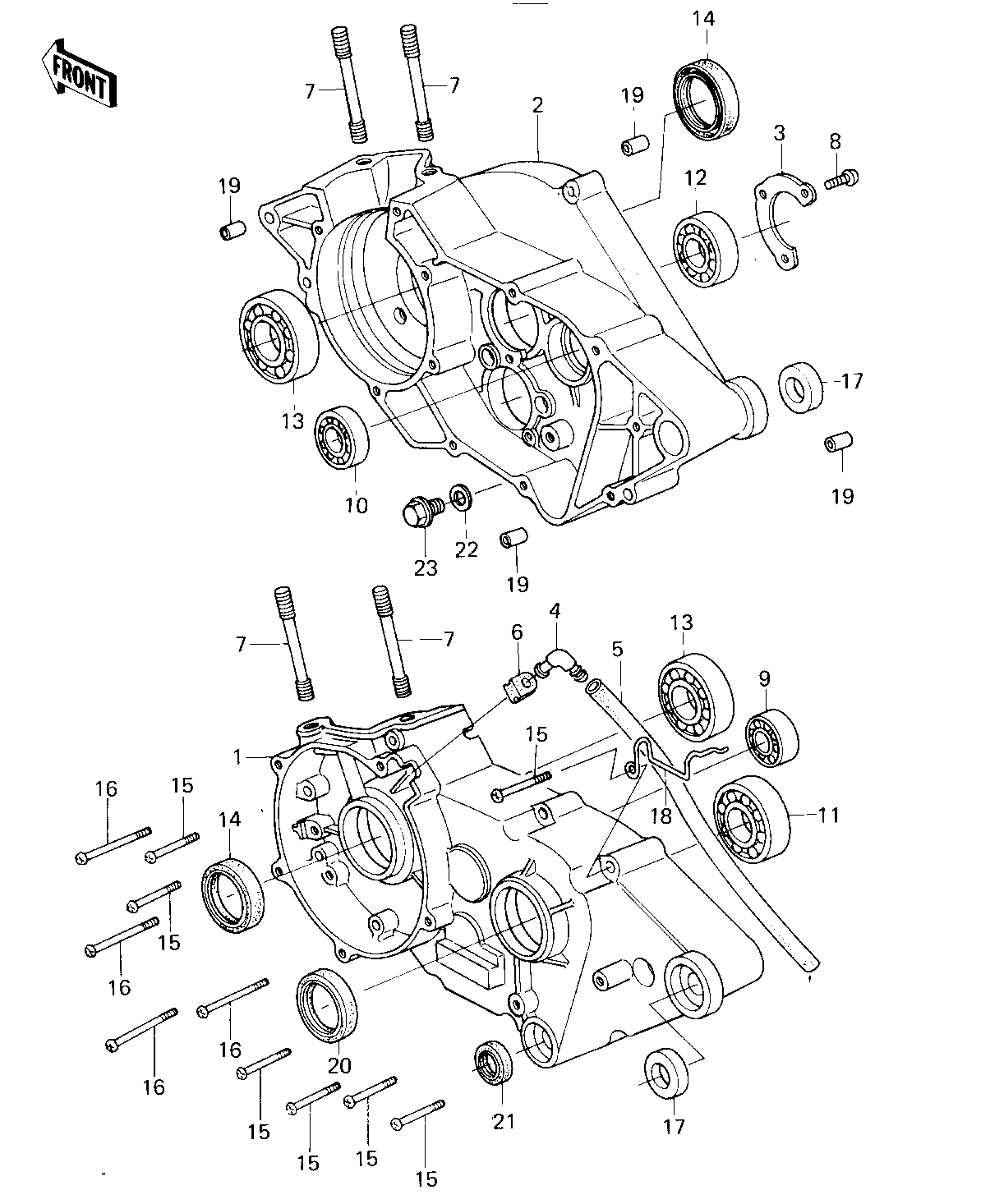

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKCASE,L.H | 1 | 14002-1089 | 1 | ||
| CRANKCASE,R.H | 2 | 14002-1090 | 1 | ||
| PLATE,POSITION,DRIVE | 3 | 14014-1010 | 1 | ||
| BREATHER ASSY | 4 | 14069-1001 | 1 | ||
| TUBE,6X9X750 | 5 | 92059-1372 | 1 | ||
| GROMMET | 6 | 92071-042 | 1 | ||
| STUD-8X110 | 7 | 172G08110 | 4 | ||
| SCREW PAN HEAD 6X14 | 8 | 220B0614 | 3 | ||
| BEARING-BALL | 9 | 92045-1235 | 1 | ||
| BEARING BALL #6002 | 10 | 601B6002 | 1 | ||
| BEARING BALL #6004 | 11 | 601B6004 | 1 | ||
| BEARING BALL #6203 | 12 | 601B6203 | 1 | ||
| BEARING BALL #6205 | 13 | 601B6205 | 2 | ||
| SEAL-OIL | 14 | 92049-1250 | 2 | ||
| SCREW PAN HEAD 6X35 | 15 | 220B0635 | 8 | ||
| SCREW PAN HEAD 6X45 | 16 | 220B0645 | 4 | ||
| COLLAR,12.6X26X7 | 17 | 92027-1147 | 2 | ||
| CLAMP,TUBE | 18 | 92037-1128 | 1 | ||
| PIN-DOWEL | 19 | 92042-007 | 4 | ||
| OIL SEAL SC25376 | 20 | 92050-013 | 1 | ||
| OIL SEAL,TB13225.5 | 21 | 92051-005 | 1 | ||
| GASKET CHECK VALVE | 22 | 92065-058 | 1 | ||
| PLUG | 23 | 92066-1241 | 1 |
| CRANKCASE,L.H | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE,R.H | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,POSITION,DRIVE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,6X9X750 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD-8X110 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6002 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6004 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6203 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6205 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X35 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X45 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.6X26X7 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL SC25376 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET CHECK VALVE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
