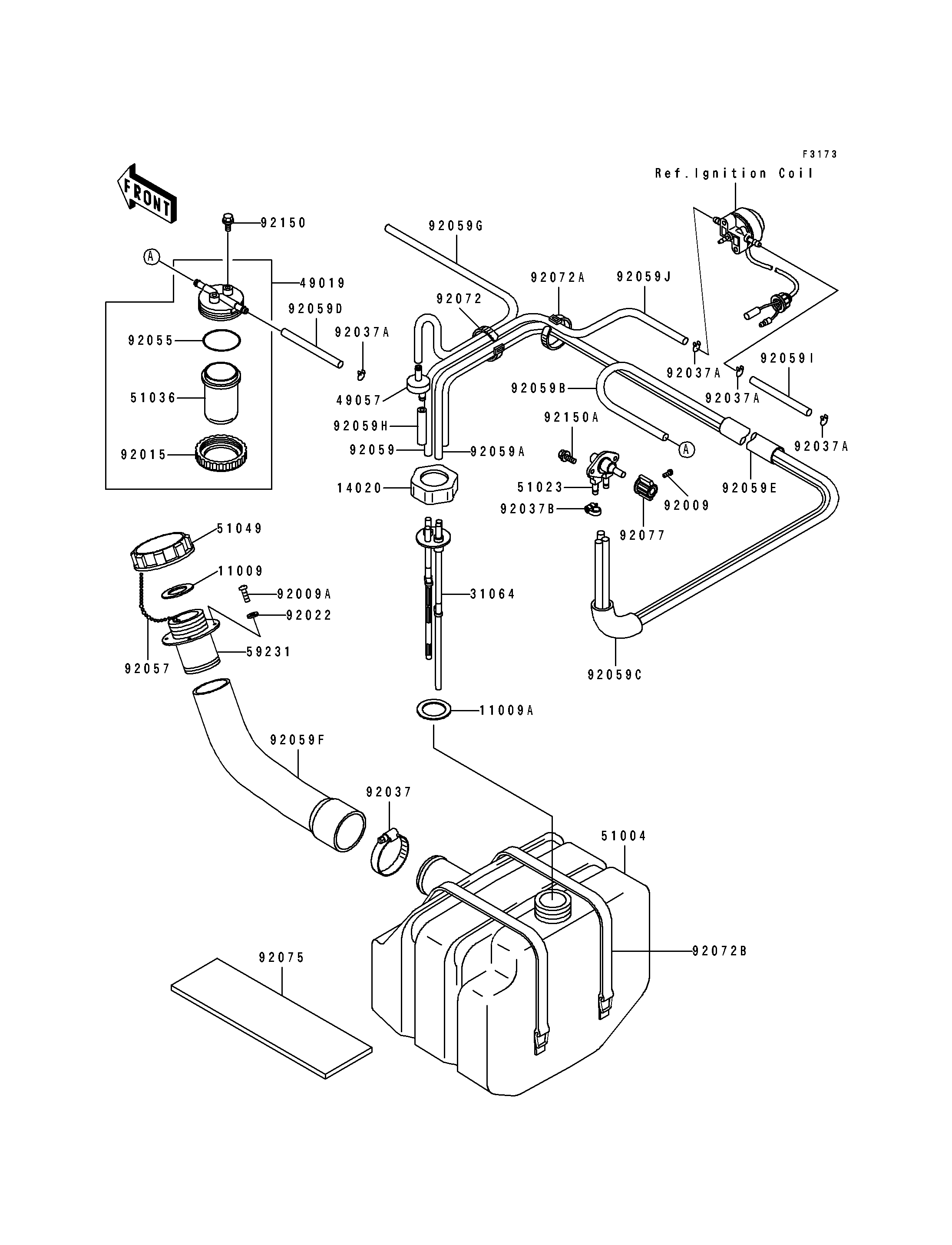

1990 550 SX - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET 11009A 92065-504 1
RETAINER 14020 23072-501 1
PIPE-COMP,FUEL 31064 31064-3703 1
FILTER-FUEL 49019 49019-3706 1
VALVE-RELIEF 49057 49057-3001 1
TANK-FUEL 51004 51004-3702 1
TAP-ASSY,FUEL 51023 51023-3705 1
CUP,FUEL FILTER 51036 51036-3702 1
CAP-TANK 51049 51049-3001 1
FILLER,FUEL TANK 59231 59231-3001 1
SCREW,4X8 92009 92009-3729 1
SCREW 92009A 92011-562 4
NUT,RING 92015 92015-3013 1
WASHER 92022 92022-563 4
CLAMP 92037 92037-3009 1
CLAMP 92037A 92037-3024 4
CLAMP 92037B 92037-551 3
RING-O,FILTER CUP 92055 92055-3006 1
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,FUEL,"ON",6X1180 92059 92059-3005 1
TUBE,FUEL,"RESERVE" 92059A 92059-3006 1
TUBE,6X10X960 92059B 92059-3007 1
TUBE,GUARD 92059C 92059-3008 1
TUBE,6X10X200 92059D 92059-3011 1
TUBE,VINYL,22X350 92059E 92059-3018 1
TUBE,FUEL INLET 92059F 92059-3020 1
TUBE,FUEL,6X10X940 92059G 92059-3025 1
TUBE,FUEL,5.8X12.2X55 92059H 92059-3026 1
TUBE,FUEL,6X235 92059I 92059-3036 1
TUBE,FUEL,6X680 92059J 92059-3037 1
BAND,L=123 92072 92072-030 1
BAND,L=149 92072A 92072-031 1
BAND,FUEL TANK 92072B 92072-521 2
DAMPER,FUEL TANK 92075 92075-521 2
KNOB,FUEL TAP 92077 92077-503 1
BOLT,6X12 92150 92150-3709 2
BOLT,5X12 92150A 92150-3760 2
