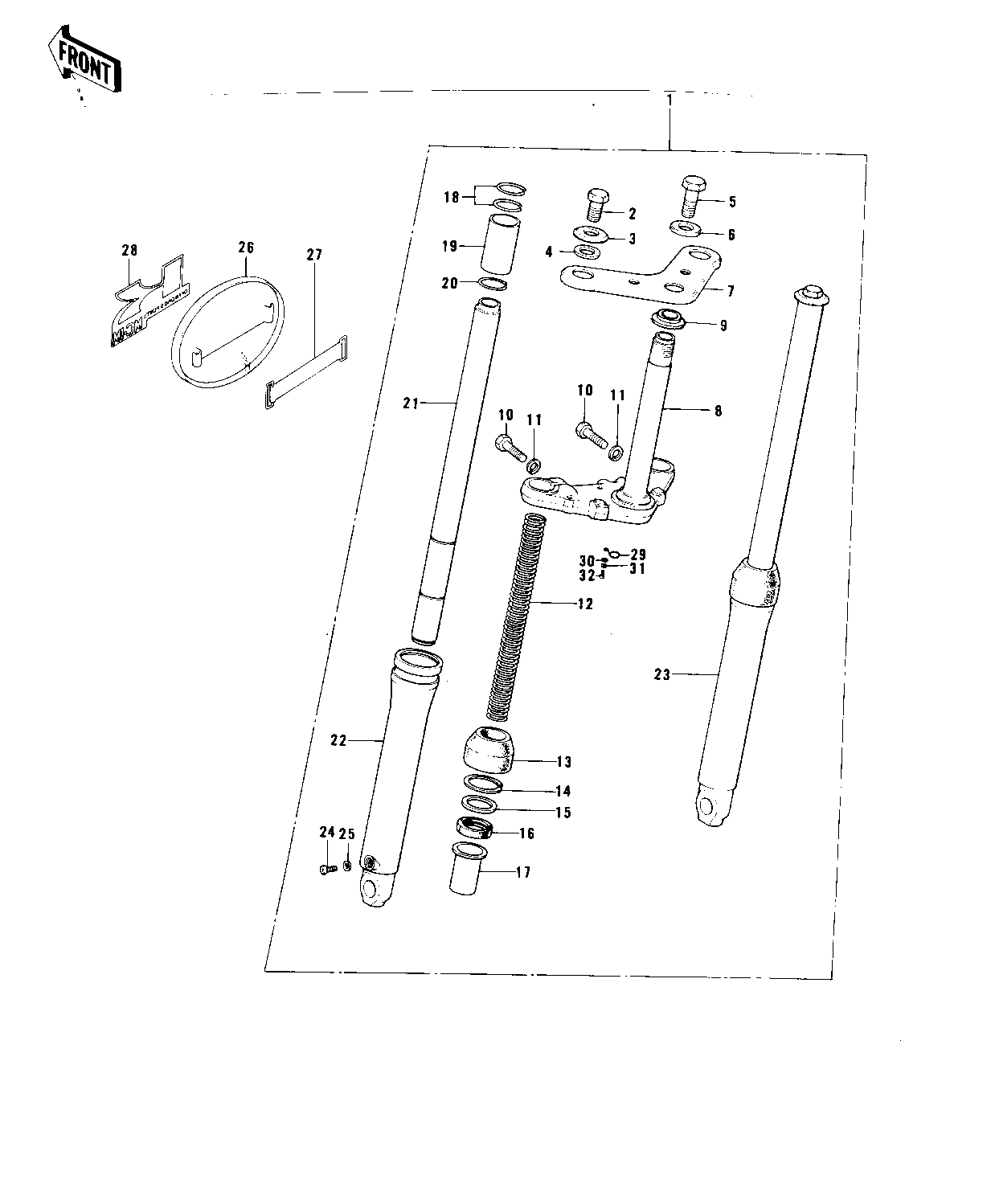

1976 KD80 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-161
BOLT 2 92001-1742
WASHER 3 92022-1381
GASKET,FORK TOP BOLT 4 44045-053
BOLT-UPSET,10X30 5 112G1030
WASHER 6 92022-1381
HEAD,STEERING 7 44039-056
STEM,STEERING 8 44037-069
CONE LOWER BEARING 9 92047-004
BOLT,HEX HEAD 10X35 10 92001-1252
WASHER SPRING 10MM 11 461F1000
SPRING,FORK INNER 12 44026-051
DUST SHIELD,FORK 13 44010-024
CIRCLIP,40MM 14 44044-016
WASHER,FORK OUTER TUB 15 44043-054
SEAL-OIL,OUTER TUBE 16 92049-1075
GUIDE,FORK INNER TUBE 17 44015-016
RING,INNER TUBE GUIDE 18 44020-003
PISTON,FORK 19 44018-007
CIRCLIP,FORK PISTON 20 44044-017
TUBE,FORK INNER 21 44013-051
TUBE,LH,FORK OUTER 22 44005-052
TUBE,RH,FORK OUTER 23 44006-050
SCREW PAN HEAD 4X6 24 220B0406
GASKET,FORK DRAIN PLG 25 44045-046
PLATE,FRONT NUMBER 26 58029-025
BAND BATTERY 27 92072-006
EMBLEM,NUMBER PLATE 28 56018-179
EMBLEM NUMBER PLAT 28 56018-235 KD80-A2
CLAMP-CABLE 29 92037-046 KD80-A2
WASHER PLAIN 6MM 30 411B0600 KD80-A2
WASHER SPRING 6MM 31 461F0600 KD80-A2
BOLT-UPSET,6X12 32 112G0612 KD80-A2
