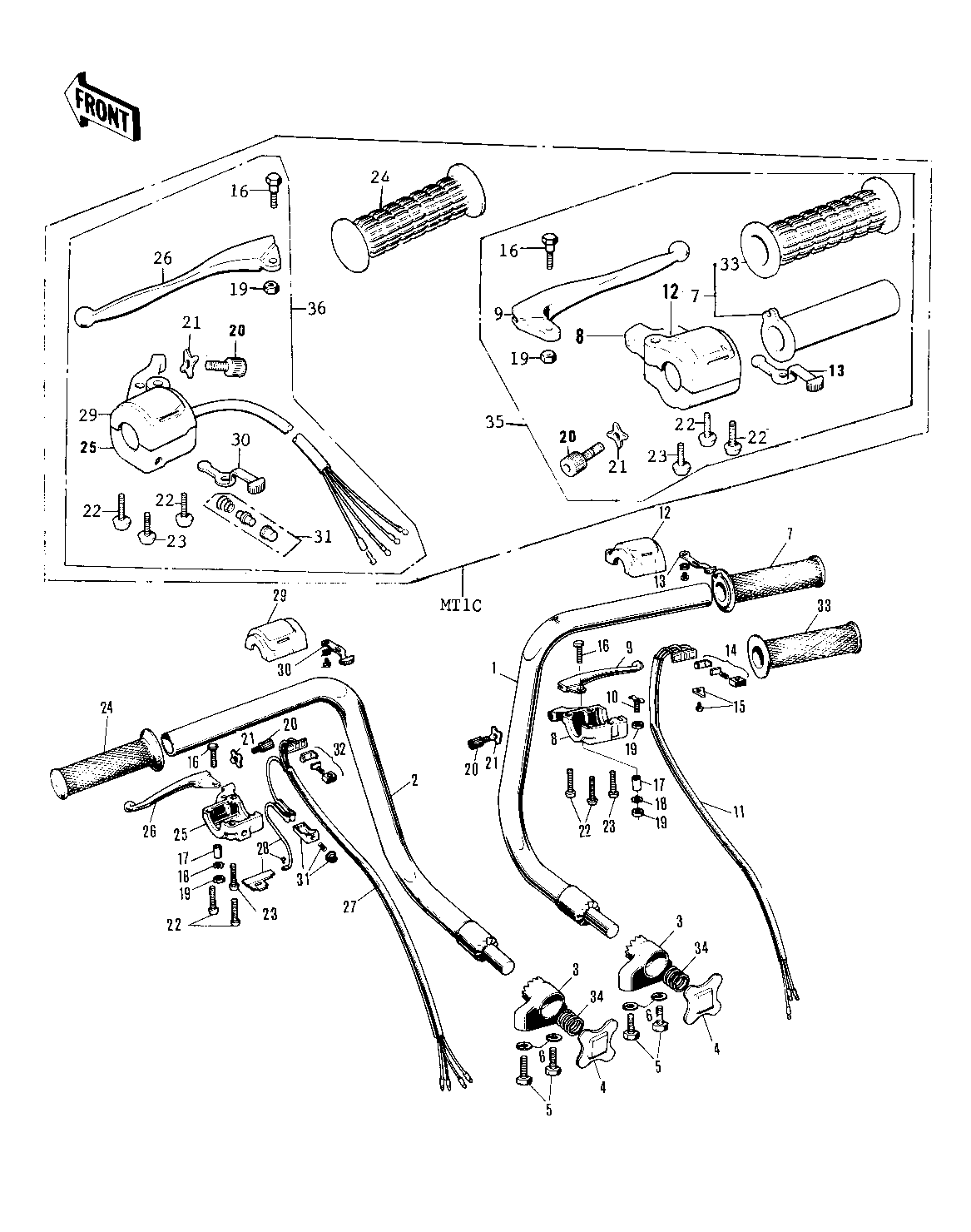

1971 Mini-Trail - HANDLEBAR ('71-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR,RH 1 46007-010 1
HANDLEBAR,LH 2 46007-011 1
HOLDER-HANDLEBAR 3 46012-009 2
KNOB-HANDLEBAR HOLDER 4 46129-001 2
BOLT HEX HEAD 10X18 5 113B1018 4
WASHER SPRING 10MM 6 461F1000 4
GRIP-ASSY,RH 7-21,2 46017-1071 1
GRIP ASSY THROTTLE 7 46019-005 1
GRIP ASSY,THROTTLE 7 46019-024 1 MT1C
CASE R.H SWITCH LOWER 8 46022-012 1
CASE,R.H LOWER 8 46022-017 1 MT1C
LEVER FRONT BRAKE 9 46058-004 1
SPRING THROTTLE GRIP 10 46024-002 1
WIRING HARNESS R.H SW 11 46032-010 1
GRIP-ASSY,RH 12 46017-1071 1
CASE,R.H. UPPER 12 46040-015 1 MT1C
KNOB ASSY R.H SWITCH 13 46043-002 1
SLIDE BLOCK AY R.H SW 14 46045-004 1
HOLDER WIRING HARNESS 15 46085-012 1
BOLT HEX HEAD 5X20 16 92007-020 2
BOLT,HEX HEAD,5X22 16 92007-046 2 MT1C
COLLAR LEVER 17 46059-011 2
WASHER LOCK 5MM 18 464H0500 2
NUT 5MM 19 312B0500A 3
NUT-LOCK,5MM 19 92019-014 2 MT1C
SCREW,CABLE ADJUST 20 46055-010 2
NUT LOCK ADJUST SCREW 21 46056-001 2
SCREW PAN HEAD 5X20 22 220B0520A 4
SCREW PAN HEAD 5X18 23 220B0518A 2
GRIP ASSY L.H 15-32 46074-017 1
RUBBER L.H GRIP 24 46075-007 1
RUBBER,L.H GRIP 24 46075-020 1 MT1C
CASE L.H SWITCH LOWER 25 46077-008 1
CASE, L.H. LOWER 25 46077-026 1 MT1C
LEVER-CLUTCH 26 46092-015 1
LEVER-CLUTCH 26 46092-015 1 MT1C
WIRING HARNESS L.H SW 27 46082-009 1
HOLDER L.H SWITCH 28 46085-008 1
CASE L.H SWITCH UPPER 29 46086-007 1
CASE,L.H UPPER 29 46086-025 1
KNOB ASSY L.H SWITCH 30 46088-001 1
SWITCH ASSY LH BUTTON 31 46078-003 1
SLIDE BLOCK AY L.H SW 32 46089-002 1
RUBBER R.H GRIP 33 46061-009 1
RUBBER,R.H.GRIP 33 46061-015 1 MT1C
SPRING 34 92081-078 2
SPRING 34 92081-090 2 MT1C
GRIP ASSY,R.H 35 46017-077 1 MT1C
GRIP ASSY,L.H 36 46074-092 1 MT1C
