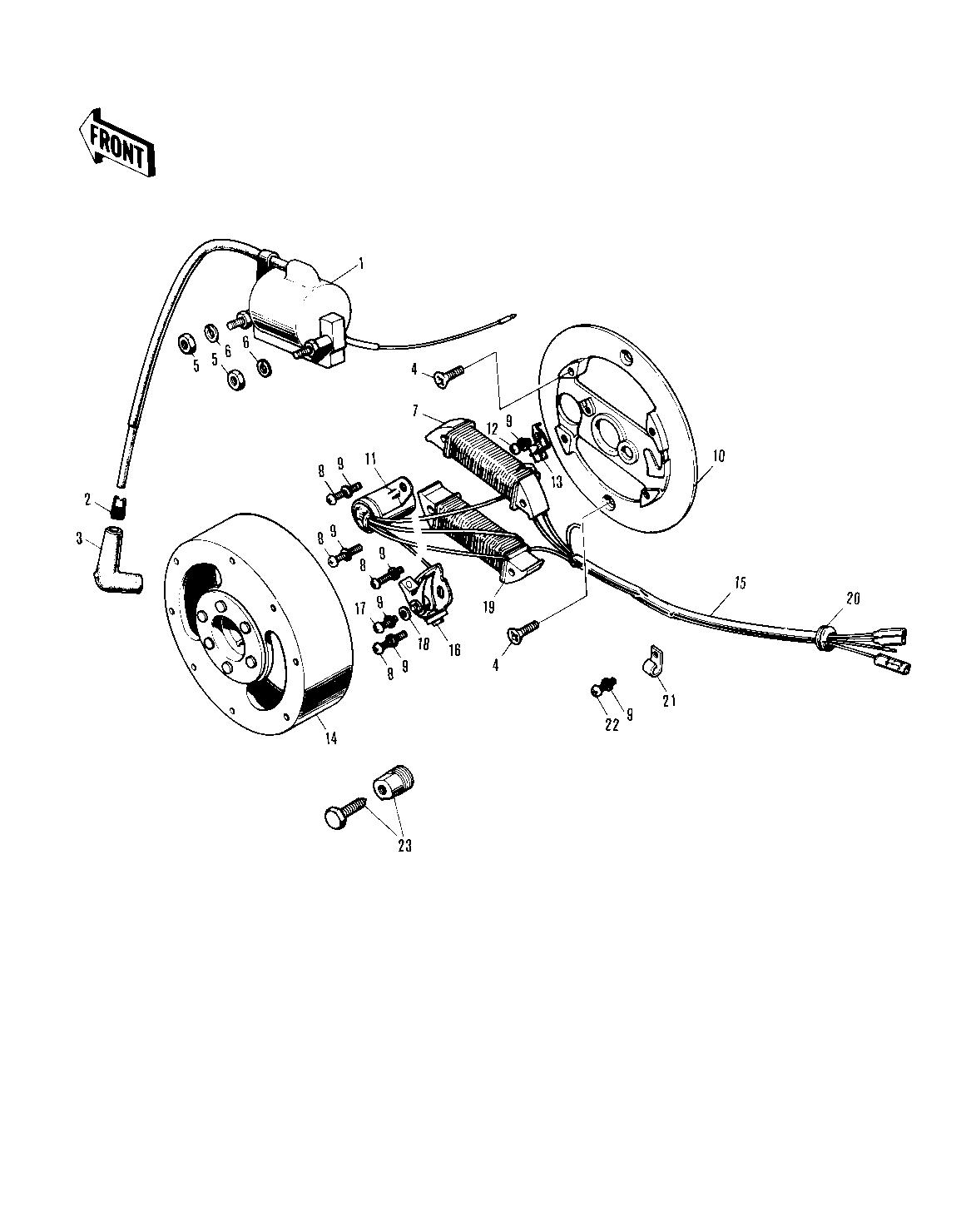

1971 Mini-Trail - IGNITION/GENERATOR ('71-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL-IGNITION | 1 | 21121-043 | 1 | ||
| SPRING-SPARK PLUG CAP | 2 | 92101-001 | 1 | ||
| CAP SPARK PLUG | 3 | 21130-009 | 1 | ||
| SCREW CNTSNK HD 6X16 | 4 | 221B0616 | 2 | ||
| NUT 6MM | 5 | 311B0600 | 2 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 2 | ||
| MAGNETO ASSY | 7 22 | 21002-040 | 1 | ||
| COIL LIGHTING | 7 | 21047-004 | 1 | ||
| SCREW PAN HEAD 4X25 | 8 | 220B0425 | 4 | ||
| WASHER SPRING 4MM | 9 | 461F0400 | 7 | ||
| BASE MAGNETO | 10 | 21048-004 | 1 | ||
| CONDENSER | 11 | 21013-001 | 1 | ||
| SCREW PAN HEAD 4X10 | 12 | 220B0410 | 1 | ||
| FELT OIL | 13 | 21019-005 | 1 | ||
| FLYWHEEL | 14 | 21050-003 | 1 | ||
| WIRING HARNESS MAG | 15 | 21029-001 | 1 | ||
| BREAKER ASSY CONTACT | 16 | 21008-002 | 1 | ||
| SCREW-PAN-CRSOSS,4X12 | 17 | 220B0412 | 1 | ||
| WASHER PLAIN 4MM | 18 | 410B0400 | 1 | ||
| COIL PRIMARY IGNITION | 19 | 21049-003 | 1 | ||
| GROMMET-WIRING HARN | 20 | 92071-007 | 1 | ||
| CLAMP WIRING HARNESS | 21 | 21037-002 | 1 | ||
| SCREW PAN HEAD 4X6 | 22 | 220B0406 | 1 |
