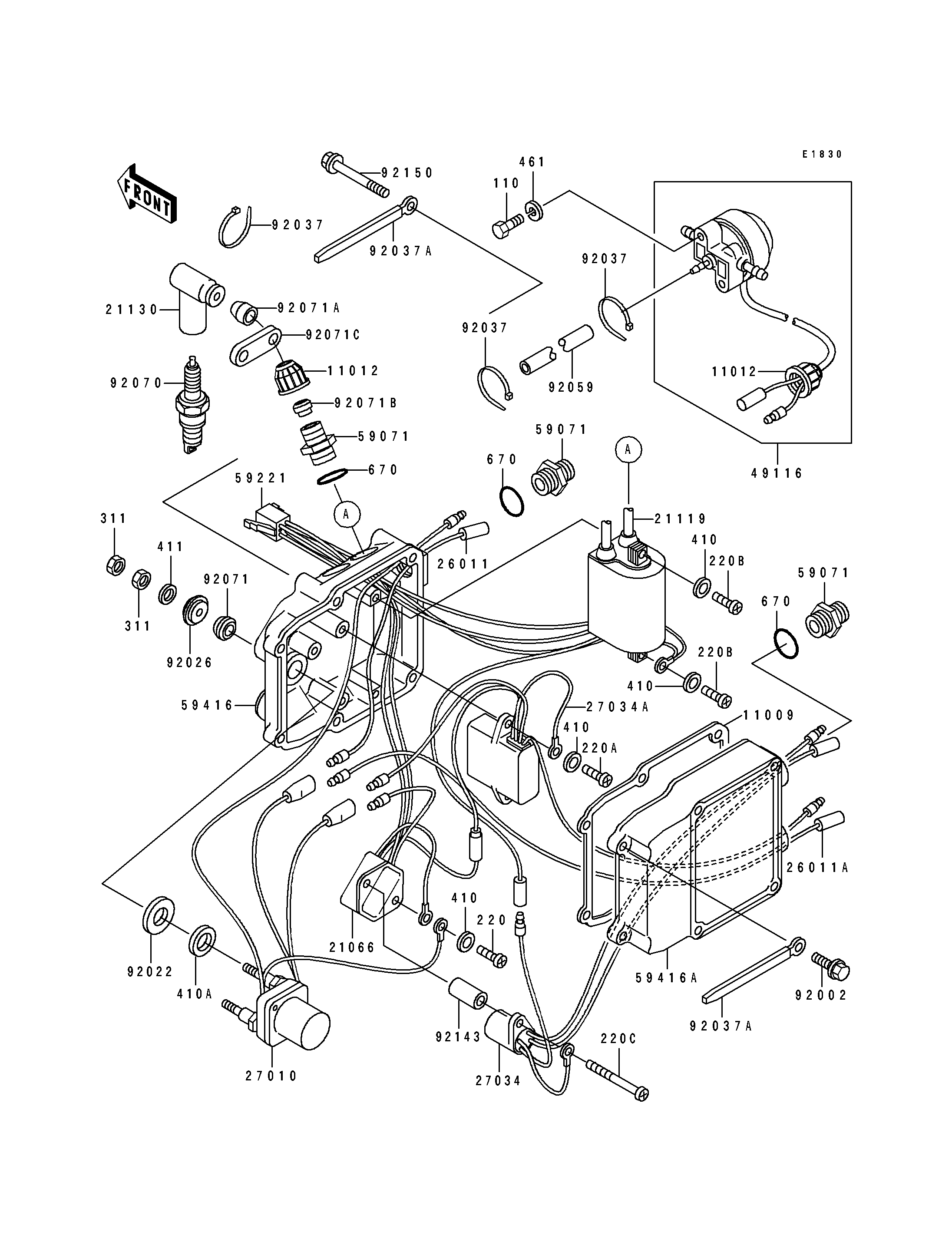

1990 550 SX - Ignition Coil

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELECTRIC CASE 11009 11009-3045 1
CAP 11012 11012-3005 3
REGULATOR-VOLTAGE 21066 21066-3003 1
IGNITER,CDI 21119 21119-3016 1
CAP-SPARK PLUG 21130 21130-1062 2
WIRE-LEAD,ORANGE 26011 26011-3003 1
WIRE-LEAD,RED/WHITE 26011A 26011-3008 1
SWITCH,MAGNETIC 27010 27010-3007 1
RELAY,STOP SWITCH 27034 27034-3002 1
RELAY,RPM LIMITER 27034A 27034-3004 1
VALVE-ASSY,RPM LIMITER 49116 49116-3001 1
JOINT 59071 59071-3001 5
CONNECTOR-CORD 59221 59221-505 1
CASE-ELECTRIC,FR 59416 59416-3004-YR 1
CASE-ELECTRIC,RR 59416A 59416-3005-YR 1
BOLT,6X25 92002 92002-3714 2
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 4
CLAMP,L=100 92037A 92037-3736 2
TUBE,FUEL,2.5X185 92059 92059-3038 1
PLUG-SPARK,BR8ES(NGK) 92070 92070-2078 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-517 2
GROMMET 92071B 92071-527 2
GROMMET 92071C 92071-529 1
COLLAR 92143 92027-3013 1
BOLT,6X80 92150 92150-3761 4
BOLT,6X14 110 110R0614 2
SCREW-PAN-CROS,6X12 220 220B0612 1
SCREW-PAN-CROS,6X16 220A 220B0616 2
SCREW-PAN-CROS,6X20,WHITE 220B 220B0620 2
SCREW-PAN-CROS,6X45 220C 220B0645 1
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,6MM 410 410B0600 6
WASHER-PLAIN-SMALL,10MM 410A 410B1000 2
WASHER-PLAIN,6MM 411 411S0600 2
WASHER-SPRING,6MM 461 461S0600 2
O RING,16MM 670 670B2016 5
