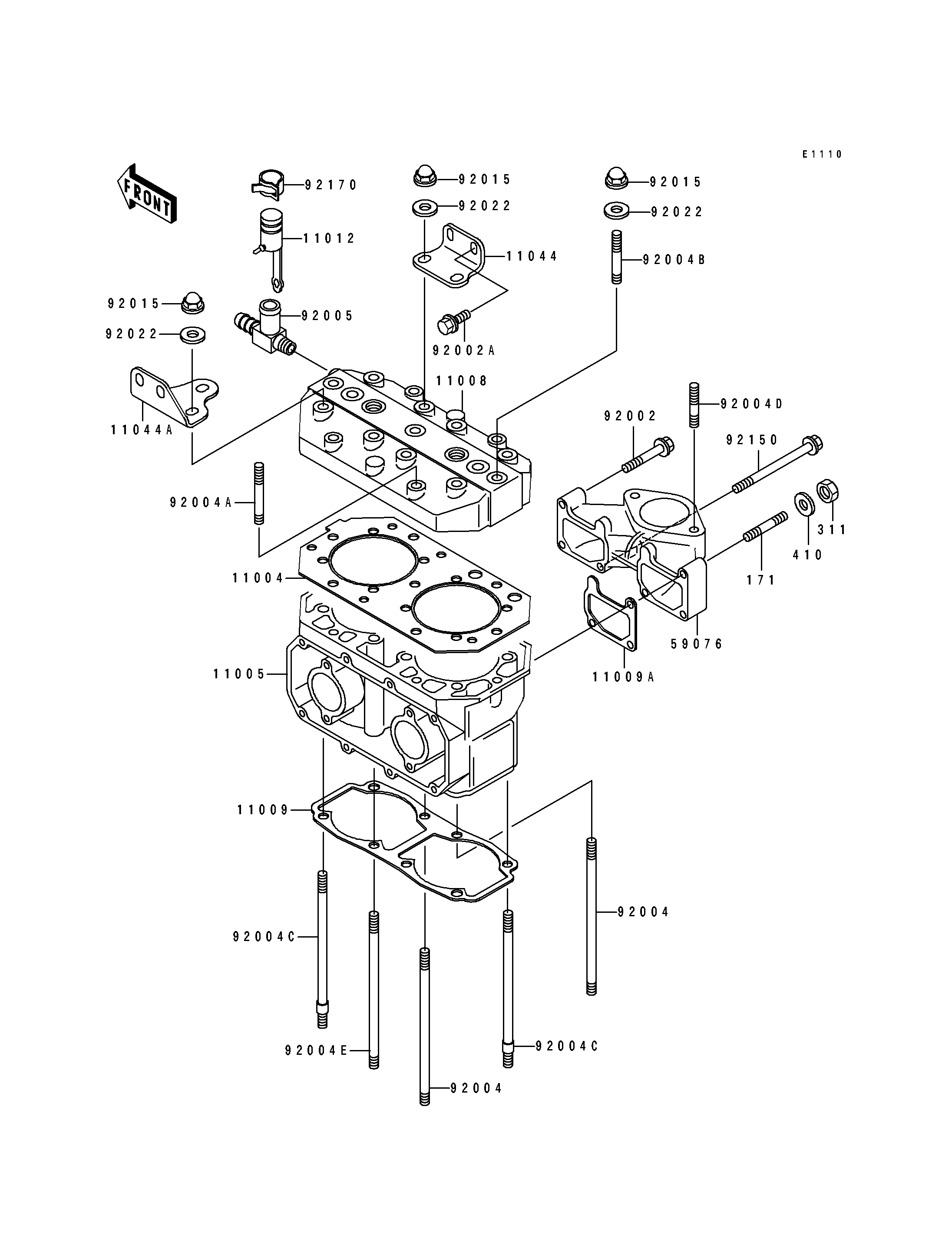

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 11004 | 11004-3024 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-3703 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-2059-YR | 1 | ||
| GASKET,CYLINDER | 11009 | 11009-3054 | 1 | ||
| GASKET,INTAKE | 11009A | 16062-510 | 2 | ||
| CAP | 11012 | 11012-3744 | 1 | ||
| BRACKET,CARBURETOR | 11044 | 11044-2074 | 1 | ||
| BRACKET,MUFFLER | 11044A | 11044-2075 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-2052-YR | 1 | ||
| BOLT,6X35 | 92002 | 92002-3715 | 3 | ||
| BOLT,6X16 | 92002A | 92002-3728 | 2 | ||
| STUD,8X170 | 92004 | 92004-2084 | 2 | ||
| STUD,8X42 | 92004A | 92004-3016 | 4 | ||
| STUD,8X50 | 92004B | 92004-3017 | 3 | ||
| STUD,8X167 | 92004C | 92004-3020 | 2 | ||
| STUD,8X27.5 | 92004D | 92004-3022 | 2 | ||
| STUD,8X167 | 92004E | 92004-507 | 4 | ||
| FITTING | 92005 | 92005-3704 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 15 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 15 | ||
| BOLT,6X70 | 92150 | 92150-3753 | 2 | ||
| CLAMP | 92170 | 92170-3714 | 1 | ||
| BOLT-STUD,6X35 | 171 | 171R0635 | 1 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 1 |
