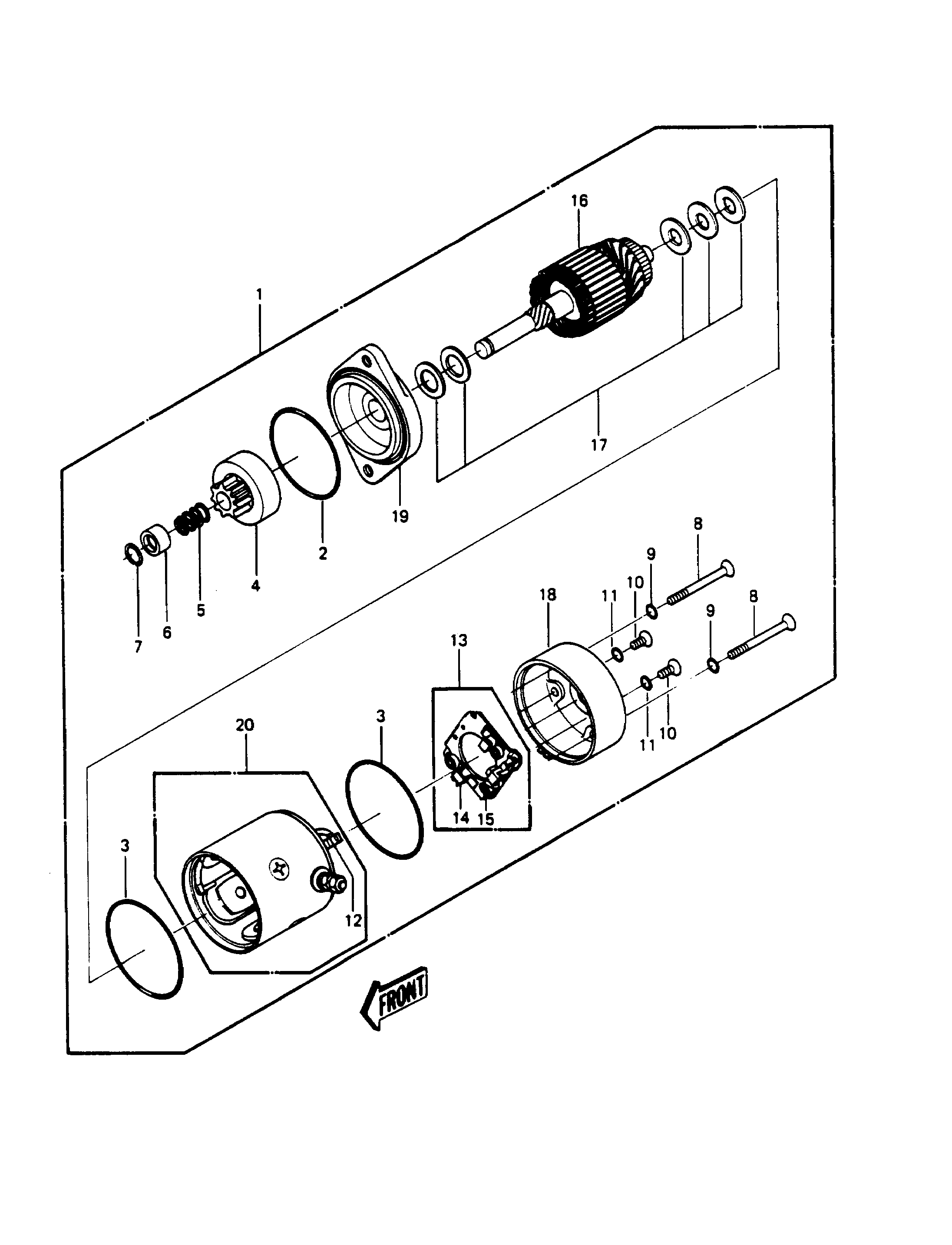

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW,4X8 | 10 | 92011-550 | 2 | ||
| O RING,5MM | 11 | 670B1505 | 2 | ||
| BRUSH,(+) | 12 | 21039-3003 | 2 | ||
| HOLDER-ASSY,BRUSH | 13 | 14079-3002 | 1 | ||
| BRUSH,(-) | 14 | 21039-3004 | 1 | ||
| SPRING,BRUSH | 15 | 92081-540 | 3 | ||
| ARMATURE | 16 | 21080-3001 | 1 | ||
| WASHER,SET | 17 | 92022-3044 | 1 | ||
| COVER,RR | 18 | 14025-3027 | 1 | ||
| COVER,FR | 19 | 14025-3028 | 1 | ||
| YOKE | 20 | 49117-3002 | 1 | ||
| STARTER-ELECTRIC | 1 | 21163-3003-YR | 1 | ||
| RING-O | 2 | 92055-516 | 1 | ||
| RING-O | 3 | 92055-517 | 2 | ||
| GEAR-SPUR | 4 | 59051-3005 | 1 | ||
| SPRING,RETURN | 5 | 92081-541 | 1 | ||
| COLLAR,STOPPER,PINION | 6 | 92027-513 | 1 | ||
| RING-SNAP | 7 | 92036-517 | 1 | ||
| SCREW,6X107 | 8 | 92011-549 | 2 | ||
| O RING,6MM | 9 | 670B1506 | 2 |
| SCREW,4X8 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| O RING,5MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRUSH,(+) | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-ASSY,BRUSH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRUSH,(-) | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRUSH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ARMATURE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SET | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YOKE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RETURN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,STOPPER,PINION | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X107 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| O RING,6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
