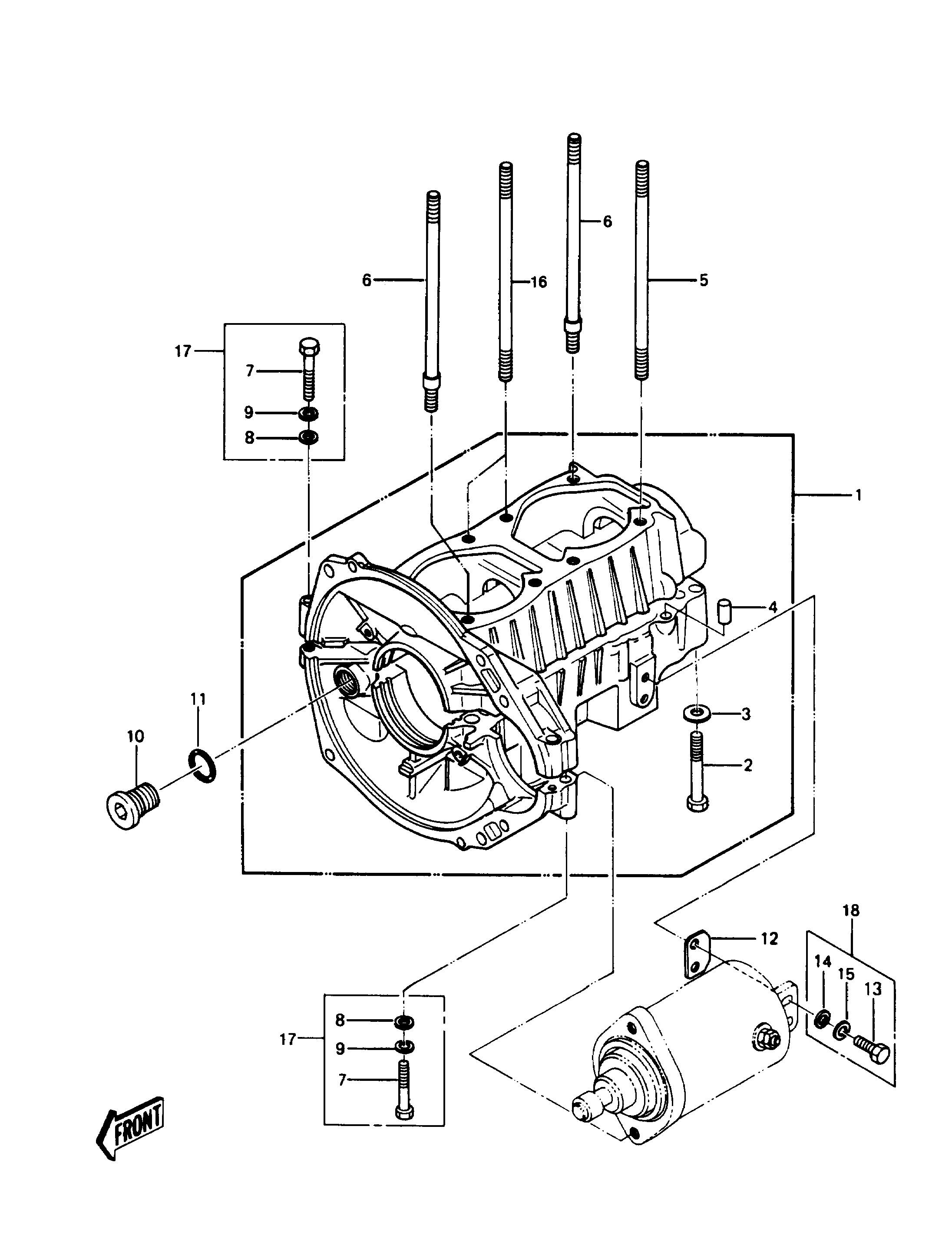

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| JOINT | 10 | 59071-516 | 1 | ||
| O RING,16MM | 11 | 670B2016 | 1 | ||
| SHIM,STARTER,T=0.6 | 12A | 92025-3013 | AR | ||
| SHIM,STARTER,T=0.8 | 12B | 92025-3014 | AR | ||
| SHIM,STARTER,T=0.4 | 12 | 92025-3012 | AR | ||
| BOLT,6X20 | 13 | 110R0620 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 14 | 410S0600 | 2 | ||
| WASHER-SPRING,6MM | 15 | 461S0600 | 2 | ||
| STUD,8X170 | 16 | 92004-2084 | 2 | ||
| SET-CRANKCASE | 1 | 14001-3027-YR | 1 | ||
| BOLT,8X60 | 2 | 92001-3033 | 10 | ||
| WASHER-PLAIN-SMALL,8MM | 3 | 410S0800 | 10 | ||
| PIN,DOWEL,6.3X8X14 | 4 | 92042-007 | 2 | ||
| STUD,8X167 | 5 | 92004-507 | 4 | ||
| STUD,8X167 | 6 | 92004-3020 | 2 | ||
| BOLT,6X40 | 7 | 110R0640 | 3 | ||
| WASHER-PLAIN-SMALL,6MM | 8 | 410S0600 | 3 | ||
| WASHER-SPRING,6MM | 9 | 461S0600 | 3 |
