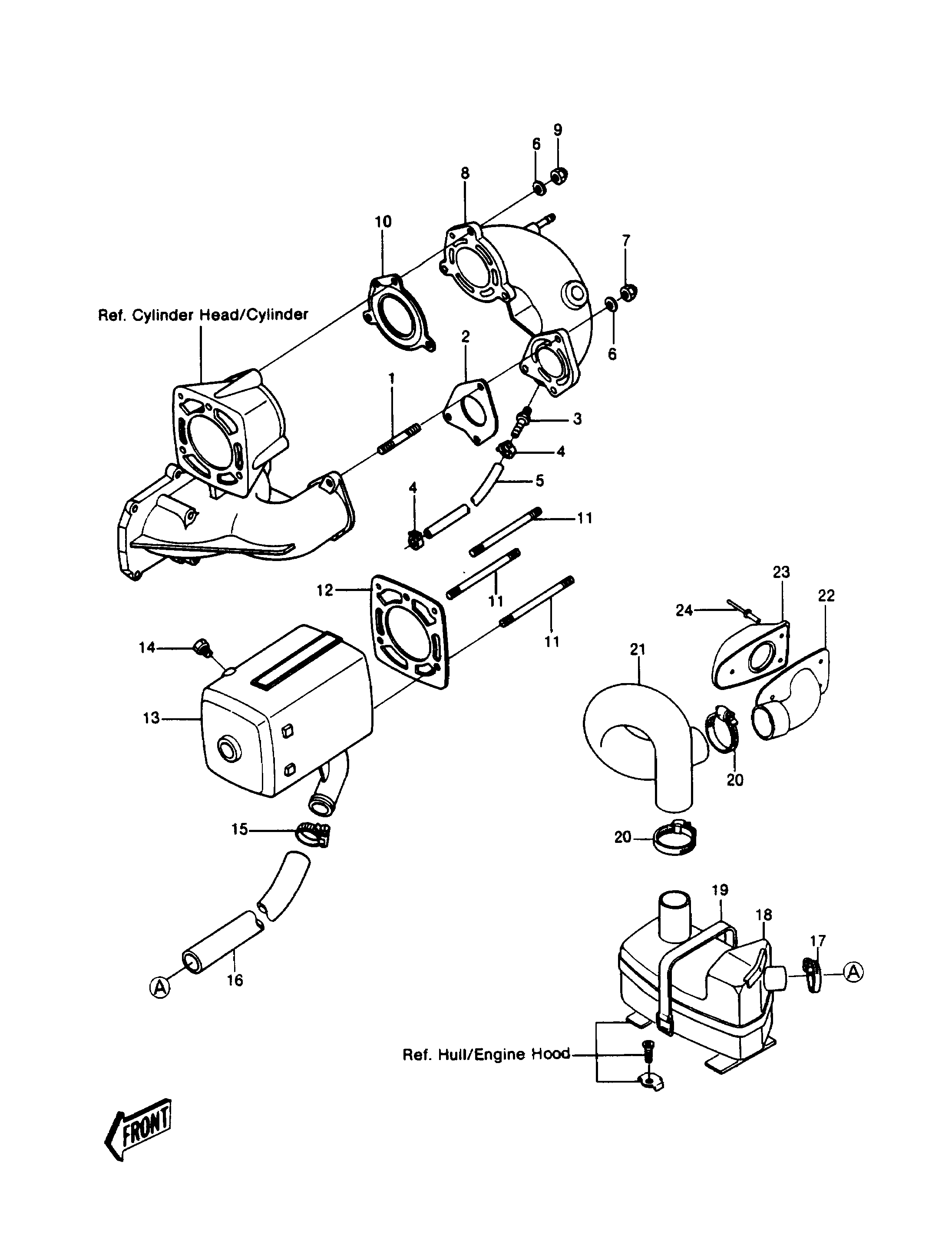

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE,RR | 10 | 11009-2462 | 1 | ||
| BOLT-STUD,8X120 | 11 | 172R08120 | 3 | ||
| GASKET,MUFFLER | 12 | 11009-2446 | 1 | ||
| MUFFLER-COMP | 13 | 49070-2339-YR | 1 | ||
| PLUG,CYLINDER HEAD | 14 | 92066-3001 | 1 | ||
| CLAMP | 15 | 92037-509 | 1 | ||
| TUBE,39X455 | 16 | 92059-2178 | 1 | ||
| CLAMP | 17 | 92037-509 | 1 | ||
| MUFFLER-COMP,WATER BOX | 18A | 49070-3713 | 1 | ||
| MUFFLER-COMP,WATER BOX | 18 | 49070-3702 | 1 | ||
| BAND | 19 | 92072-511 | 2 | ||
| CLAMP | 20 | 92037-509 | 2 | ||
| TUBE,EXHAUST | 21 | 92059-3722 | 1 | ||
| PIPE-TAIL | 22 | 59156-3702 | 1 | ||
| COVER-EXHAUST PIPE | 23 | 49107-3701 | 1 | ||
| RIVET | 24 | 92039-3002 | 3 | ||
| STUD,8X27.5 | 1 | 92004-3022 | 3 | ||
| GASKET,EXHAUST PIPE,FR | 2 | 11009-2461 | 1 | ||
| FITTING,HOSE | 3 | 92005-3001 | 1 | ||
| CLAMP | 4 | 92037-504 | 2 | ||
| TUBE,9X385 | 5 | 92059-2177 | 1 | ||
| WASHER-PLAIN-SMALL,8MM | 6 | 410S0800 | 6 | ||
| NUT,CAP,8MM | 7 | 92015-3003 | 3 | ||
| PIPE-COMP-EXHAUST | 8 | 49062-2053-YR | 1 | ||
| NUT,CAP,8MM | 9 | 92015-3003 | 3 |
