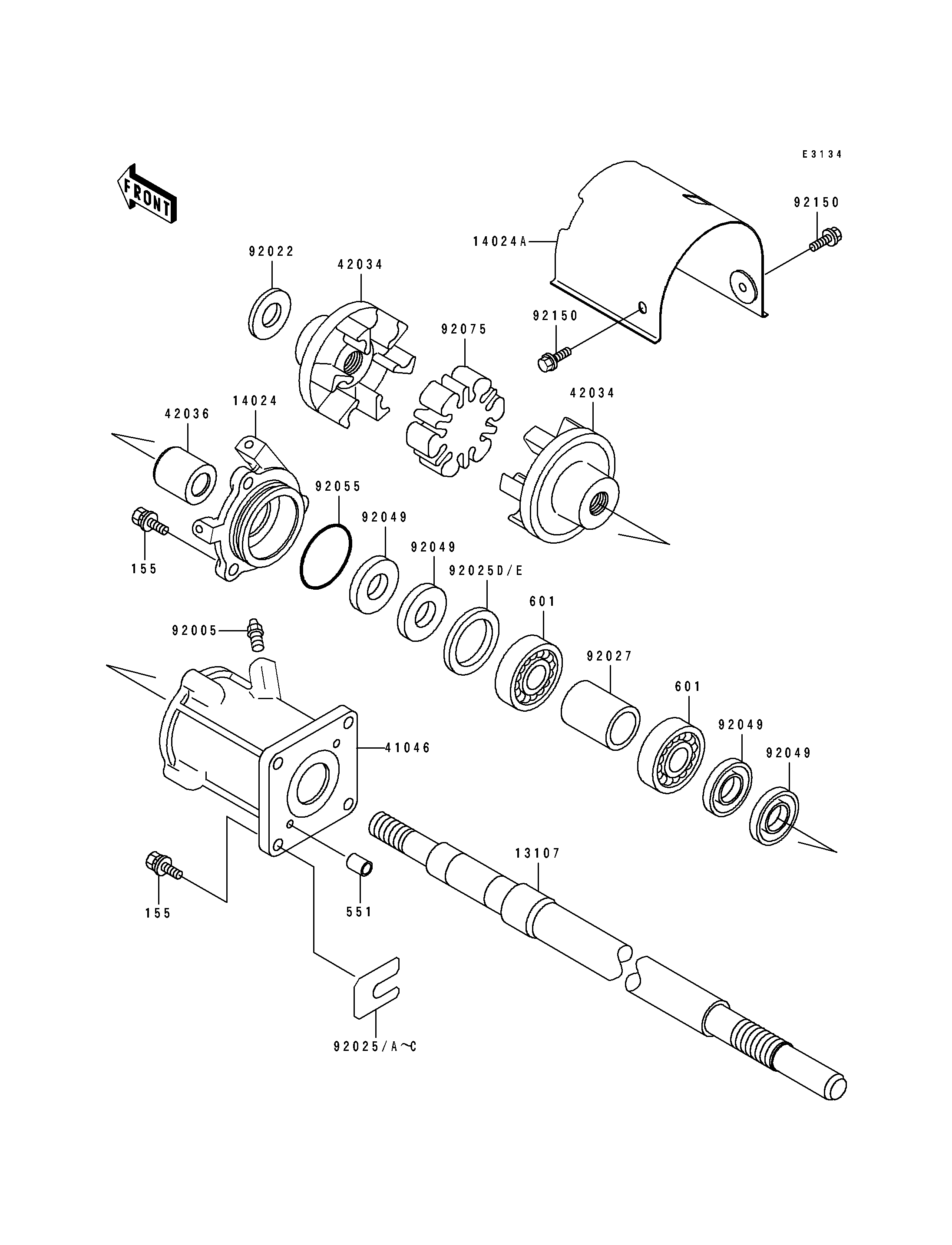

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE | 13107 | 59111-515 | 1 | ||
| COVER,BEARING | 14024 | 14025-3008 | 1 | ||
| COVER,COUPLING | 14024A | 59036-567 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-502 | 1 | ||
| COUPLING | 42034 | 42034-3706 | 2 | ||
| SLEEVE,BEARING | 42036 | 42036-501 | 1 | ||
| FITTING,GREASE | 92005 | 92005-501 | 1 | ||
| WASHER,18.5X38X4 | 92022 | 92022-3028 | 1 | ||
| SHIM,T=0.3MM | 92025 | 92025-3701 | AR | ||
| SHIM,T=0.5MM | 92025A | 92025-3702 | AR | ||
| SHIM,T=1.0MM | 92025B | 92025-3703 | AR | ||
| SHIM,T=1.5MM | 92025C | 92025-3704 | AR | ||
| SHIM,T=0.15 | 92025D | 92025-502 | AR | ||
| SHIM,T=0.3 | 92025E | 92025-503 | AR | ||
| COLLAR | 92027 | 92027-502 | 1 | ||
| SEAL-OIL,AC1799EX | 92049 | 92050-501 | 4 | ||
| RING-O | 92055 | 92055-501 | 1 | ||
| DAMPER,COUPLING | 92075 | 92075-520 | 1 | ||
| BOLT,6X16 | 92150 | 92150-3714 | 3 | ||
| BOLT-WSP-SMALL,8X25 | 155 | 155R0825 | 7 | ||
| PIN-DOWEL | 551 | 551R0612 | 2 | ||
| BEARING-BALL,#6305C3 | 601 | 601B6305 | 2 |
| SHAFT,DRIVE | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,BEARING | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COUPLING | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-BEARING | |
| REF # | 41046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING | |
| REF # | 42034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,BEARING | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,GREASE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.5X38X4 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIM,T=0.3MM | |
| REF # | 92025 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHIM,T=0.5MM | |
| REF # | 92025A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHIM,T=1.0MM | |
| REF # | 92025B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHIM,T=1.5MM | |
| REF # | 92025C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHIM,T=0.15 | |
| REF # | 92025D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHIM,T=0.3 | |
| REF # | 92025E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,AC1799EX | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,COUPLING | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-WSP-SMALL,8X25 | |
| REF # | 155 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6305C3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
