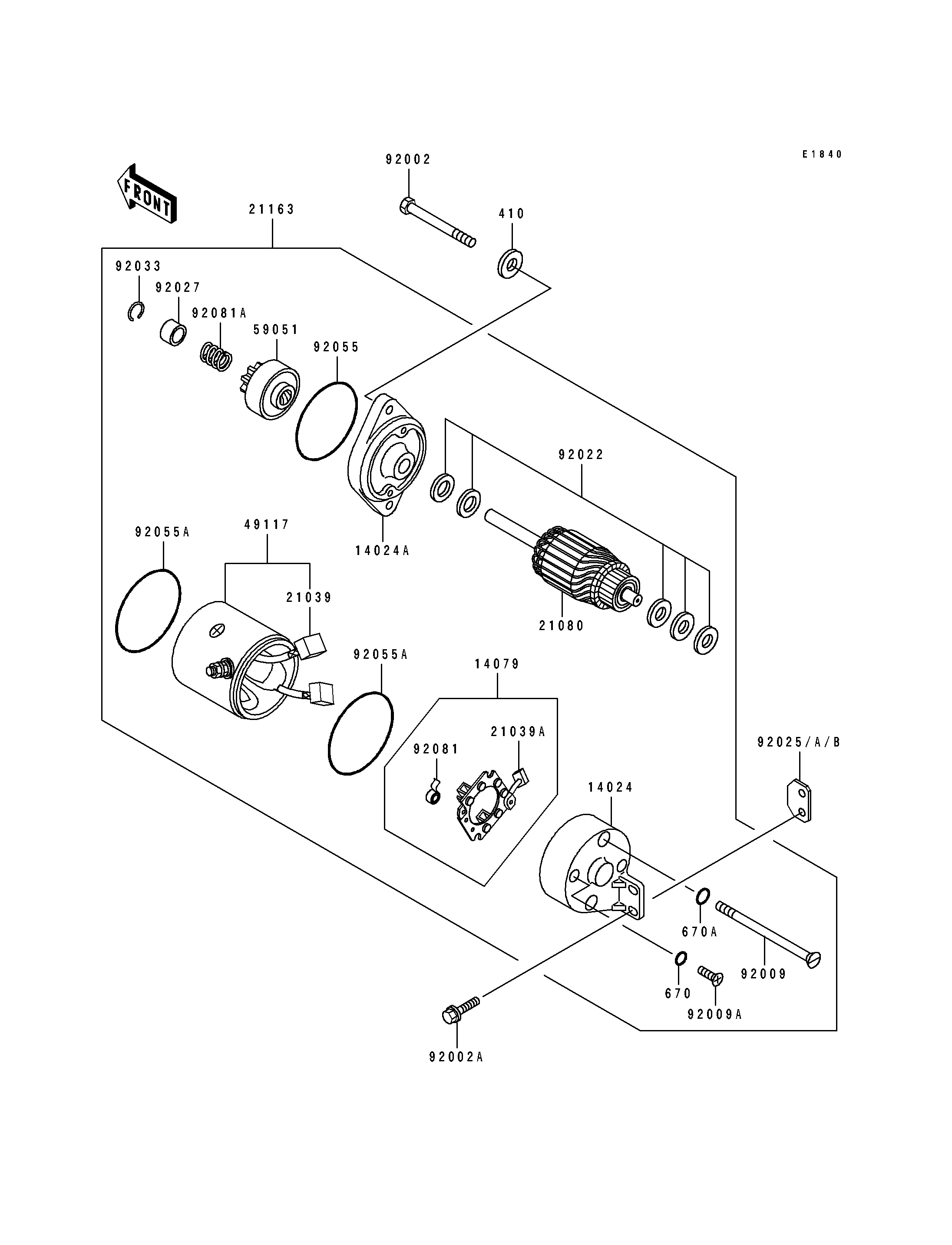

1991 JS440 - Starter Motor(TC440B-039909&NAMI.054870)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RR 14024 14025-3027 1
COVER,FR 14024A 14025-3028 1
HOLDER-ASSY,BRUSH 14079 14079-3002 1
BRUSH,(+) 21039 21039-3003 2
BRUSH,(-) 21039A 21039-3004 1
ARMATURE 21080 21080-3702 1
STARTER-ELECTRIC 21163 21163-3711 1
YOKE 49117 49117-3002 1
GEAR-SPUR 59051 59051-3005 1
BOLT,8X70 92002 92002-3719 2
BOLT,6X20 92002A 92002-3755 2
SCREW,6X107 92009 92011-549 2
SCREW,4X8 92009A 92011-550 2
WASHER,SET 92022 92022-3044 1
SHIM,STARTER,T=0.4 92025 92025-3012 AR
SHIM,STARTER,T=0.6 92025A 92025-3013 AR
SHIM,STARTER,T=0.8 92025B 92025-3014 AR
COLLAR,STOPPER,PINION 92027 92027-513 1
RING-SNAP 92033 92036-517 1
RING-O 92055 92055-516 1
RING-O 92055A 92055-517 2
SPRING,BRUSH 92081 92081-540 3
SPRING,RETURN 92081A 92081-541 1
WASHER-PLAIN-SMALL,8MM 410 410S0800 2
O RING,5MM 670 670B1505 2
O RING,6MM 670A 670B1506 2
