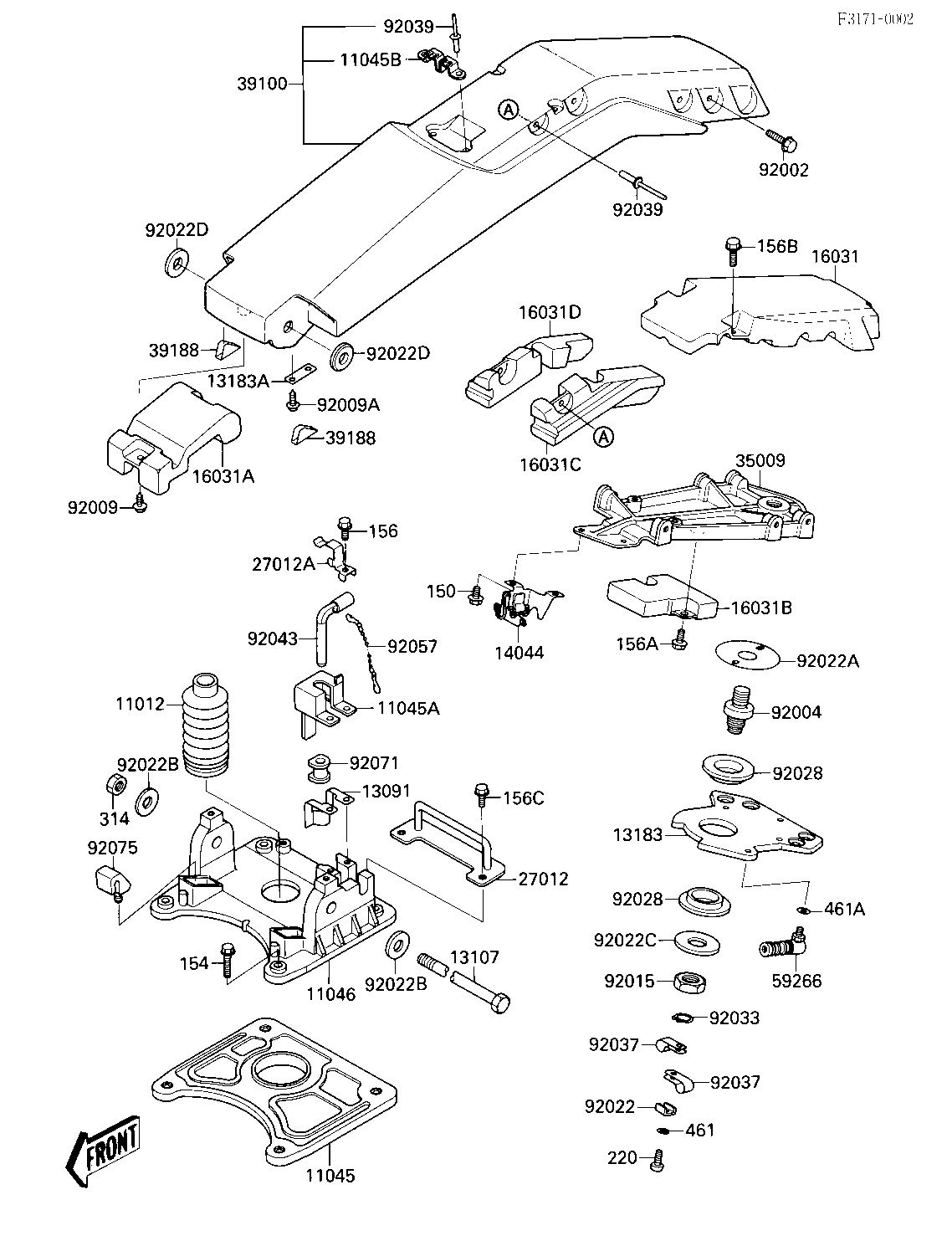

1987 650 SX - HANDLE POLE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-STEERING CABLE 11012 59176-514 1
BRACKET,BACK-UP PLATE 11045 11045-3722 1
BRACKET,POLE STOPPER 11045A 11045-3728 1
BRACKET,HANDLE POLE P 11045B 11045-3733 1
BRACKET,PIVOT SHAFT 11046 11047-3756 1
HOLDER 13091 13091-3717 1
SHAFT,PIVOT 13107 13107-3709 1
PLATE,HANDLEBAR 13183 13183-3755 1
PLATE 13183A 13183-3720 1
HOLDER,CABLE 14044 14044-3001 1
FLOAT 16031 16031-3715 1
FLOAT,HANDLE POLE FR 16031A 16031-3731 1
FLOAT CENTER 16031B 16031-3737 1
FLOAT,L.H 16031C 16031-3738 1
FLOAT,R.H. 16031D 16031-3752 1
HOOK,ENGINE HOOD 27012 27012-3733 1
HOOK 27012A 27012-3717 1
BRACE 35009 35009-3705 1
POLE-COMP-HANDLE S RE 39100 39100-3706-H1 1
TAPE 39188 39188-3701 2
JOINT-BALL 59266 59266-3707 1
BOLT,6X12 92002 92002-3763 6
STUD 92004 92004-3712 1
SCREW 0.22 X 0.563 92009 92011-561 1
SCREW 0.16X0.5 92009A 92011-562 2
NUT 92015 92015-3746 1
WASHER,CLAMP 92022 92022-3014 1
WASHER 92022A 92022-3716 1
WASHER,15X34X2.0 92022B 92022-3738 2
WASHER 92022C 92022-3740 1
WASHER,15X36X4.5 92022D 92022-3741 2
BUSHING 92028 92028-3726 2
RING-SNAP 92033 92033-3710 1
CLAMP,LEAD WIRE 92037 92037-3007 2
RIVET 92039 92039-3701 4
PIN,POLE STOPPER 92043 92043-3714 1
CHAIN,COVER 92057 92057-3704 1
GROMMET 92071 92071-3752 1
DAMPER,POLE STOPPER 92075 92075-3742 2
BOLT-WS,6X12 150 150R0612 2
BOLT-WP-SMALL,8X30 154 154R0830 4
BOLT-WP,5X10 156 156R0510 2
BOLT-WP,5X12 156A 156R0512 2
BOLT-WP,5X14 156B 156R0514 2
BOLT-WP,6X12 156C 156R0612 2
SCREW-PAN-CROS 220 220R0516 1
NUT-HEX-FINE,14MM 314 314R1400 1
WASHER-SPRING,5MM 461 461S0500 1
WASHER-SPRING,6MM 461A 461S0600 1
