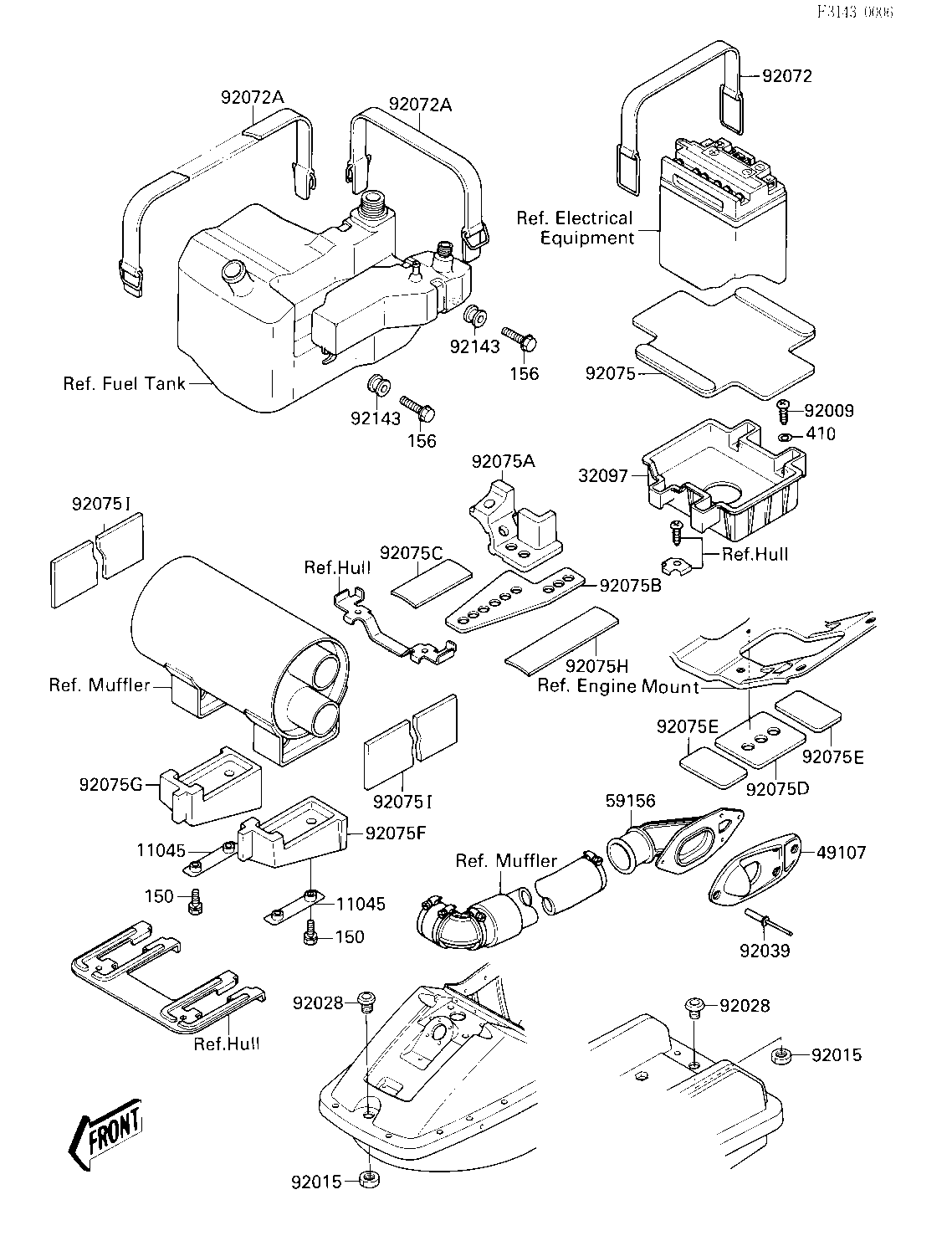

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11045 | 11045-3764 | 2 | ||
| CASE-BATTERY | 32097 | 32097-3702 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-3705 | 1 | ||
| PIPE-TAIL | 59156 | 59156-3703 | 1 | ||
| SCREW 0.22 X 0.563 | 92009 | 92011-561 | 4 | ||
| NUT,20MM | 92015 | 92015-3721 | 2 | ||
| BUSHING | 92028 | 92028-3724 | 2 | ||
| RIVET | 92039 | 92039-3722 | 4 | ||
| BAND,BATTERY,L=366 | 92072 | 92072-3706 | 2 | ||
| BAND,L=538 | 92072A | 92072-3709 | 2 | ||
| DAMPER | 92075 | 92075-3714 | 1 | ||
| DAMPER | 92075A | 92075-3754 | 1 | ||
| DAMPER | 92075B | 92075-3755 | 1 | ||
| DAMPER | 92075C | 92075-3756 | 1 | ||
| DAMPER | 92075D | 92075-3758 | 1 | ||
| DAMPER | 92075E | 92075-3759 | 2 | ||
| DAMPER | 92075F | 92075-3763 | 1 | ||
| DAMPER | 92075G | 92075-3764 | 1 | ||
| DAMPER,6.0TX90X300 | 92075H | 92075-521 | 1 | ||
| DAMPER,3.OTX90X200 | 92075I | 92075-522 | 2 | ||
| COLLAR | 92143 | 92143-3705 | 2 | ||
| BOLT-WS | 150 | 150R0622 | 4 | ||
| BOLT-WP,6X22 | 156 | 156R0622 | 2 | ||
| WASHER | 410 | 410S0600 | 4 |
