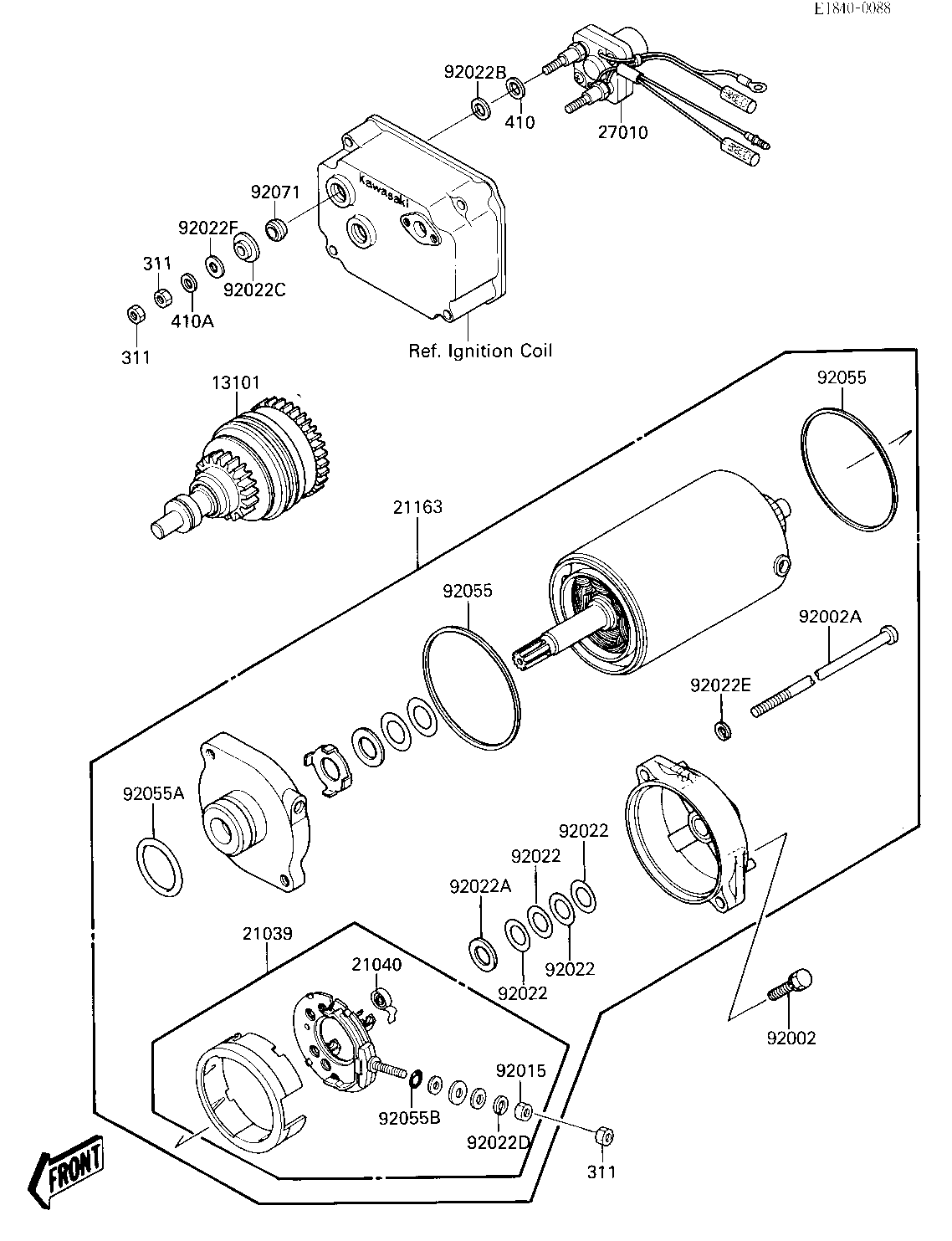

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GEAR-ASSY | 13101 | 13101-3705 | 1 | ||
| BRUSH,CARBON | 21039 | 21039-3702 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
| STARTER-ELECTRIC | 21163 | 21163-3712 | 1 | ||
| SWITCH,SOLENOID | 27010 | 27010-3705 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 2 | ||
| BOLT | 92002A | 92002-3744 | 2 | ||
| NUT,6MM | 92015 | 92015-3710 | 1 | ||
| WASHER,THRUST,0.2T | 92022 | 21025-011 | 4 | ||
| WASHER,THRUST,0.8T | 92022A | 92022-1132 | 1 | ||
| WASHER,10.5X24X2.5 | 92022B | 92022-3035 | 2 | ||
| WASHER | 92022C | 92022-3036 | 2 | ||
| WASHER,6MM | 92022D | 92022-3711 | 1 | ||
| WASHER,SPRING,5MM | 92022E | 92022-3712 | 2 | ||
| WASHER | 92022F | 92022-553 | 2 | ||
| "0" RING,STARTER MOTR | 92055 | 92055-1086 | 2 | ||
| RING-O | 92055A | 92055-1276 | 1 | ||
| RING-O,4.5X2.0 | 92055B | 92055-1370 | 1 | ||
| GROMMET | 92071 | 92071-3004 | 2 | ||
| NUT,6M/M | 311 | 311R0600 | 5 | ||
| WASHER PLAIN 10MM | 410 | 410B1000 | 2 | ||
| WASHER | 410A | 410S0600 | 2 |
| GEAR-ASSY | |
| REF # | 13101 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRUSH,CARBON | |
| REF # | 21039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRUSH | |
| REF # | 21040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,SOLENOID | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.2T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.8T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X24X2.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6MM | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING,5MM | |
| REF # | 92022E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022F |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTER MOTR | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,4.5X2.0 | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6M/M | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 410A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
