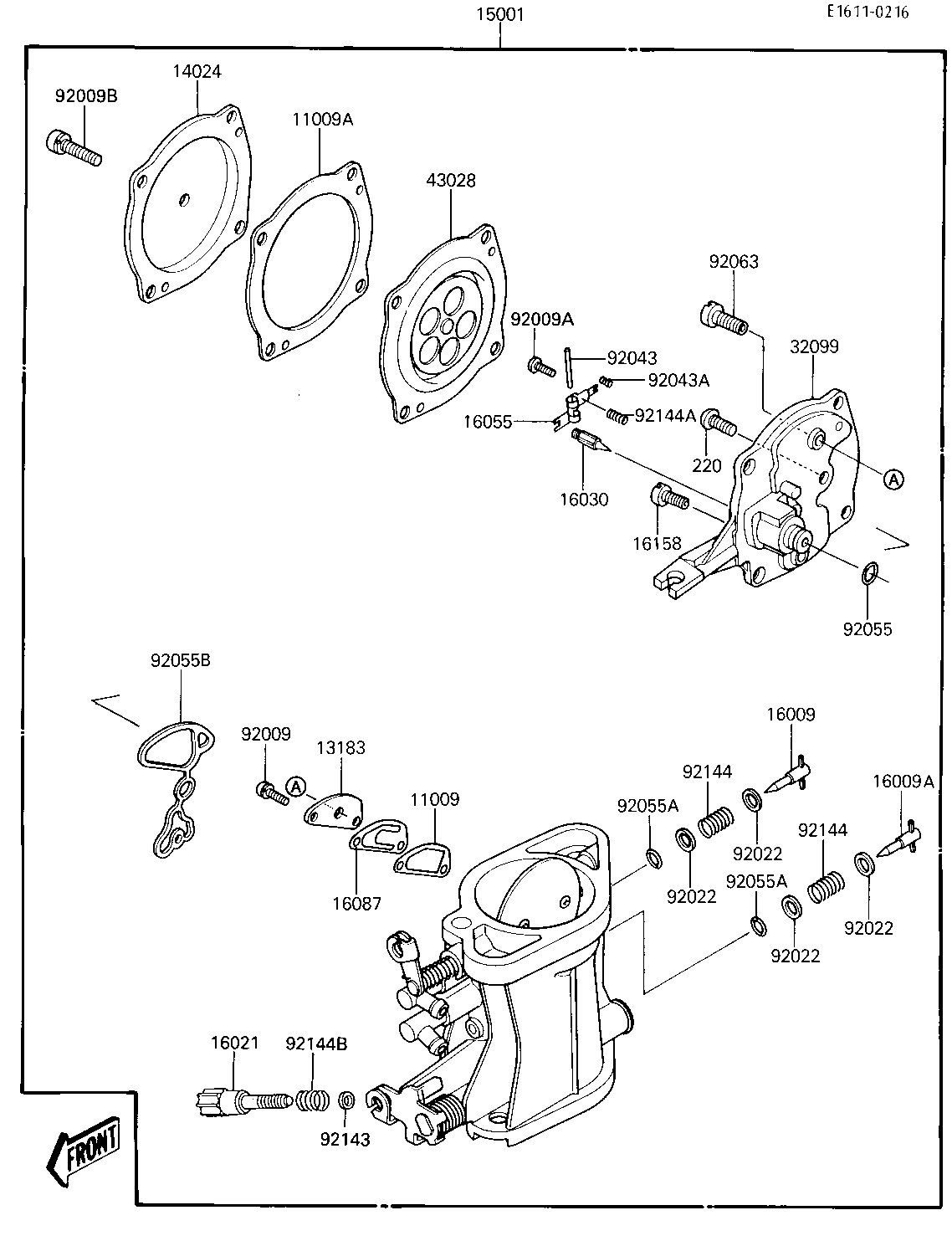

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CHOKE VALVE | 11009 | 11009-3729 | 1 | ||
| GASKET,DIAPHRAGM | 11009A | 11009-3730 | 1 | ||
| PLATE | 13183 | 13183-3707 | 1 | ||
| COVER,CARBURETOR | 14024 | 14024-3720 | 1 | ||
| CARBURETOR-ASSY | 15001 | 15001-3722 | 1 | ||
| NEEDLE-JET,HIGH SPEED | 16009 | 16009-3703 | 1 | ||
| NEEDLE-JET,LOW SPEED | 16009A | 16009-3704 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-3702 | 1 | ||
| VALVE-FLOAT | 16030 | 16030-3701 | 1 | ||
| ARM-FLOAT | 16055 | 16055-3701 | 1 | ||
| VALVE-CHECK | 16087 | 16087-3702 | 1 | ||
| JET-SLOW,#48 | 16158 | 16158-3701 | 1 | ||
| CASE,CARBURETOR | 32099 | 32099-3712 | 1 | ||
| DIAPHRAGM,CARBURETOR | 43028 | 43028-3704 | 1 | ||
| SCREW-PAN-WS-CROS,3X6 | 92009 | 223B0306 | 2 | ||
| SCREW,3X6 | 92009A | 92009-3712 | 1 | ||
| SCREW,4X16 | 92009B | 92009-3739 | 4 | ||
| WASHER,ADJUST SCREW | 92022 | 92022-3745 | 4 | ||
| PIN,FLOAT | 92043 | 92043-1209 | 1 | ||
| PIN,THROTTLE STOP SCR | 92043A | 92043-3712 | 1 | ||
| RING-O,FUEL FITTING | 92055 | 92055-1223 | 1 | ||
| RING-O,ADJUST SCREW | 92055A | 92055-3713 | 2 | ||
| RING-O | 92055B | 92055-3714 | 1 | ||
| MAIN JET,2ND,#125 | 92063 | 92063-1069 | 1 | ||
| COLLAR,THROTTLE STOP | 92143 | 92143-3709 | 1 | ||
| SPRING,ADJUST SCREW | 92144 | 92144-3704 | 2 | ||
| SPRING,FLOAT VALVE | 92144A | 92144-3705 | 1 | ||
| SPRING,THROTTLE STOP | 92144B | 92144-3706 | 1 | ||
| SCREW-PAN-CROS | 220 | 220D0408 | 1 |
