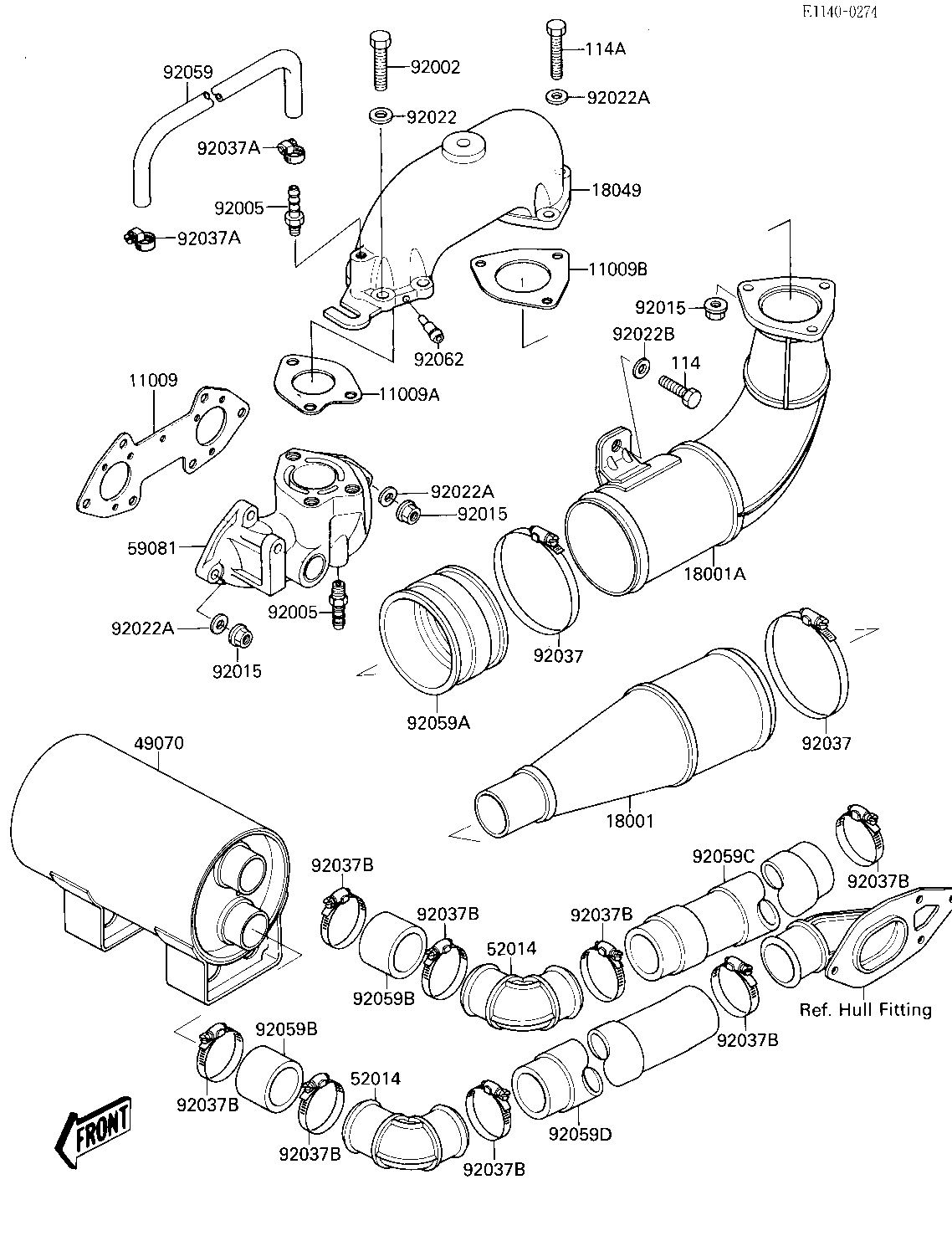

1987 650 SX - MUFFLER (KAW10001B787~KAW15906E787)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST MANIFO | 11009 | 11009-3722 | 1 | ||
| GASKET,EXHAUST PIPE | 11009A | 11060-3725 | 1 | ||
| GASKET,MUFFLER | 11009B | 11009-3724 | 1 | ||
| MUFFLER,BODY | 18001 | 18001-3716 | 1 | ||
| MUFFLER,TUNED | 18001A | 18001-3718 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-3710 | 1 | ||
| MUFFLER-COMP,WATER BO | 49070 | 49070-3710 | 1 | ||
| ELBOW | 52014 | 52014-3702 | 2 | ||
| MANIFOLD-EXHAUST | 59081 | 59081-3705 | 1 | ||
| BOLT | 92002 | 92002-3746 | 3 | ||
| JOINT,HOSE | 92005 | 92005-3001 | 2 | ||
| NUT,8MM | 92015 | 92015-3709 | 9 | ||
| WASHER | 92022 | 92022-3742 | 3 | ||
| WASHER | 92022A | 92022-1964 | 9 | ||
| WASHER | 92022B | 92022-3744 | 1 | ||
| CLAMP,MAX 120,7MM | 92037 | 92037-3733 | 2 | ||
| CLAMP,HOSE | 92037A | 92037-504 | 2 | ||
| CLAMP | 92037B | 92037-509 | 8 | ||
| TUBE,JET PUMP,9X16X30 | 92059 | 92059-3748 | 1 | ||
| TUBE,MUFFLER CONNECTI | 92059A | 92059-3767 | 1 | ||
| TUBE | 92059B | 92059-3807 | 2 | ||
| TUBE | 92059C | 92059-3808 | 1 | ||
| TUBE | 92059D | 92059-3809 | 1 | ||
| NOZZLE | 92062 | 92062-3705 | 1 | ||
| BOLT-SMALL | 114 | 114R0825 | 1 | ||
| BOLT-SMALL,8X35 | 114A | 114R0835 | 3 |
| GASKET,EXHAUST MANIFO | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,BODY | |
| REF # | 18001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,TUNED | |
| REF # | 18001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER-COMP,WATER BO | |
| REF # | 49070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-EXHAUST | |
| REF # | 59081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| JOINT,HOSE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MAX 120,7MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,JET PUMP,9X16X30 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,MUFFLER CONNECTI | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL,8X35 | |
| REF # | 114A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
