Parts Diagrams |

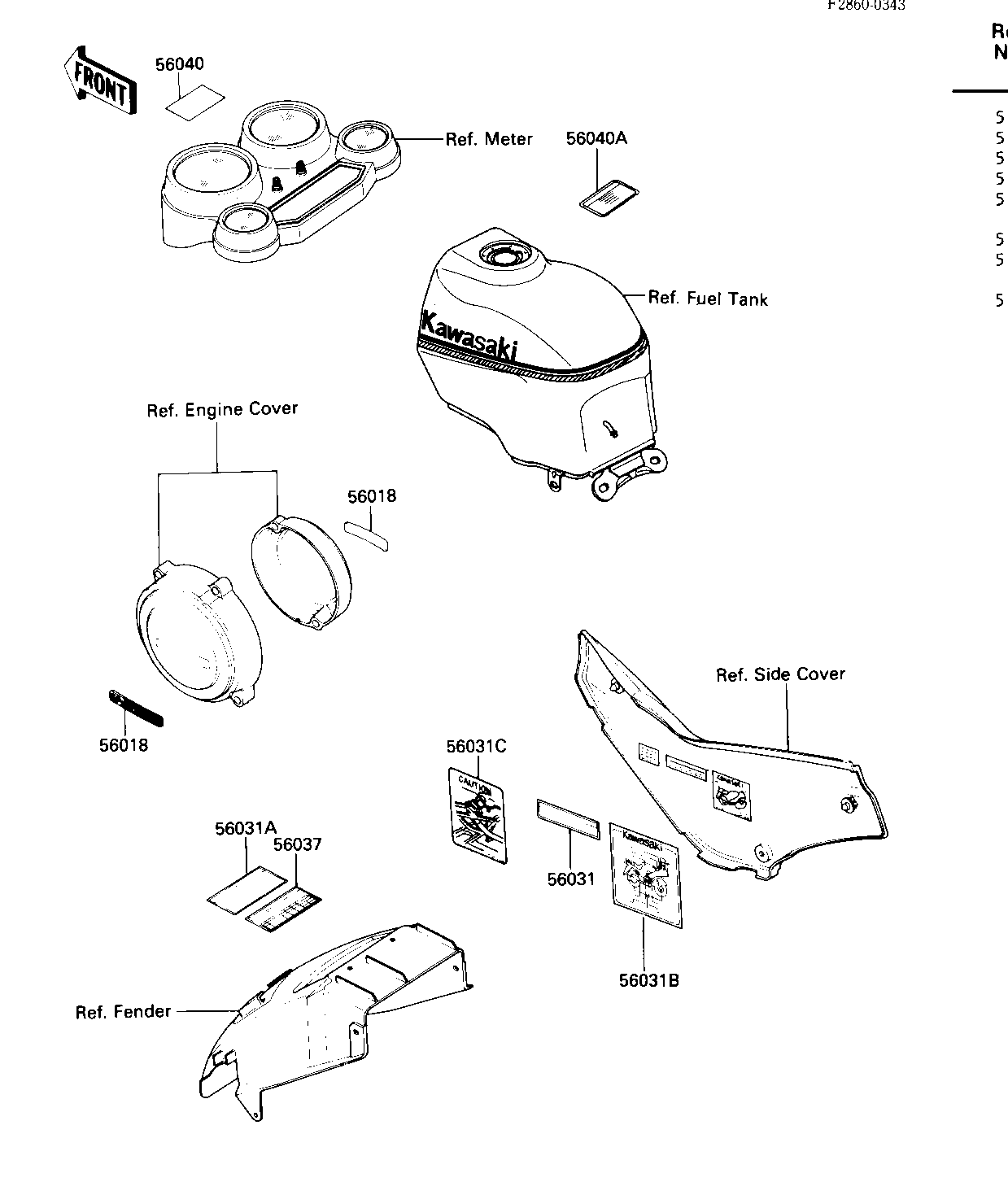

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ENGINE COVER | 56018 | 56018-1846 | 2 | ||
| LABEL,OIL&OIL FILTER | 56031 | 56031-1093 | 1 | ||
| LABEL-MANUAL,CHAIN | 56031A | 56031-1409 | 1 | ||
| LABEL-MANUAL,DAILY SA | 56031B | 56031-1410 | 1 | ||
| LABEL-MANUAL,BATTERY | 56031C | 56031-1473 | 1 | ||
| LABEL-SPECIFICATION,T | 56037 | 56037-1316 | 1 | ||
| LABEL,BRAKE-IN | 56040 | 56040-1007 | 1 | US,CA | |
| LABEL-WARNING,FUEL TK | 56040A | 56040-1121 | 1 | CA |
| MARK,ENGINE COVER | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LABEL,OIL&OIL FILTER | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,CHAIN | |
| REF # | 56031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,DAILY SA | |
| REF # | 56031B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,BATTERY | |
| REF # | 56031C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-SPECIFICATION,T | |
| REF # | 56037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,BRAKE-IN | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US,CA |
| LABEL-WARNING,FUEL TK | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
