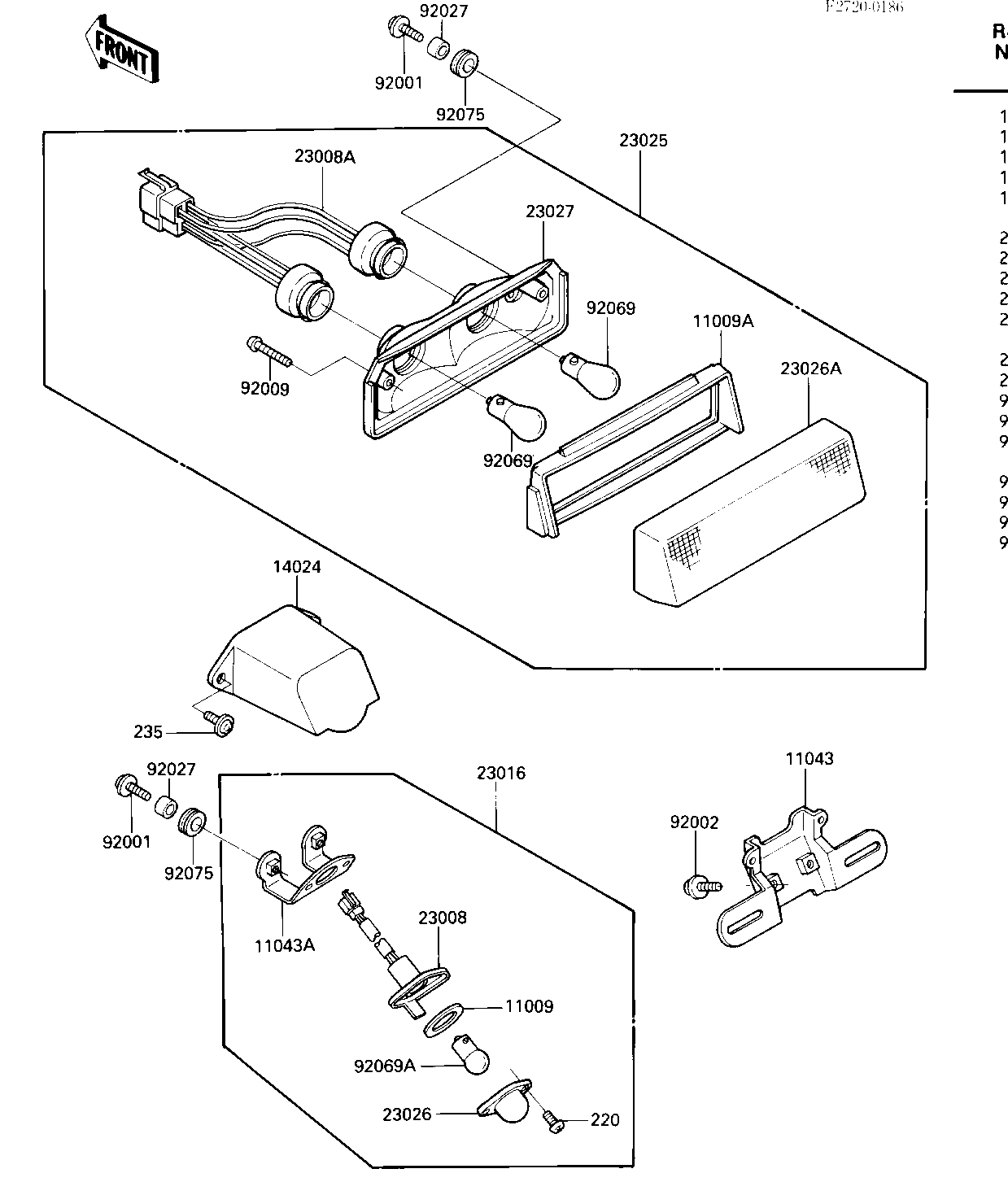

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,LICENSE PLATE | 11009 | 11009-1372 | 1 | ||
| GASKET,TAIL LAMP | 11009A | 11009-1404 | 1 | ||
| BRACKET,REFLECTOR | 11043 | 11043-1440 | 1 | ||
| BRACKET,LICENSE PLATE | 11043A | 11043-1497 | 1 | ||
| COVER,LICENSE PLATE L | 14024 | 14025-1821 | 1 | ||
| SOCKET-ASSY,LICENSE P | 23008 | 23008-1221 | 1 | ||
| SOCKET-ASSY,TAIL LAMP | 23008A | 23008-1225 | 1 | ||
| LAMP-ASSY,LICENSE PLA | 23016 | 23016-1053 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1105 | 1 | ||
| LENS,LICENSE PLATE LA | 23026 | 23026-1054 | 1 | ||
| LENS,TAIL LAMP | 23026A | 23026-1056 | 1 | ||
| BODY-COMP-TAIL LAMP | 23027 | 23027-1064 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1773 | 4 | ||
| BOLT | 92002 | 92002-1351 | 2 | ||
| SCREW,TAPPING | 92009 | 92009-1056 | 2 | ||
| COLLAR 6.8X10X10.5 | 92027 | 92027-120 | 4 | ||
| BULB,12V 32/3CP | 92069 | 92069-059 | 2 | ||
| BULB,12V 4CP | 92069A | 92069-1012 | 1 | ||
| DAMPER RUBBER,CASE | 92075 | 92075-222 | 4 | ||
| SCREW PAN HEAD 4X10 | 220 | 220B0410 | 2 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0616 | 2 |
