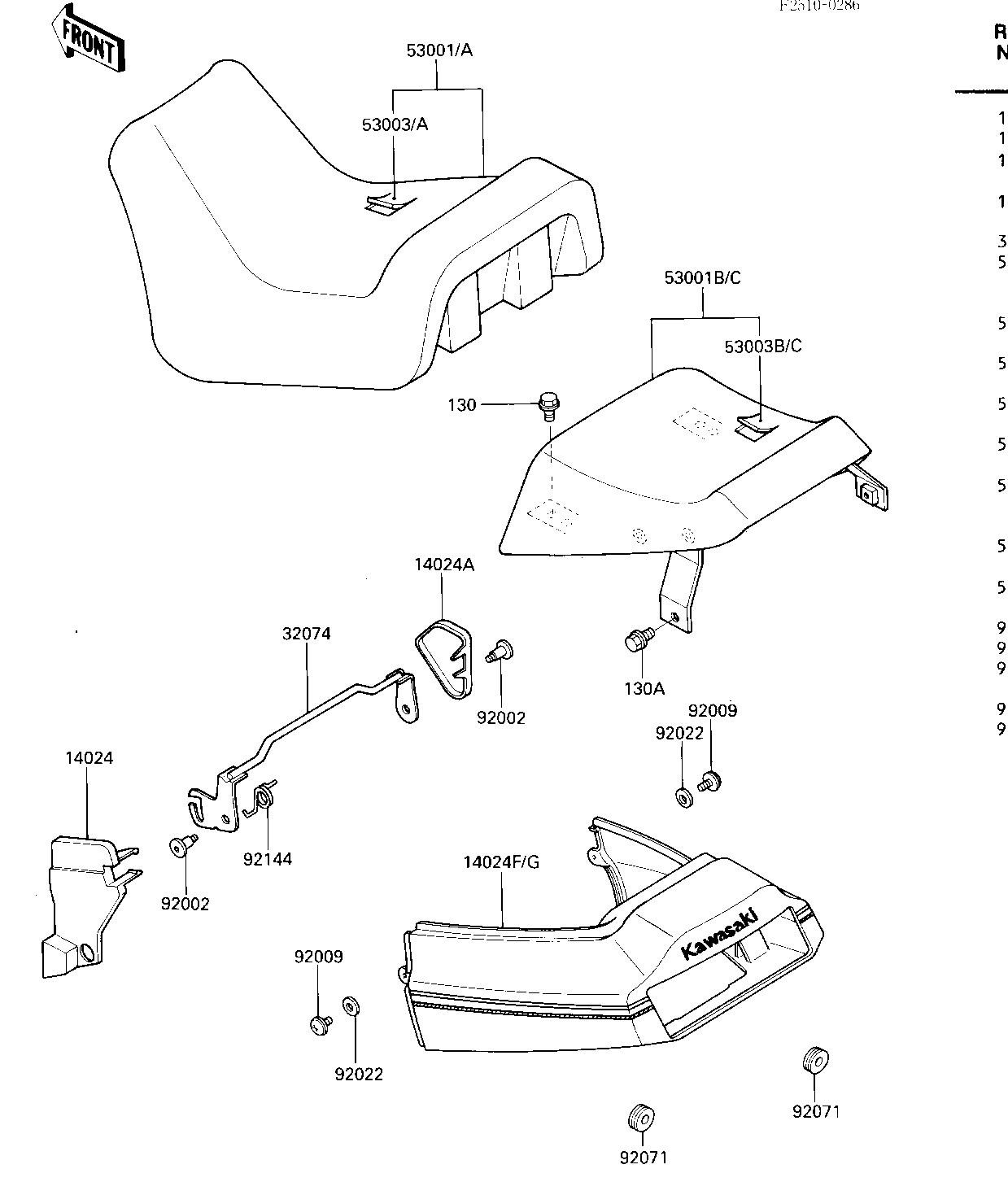

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT LOCK,LH | 14024 | 14024-1051 | 1 | ||
| COVER,SEAT LOCK,RH | 14024A | 14024-1052 | 1 | ||
| COVER,SEAT,RED/GRAY | 14024F | 14025-5270-X5 | 1 | CA,US | |
| COVER,SEAT,BLUE/WHITE (Canada) | 14024G | 14025-5271-X7 | 1 | CN | |
| BRACKET-LOCK,SEAT | 32074 | 32074-1113 | 1 | ||
| SEAT-ASSY,FR,RED (Canada) | 53001 | 53001-1415-NH | 1 | CN | |
| SEAT-ASSY,FR,BLACK | 53001A | 53001-1415-N3 | 1 | CA,US | |
| SEAT-ASSY,RR,BLUE (Canada) | 53001B | 53001-1416-NH | 1 | CN | |
| SEAT-ASSY,RR,BLACK | 53001C | 53001-1416-N3 | 1 | CA,US | |
| LEATHER,FRONT SEAT,BLUE (Canad | 53003 | 53003-1130-NH | 1 | CN | |
| LEATHER,FRONT SEAT,BL | 53003A | 53003-1130-N3 | 1 | CA,US | |
| LEATHER,FRONT SEAT,BLUE (Canad | 53003B | 53003-1131-NH | 1 | CN | |
| LEATHER,REAR SEAT,BLA | 53003C | 53003-1131-N3 | 1 | CN | |
| BOLT | 92002 | 92002-1616 | 2 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| GROMMET | 92071 | 92071-056 | 2 | ||
| SPRING | 92144 | 92144-1086 | 1 | ||
| BOLT | 130 | 130B0612 | 2 | ||
| BOLT,FLANGED,8X14 | 130A | 130G0814 | 2 |
