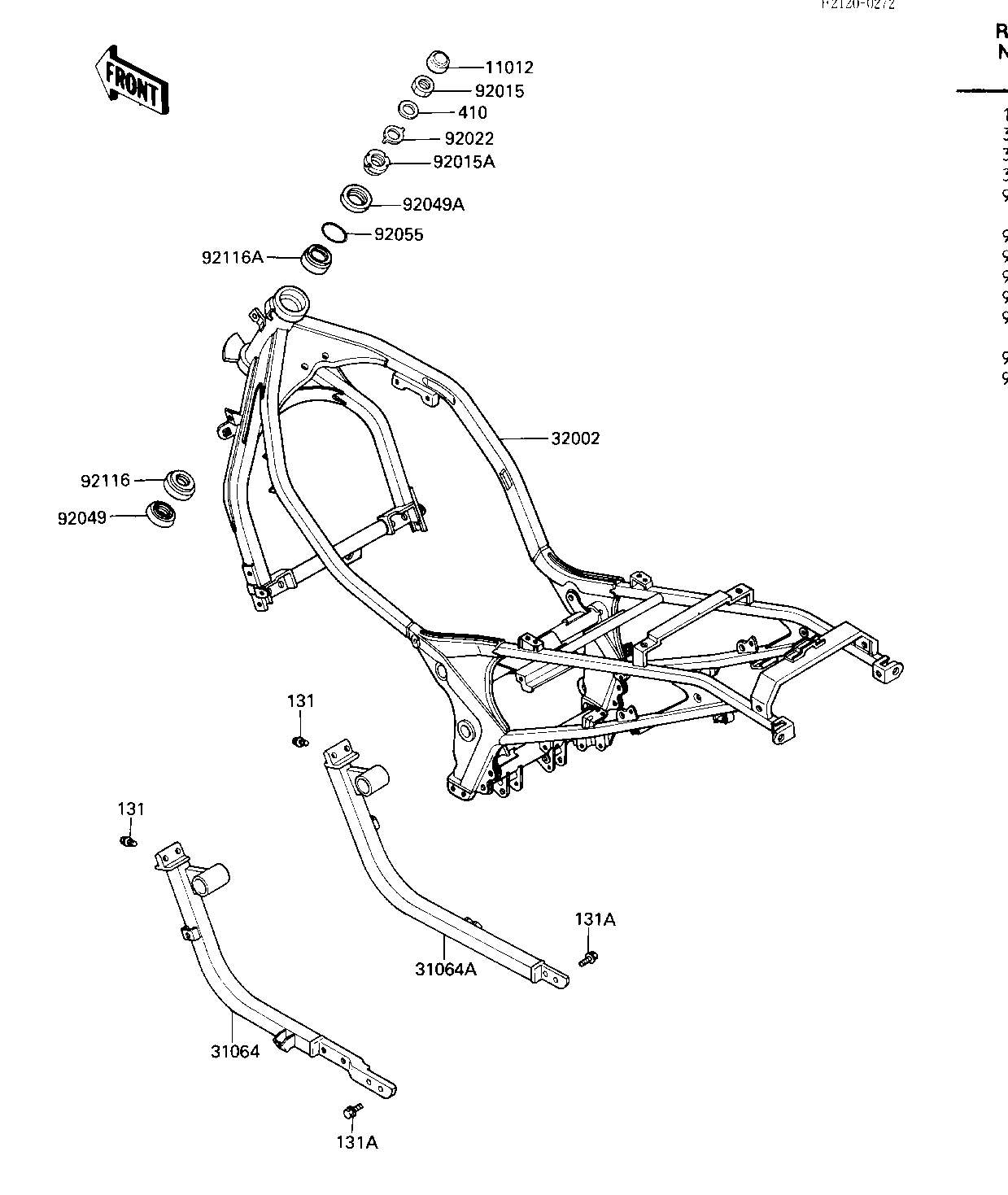

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 11012-1442 | 1 | ||
| PIPE-COMP,SIDE FRAME, | 31064 | 31064-1061 | 1 | ||
| PIPE-COMP,SIDE FRAME, | 31064A | 31064-1062 | 1 | ||
| FRAME-COMP | 32002 | 32002-1800 | 1 | ||
| NUT,18MM | 92015 | 92015-1404 | 1 | ||
| NUT | 92015A | 92015-1546 | 1 | ||
| WASHER,CLAW,18.5X30X2 | 92022 | 92022-1555 | 1 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,STEERING STE | 92049A | 92049-1214 | 1 | ||
| RING-0.24.7MM | 92055 | 92055-1160 | 1 | ||
| BRG,ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER | 92116A | 92116-1056 | 1 | ||
| BOLT-FLANGED | 131 | 131G0820 | 4 | ||
| BOLT-FLANGED | 131A | 131G1020 | 4 | ||
| W-PLAIN-S | 410 | 410F1800 | 1 |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,SIDE FRAME, | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,SIDE FRAME, | |
| REF # | 31064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLAW,18.5X30X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,STEERING STE | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-0.24.7MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 131A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
