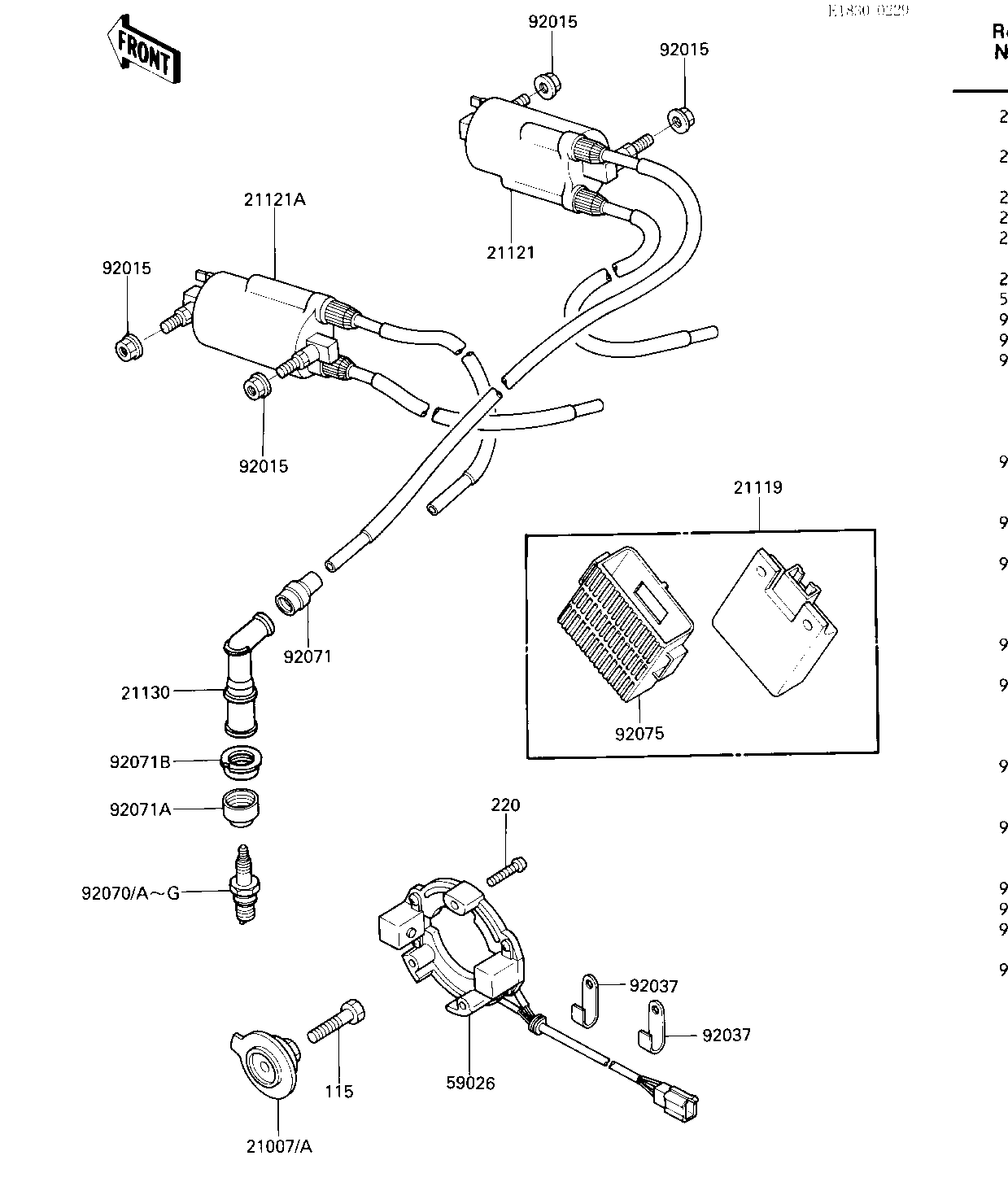

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,PULSING COIL | 21007 | 21007-1130 | 1 | CN,US | |
| ROTOR,PULSING COIL | 21007A | 21007-1135 | 1 | CA | |
| IGNITER | 21119 | 21119-1167 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-1132 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1133 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1057 | 4 | ||
| COIL-PULSING | 59026 | 59026-1068 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 4 | ||
| CLAMP,WIRING HARNESS | 92037 | 21126-008 | 2 | ||
| SPARK PLUG D8EA | 92070A | D8EA | 4 | CA,US | |
| SPARK PLUG DR8ES (Canada) | 92070B | 92070-1019 | 4 | CN | |
| UNAVAILABLE IN PRICE BOOK | 92070D | 92070-1034 | 4 | CA,US | |
| SPARK PLUG DR8ES-L (Canada) | 92070G | 92070-1116 | 4 | CN | |
| GROMMET,HIGH TENSION | 92071 | 21131-005 | 4 | ||
| GROMMET,PLUG CAP | 92071A | 92071-1124 | 4 | ||
| GROMMET | 92071B | 92071-1144 | 4 | ||
| DAMPER,IGNITER | 92075 | 92075-1504 | 1 | ||
| BOLT,SMALL UPSET | 115 | 115G0835 | 1 | ||
| SCREW-PAN-CROS,5X25 | 220 | 220B0525 | 3 |
