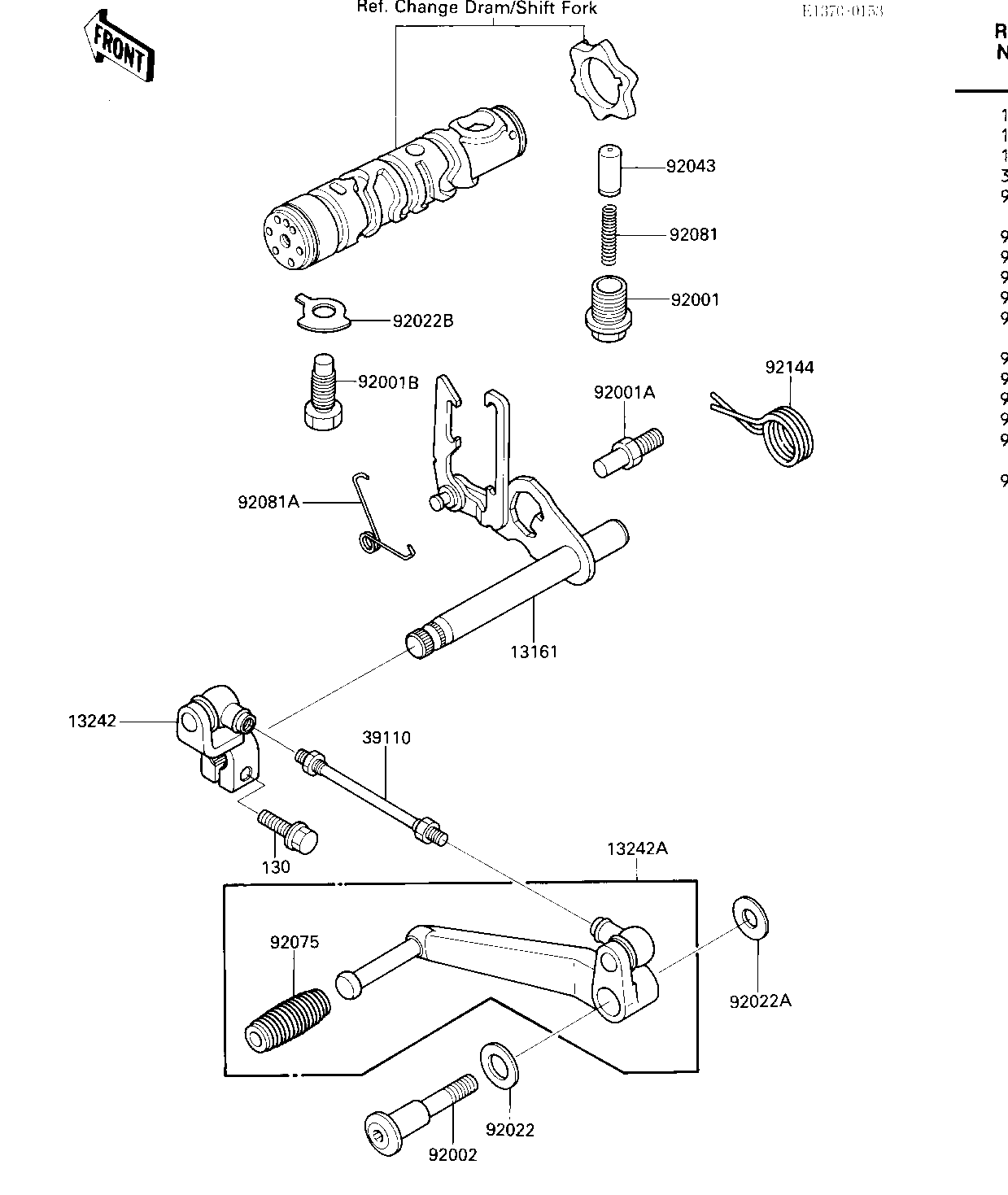

1987 Ninja® 600 - GEAR CHANGE MECHANISM
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER ASSY,GEAR SFT | 13161 | 13161-042 | 1 | ||
| LEVER-ASSY-CHANGE | 13262 | 13242-1190 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 13242A | 13242-1191 | 1 | ||
| ROD-ASSY-TIE,CHANGE L | 39110 | 39110-1010 | 1 | ||
| BOLT,NEUTRAL POSITION | 92001 | 92001-1037 | 1 | ||
| BOLT,RETURN SPRING | 92001A | 92001-1401 | 1 | ||
| BOLT,HEX HEAD,10X26 | 92001B | 92001-174 | 1 | ||
| BOLT,CHANE PEDAL | 92002 | 92002-1773 | 1 | ||
| WASHER PLAIN 12MM | 92022 | 92022-072 | 1 | ||
| WASHER,8.3X21X5 | 92022A | 92022-1741 | 1 | ||
| WASHER,LOCK,10MM | 92022B | 92024-074 | 1 | ||
| PIN-NEUTRAL POSITION | 92043 | 92043-076 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92160-1036 | 1 | ||
| SPRING | 92081 | 92081-112 | 1 | ||
| SPRING,KICK PAWL | 92081A | 92083-018 | 1 | ||
| SPRING,CHANGE PEDAL R | 92144 | 92144-1074 | 1 | ||
| BOLT-FLANGED,6X20,BLA | 130 | 130S0620 | 1 |
