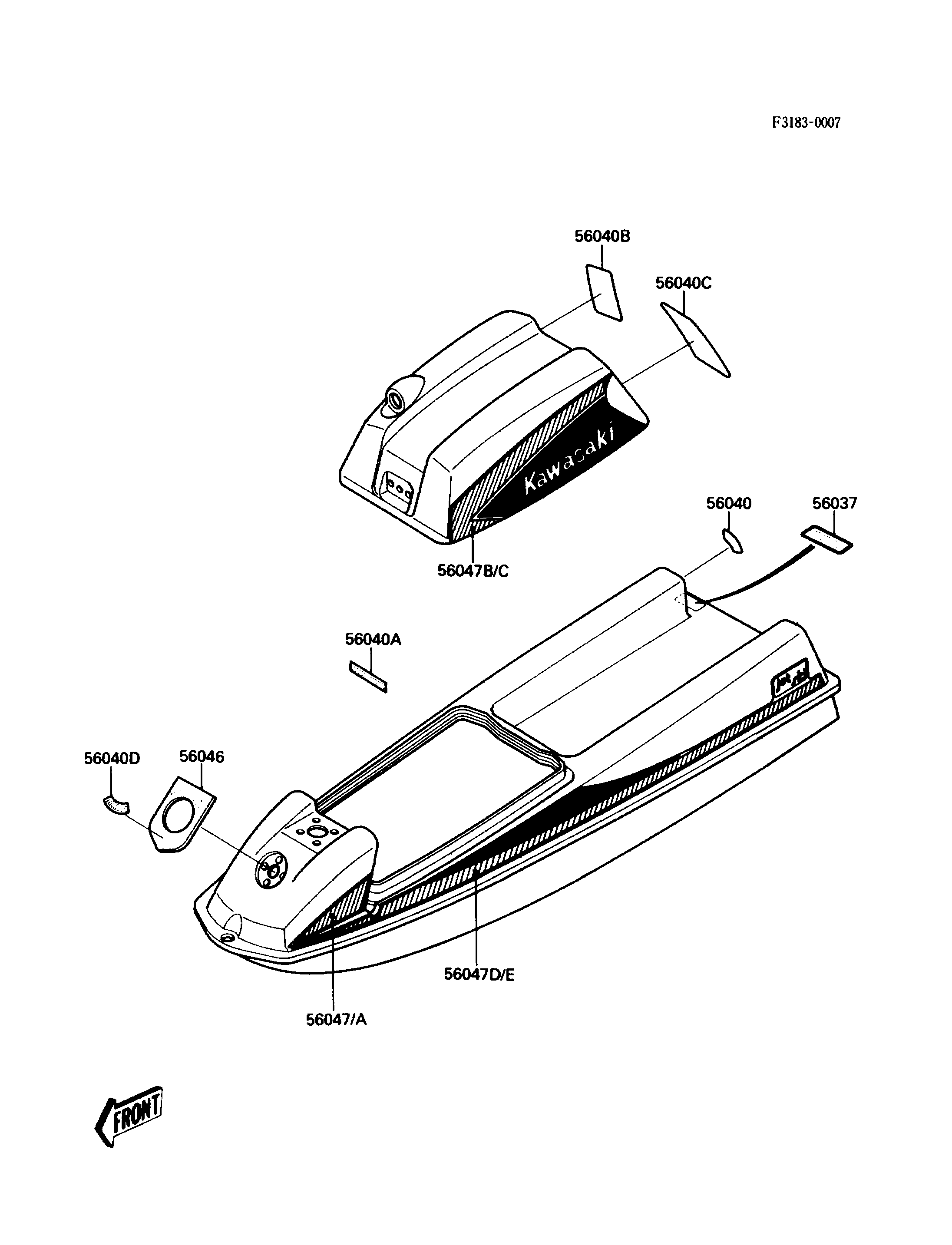

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56037 | 56022-506 | 1 | ||
| LABEL-WARNING,CAP | 56040 | 56040-3705 | 1 | ||
| LABEL-WARNING,OIL | 56040A | 56040-3709 | 1 | ||
| LABEL-WARNING,MAINTENANCE | 56040B | 56040-3731 | 1 | ||
| LABEL-WARNING,SAFETY | 56040C | 56040-3732 | 1 | ||
| LABEL-WARNING,BREAK-IN | 56040D | 56040-3733 | 1 | ||
| PATTERN,FRONT DECK,UPP | 56046 | 56046-1925 | 1 | ||
| PATTERN,FRONT DECK,LH | 56047 | 56047-1209 | 1 | ||
| PATTERN,FRONT DECK,RH | 56047A | 56047-1210 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56047B | 56047-1213 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56047C | 56047-1214 | 1 | ||
| PATTERN,REAR DECK,LH | 56047D | 56047-1957 | 1 | ||
| PATTERN,REAR DECK,RH | 56047E | 56047-1958 | 1 |
| LABEL,FIRE EXTINGUISHER | |
| REF # | 56037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,CAP | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,OIL | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAINTENANCE | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SAFETY | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BREAK-IN | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FRONT DECK,UPP | |
| REF # | 56046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FRONT DECK,LH | |
| REF # | 56047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FRONT DECK,RH | |
| REF # | 56047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,LH | |
| REF # | 56047B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RH | |
| REF # | 56047C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,REAR DECK,LH | |
| REF # | 56047D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,REAR DECK,RH | |
| REF # | 56047E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
